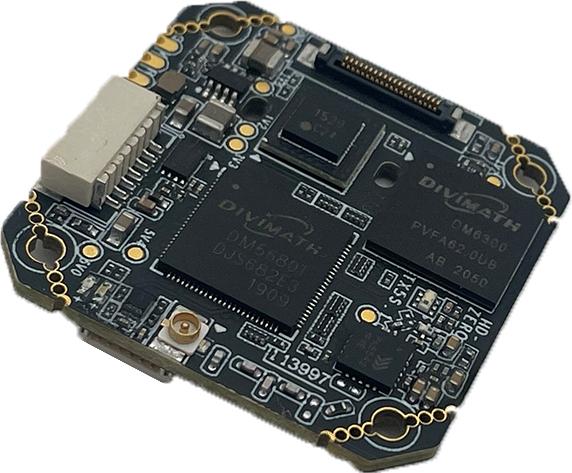

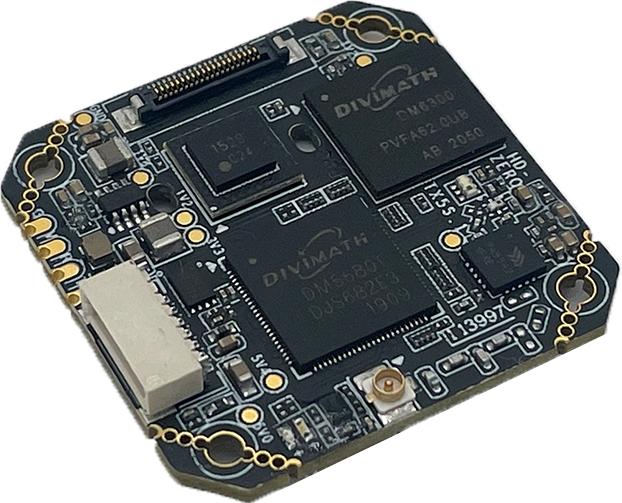

HDZero Whoop 2S-6S Digital Video Transmitter 32.5x32.5mm
|
Discontinued
|
![]() |
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
FEATURES
The HDZero Whoop VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. It works with the Shark Byte RX5.1 goggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera.
Specifications
Model: HDZero Whoop
Frequency: 5.8G
Resolution Default: 1280*720@60fps
RF power: 25mw/200mw
RF Connector: U.FL
Interface: 4 lane MIPI CSI YUV422
Video Connector: 20 Position 0.30mm Pitch
Size: 32.5mm x 32.5mm x 7mm
Weight: 5.4g
Power: 410mA@12V
Power Input: 7-26V(2S-6S)
Mounting: 25.5mm*25.5mm M2 clearance hole
Includes
1 - HDZero Whoop VTX
4 - Power/ Uart Cables
