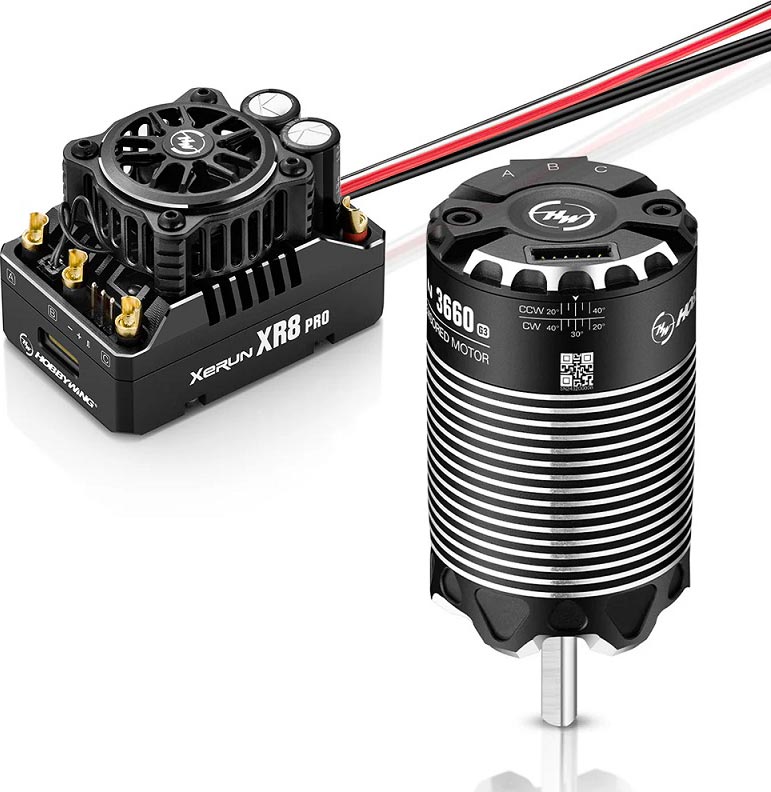

XeRun XR8 Pro G3 ESC & 3660SD 4200KV G3 Motor Combo (2-3S)
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
4200 KV RPM/Volt
Motor Kv:
4
Poles:
36.6 mm
Can Diameter:
60.1 mm
Can Length:
5 mm
Shaft Diameter:
18.5 mm
Shaft Length:
230 g
Weight:
2-3 cells
LiPo Cells:
11.1 V
Max Voltage:
200 A
Continuous Current:
1080 A
Peak Current:
6/7.4 V
BEC Output:
54.8 mm
ESC Length:
36.8 mm
ESC Width:
38.8 mm
ESC Height:
FEATURES
- The product features three common profiles that are suitable for all 1/8 Racing applications, allowing users to select and use them instantly. These profiles include Zero timing-Blinky mode, 1/8 Off-Road Racing mode, and 1/8 On-Road Racing mode.
- XR8 PRO G3 ESC offers 32 built-in adjustable parameters, providing flexibility to meet various power requirements. These parameters can be easily imported and exported, facilitating communication and learning among drivers.
- The ESC supports firmware upgrades, which can be done using the multi-function LCD G2 programming box, OTA Programmer, or Tunalyzer (available for purchase). This allows users to enjoy the latest functions and enhancements.
- With the built-in switch mode BEC, the ESC provides a maximum output of 12A and allows adjustable voltage options of 6V or 7.4V. This flexibility is ideal for usage with servos and other devices that require different voltage levels.
- The ESC includes a built-in reverse connection protection circuit, ensuring the ESC is protected from damage in case of reverse connection.
- The ESC features a data logging function, allowing users to view various running data through the HW LINK app using the OTA Bluetooth module. This provides valuable insights and analysis for performance evaluation.
