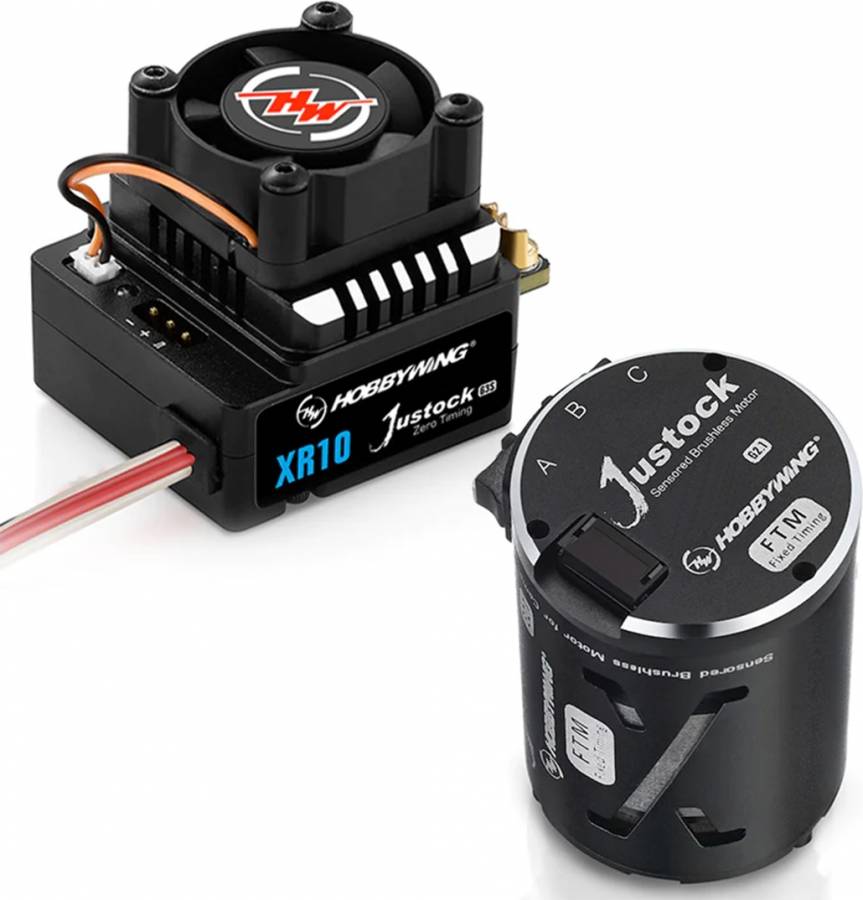

Xerun XR10 Justock GS3 ESC Justock G2.1 JS5 17.5T Motor Combo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
2450 KV RPM/Volt
Motor Kv:
17.5 T
Turns:
2
Poles:
35.9 mm
Can Diameter:
52.5 mm
Can Length:
3.17 mm
Shaft Diameter:
15 mm
Shaft Length:
176 g
Weight:
2 cells
LiPo Cells:
7.4 V
Max Voltage:
3.5 A
No-load Current:
157 W
Max Output Power:
47 A
Current @ Max Output:
60 A
Continuous Current:
380 A
Peak Current:
6/7.4 V
BEC Output:
40.9 mm
ESC Length:
33.9 mm
ESC Width:
32.1 mm
ESC Height:
75.4 g
ESC Weight:
088718516822 0088718516822
HWI38020372
