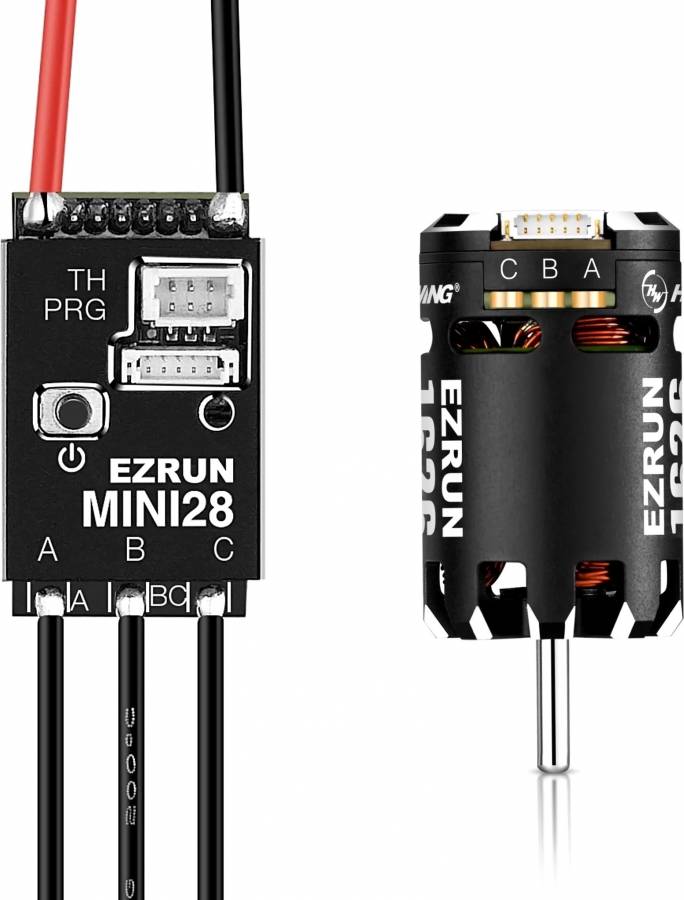

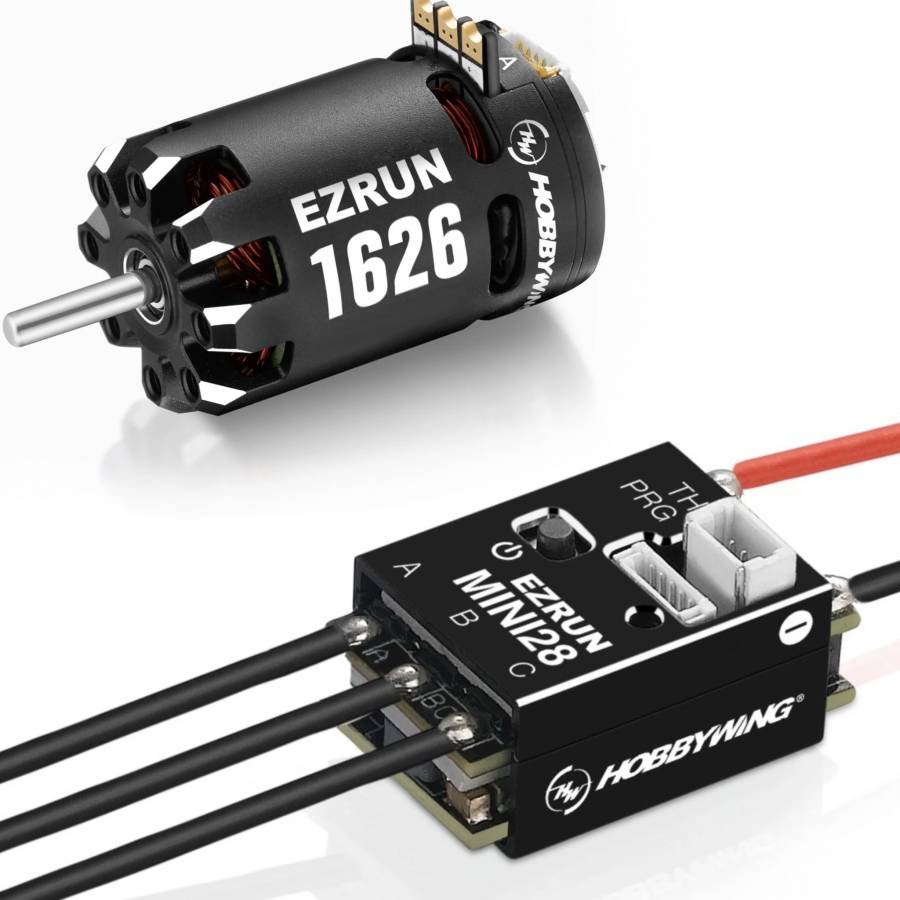

Combo EzRun Mini28 ESC & 1626 SD 5000KV

ESC Specifications:

• Part number: 30101300
• Technology: Brushless Sensored
• Waterproof: No
• Cont./Peak Current: 30A/80A
• Input Voltage: 2S Lipo
• BEC Output: 6V/7.4V @Max 3.5A
• Wires & Connectors: Input Wires: 20AWG-55mm *
• Output Wires: 22AWG-80mm *
• Size & Weight: 22.7x14.2x11.8mm | 5g (without wires)
• Applications: Motor: 1626 Size Motors; Vehicle: 1/28th and 1/27th
• ESC Programming: LCD G2 Program Box, OTA Programmer, Throttle Wire
• Firmware Upgrade: Supported

Motor Specifications:

• Model: Ezrun 1626-5000KV
• PN: 30402654
• Pole: 2
• KV: 5000KV
• No-load Current(A): 0.5A
• Input Voltage: 2S
• Diameter/ Length(mm): 16
• Shaft Diameter/ Length (mm): 26
• Applications: 1/28th Mini
• Weight: 18g

Features:

• Improved top speed / Precision response / High efficiency with the cool operation
• When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
• Zero cogging, consistent torque, and excellent low-speed response give an amazing feel and driveability
• Modular detachable structure, convenient for daily cleaning and maintenance.
