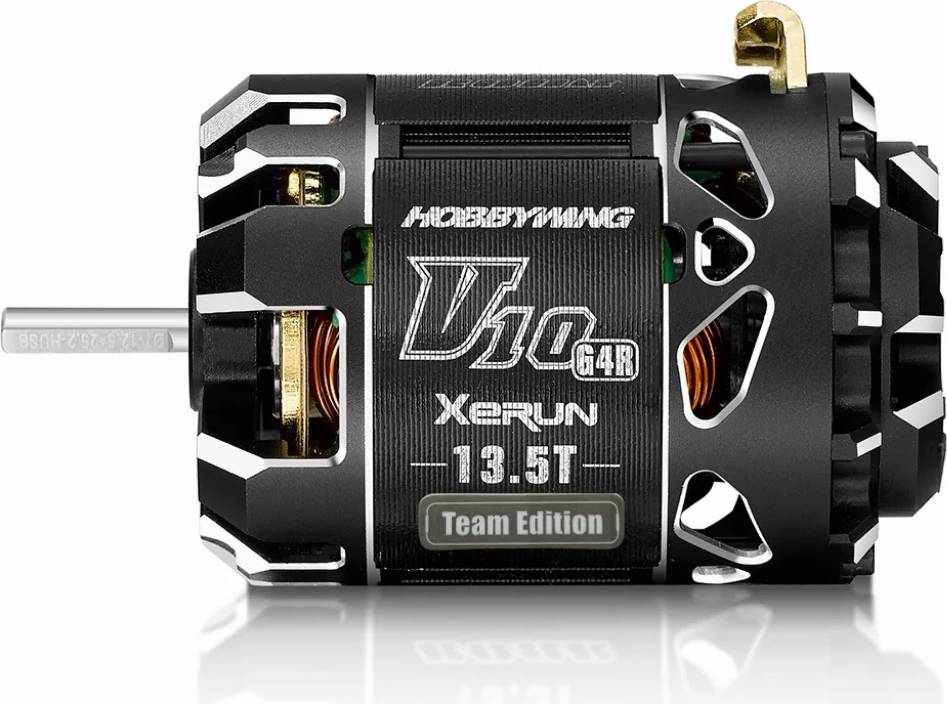

Xerun V10 G4R 13.5T Motor - Team Edition
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Electric Car Motors Brushless 1/10
But only from... HOBBYWING
All items from... HOBBYWING
But only from... HOBBYWING
All items from... HOBBYWING
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
4100 KV RPM/Volt
Motor Kv:
2
Poles:
35.8 mm
Can Diameter:
51.3 mm
Can Length:
3.175 mm
Shaft Diameter:
13.9 mm
Shaft Length:
158 g
Weight:
1-2 cells
LiPo Cells:
7.4 V
Max Voltage:
5.4 A
No-load Current:
297 W
Max Output Power:
70.7 A
Current @ Max Output:
FEATURES
- Race-proven performance tuned for 1/10 - 1/12 STOCK class dominance.
- Stay legal at ROAR-sanctioned events and tracks enforcing "ROAR Approved Motors" while enjoying enhanced cooling and performance from the open, non-epoxy design.
- Fully compliant and future-proof under current ROAR rules. This non-epoxy G4R version meets the updated ROAR spec motor requirements (no epoxy windings allowed starting September 1, 2025
- Built to the team's exact specifications with the pre-installed High Torque Tuning Rotor (the setup our race team and top event competitors use 99.9% of the time for superior punch, torque delivery, and consistency), delivering the edge you've seen on podiums without individual hand-tuning.
- Elite heat management for sustained power under pressure. Innovative fully exposed stator core maximizes heat dissipation surface area, combined with a large rear-end opening structure, ensuring cooler, more consistent runs during long mains and qualifying heats, with improved airflow thanks to the non-epoxy construction.
- Dual sensor port versatility for flexible wiring and layout options, accommodating any chassis or installation preference without compromise.
- User-friendly high-current solder tabs. Custom widened copper bar spacing makes soldering wires faster, cleaner, and more reliable—perfect for quick pit changes or precise builds.
- Precision linearity and smoothness. High-precision Hall sensors paired with a meticulously balanced, high-torque rotor deliver exceptional throttle feel, predictable power delivery, and zero cogging for total driver confidence and control.
- Built to dominate with premium components. High-performance stator core, 220°C high-temperature-resistant enameled wire, ultra-precise high-strength bearings, and heavy-duty copper solder tabs engineered for extreme current endurance, ensuring reliability and longevity in the toughest spec racing environments.
