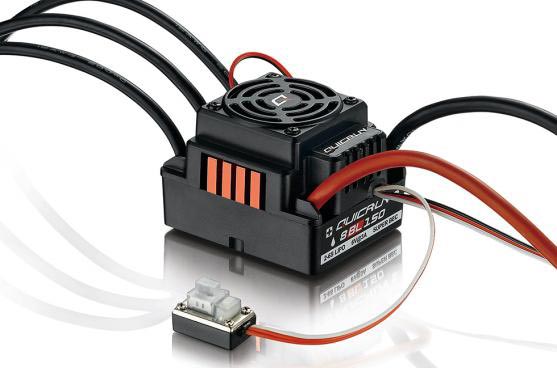

QuicRun 08BL150 Sensorless Waterproof Brushless ESC (1/8/SCT/MT)
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Car Electronic Speed Controls (ESC)
But only from... HOBBYWING
All items from... HOBBYWING
But only from... HOBBYWING
All items from... HOBBYWING
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
150 A
Max Continuous Current:
.035 mOhms
On Resistance:
178 g
Weight:
59 mm
Length:
48 mm
Width:
42 mm
Height:
3-6 cells
LiPo Cells:
9-18 cells
NiMH/NiCd Cells:
6V/3A Switching
BEC:
FEATURES
The QuicRun series of ESC offer great performance at an affordable price. The 08BL150 Sensorless ESC is suitable for 1/8 vehicles utilizing a 42mm motor suitably sized for the application. Waterproof and dustproof, the QuicRun series of ESC are built to last and from a well established name in RC motor control, HobbyWing
For 4S Lipo or 12 cells NiMH:
4274-size or smaller motor with the KV<3000
For 6S Lipo or 18 cells NiMH:
4274-size or smaller motor with the KV<2400
