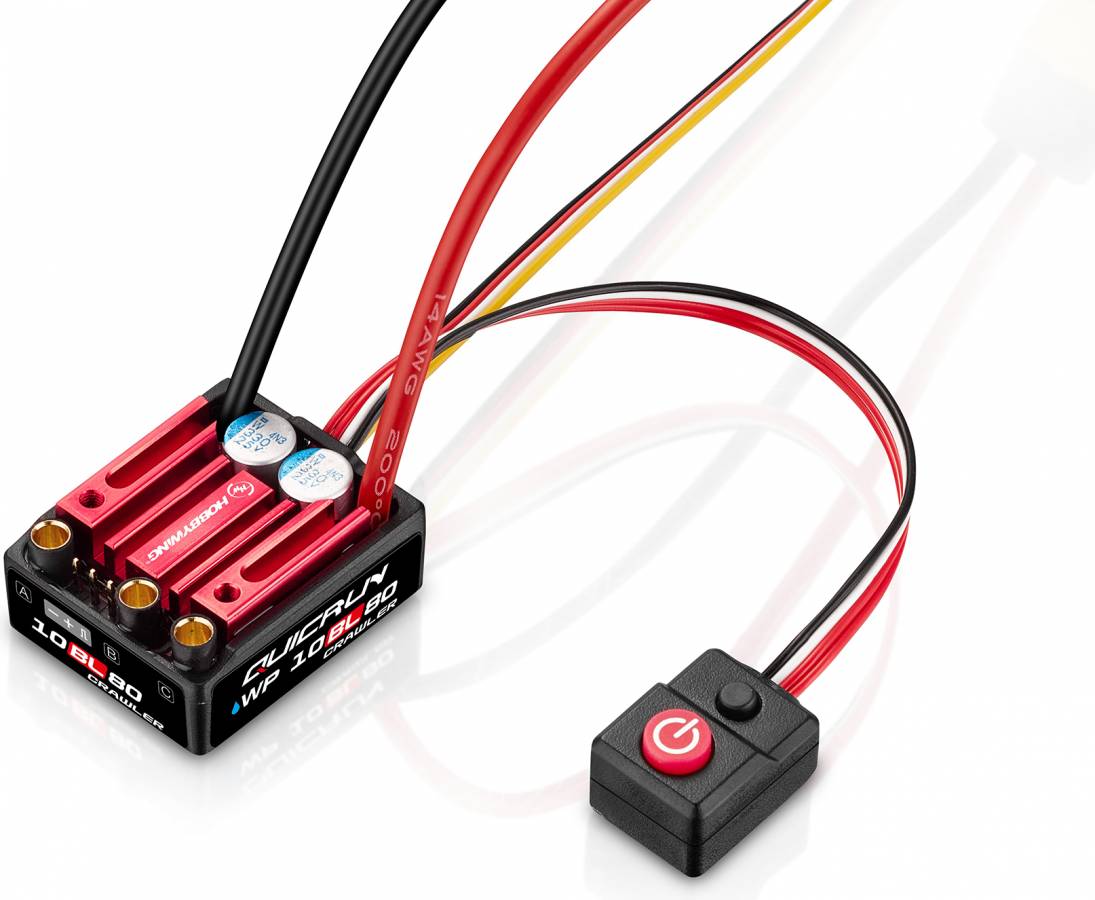

QuicRun WP 10BL80 ESC For Crawlers
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Car Electronic Speed Controls (ESC)
But only from... HOBBYWING
All items from... HOBBYWING
But only from... HOBBYWING
All items from... HOBBYWING
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
1/10 Crawler
Type:
No
Sensored:
80 A
Max Continuous Current:
240 A
Max Burst Current:
2-4 cells
LiPo Cells:
36 mm
Length:
30 mm
Width:
15.5 mm
Height:
XT60
Battery Connector:
FEATURES
What's in the box
- 1x WP 10BL80 Crawler ESC
- Factory-installed XT60 plug
- 1x Decal and Manual
- 1x Heatshrink kit, double-sided tape, and zip ties.
Features:
- It supports Sensorless Brushless motors & Brushed Motors.
- Compatible with most brushed or brushless motors on the market.
- Fully waterproof design for all conditions.
- Super internal switch-mode BEC with switchable voltage of 6V/7.4V/8.4V for usage with high torque and high voltage servos.
- Separate programming port to easily connect the LED program box or the LCD program box pro to the ESC.
- Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, and fail safe (throttle signal loss protection).
- It has the function of using transmitter (AUX channel) to adjust the drag brake force in real time
click image to enlarge

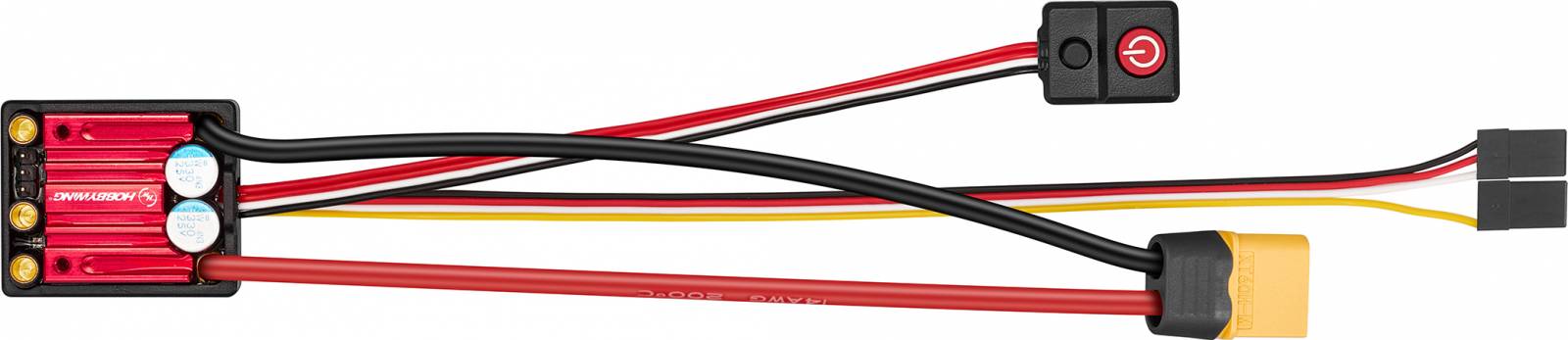

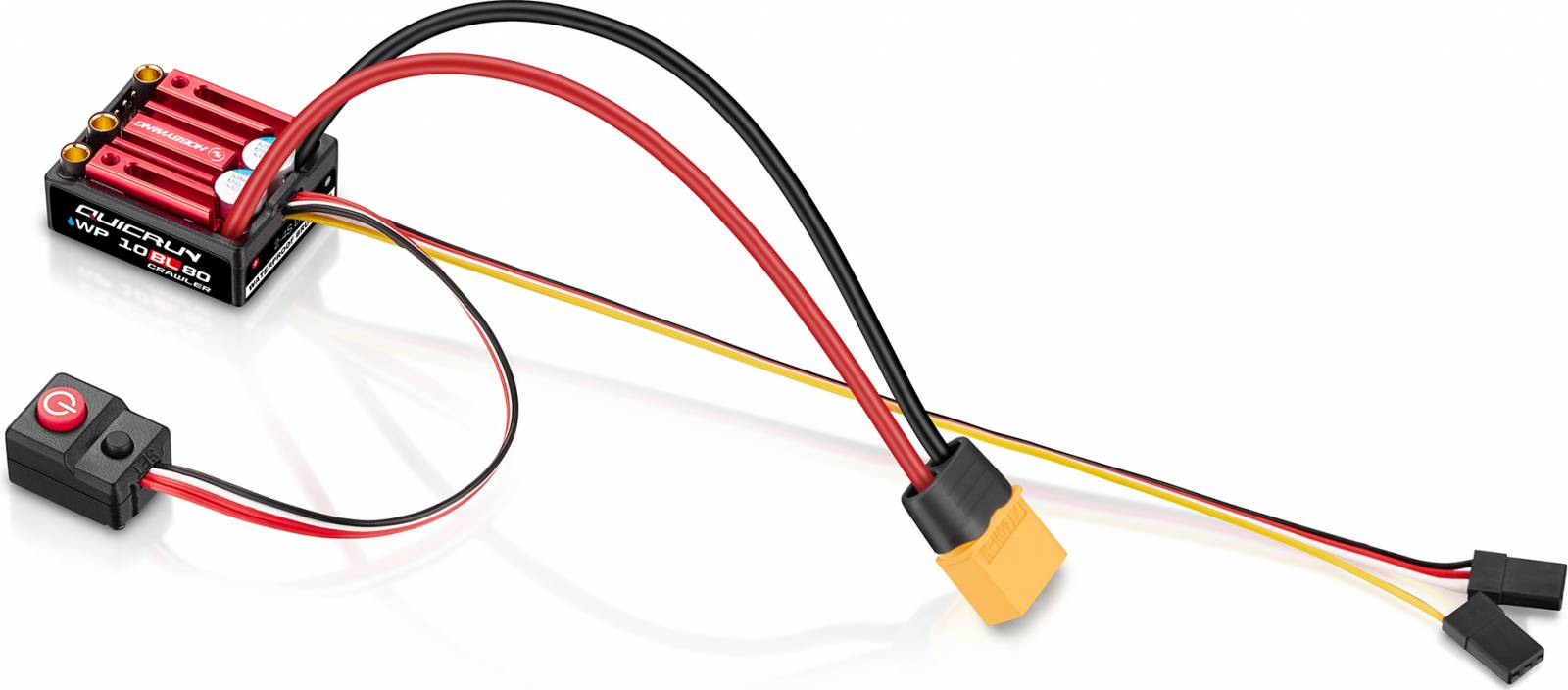

ADDITIONAL PHOTOS
|
|
