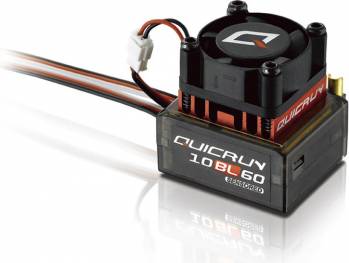

QuicRun 10BL60 Sensored Waterproof ESC Compact 1/10
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Car Electronic Speed Controls (ESC)
But only from... HOBBYWING
All items from... HOBBYWING
But only from... HOBBYWING
All items from... HOBBYWING
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
60 A
Max Continuous Current:
.8 mOhms
On Resistance:
59 g
Weight:
33 mm
Length:
28 mm
Width:
31.5 mm
Height:
2-3 cells
LiPo Cells:
4-9 cells
NiMH/NiCd Cells:
FEATURES
The QuicRun series of ESC offer great performance at an affordable price. The 10BL60 Sensored Compact ESC is suitable for 1/10th Touring Car/Buggy/F1/Drift vehicles utilizing a sensored 36mm motor suitably sized for the application. Offering a compact size and light weight design. Waterproof and dustproof, the QuicRun series of ESC are built to last and from a well established name in RC motor control, HobbyWing
2S Lipo or 4-6 cells NiMH:
≥8.5T(1/10 On-road),
≥13.5T(1/10 Off-road) *Note
3S Lipo or 8-9 cells NiMH:
≥13.5T(1/10 On-road),
≥17.5T(1/10 Off-road) *Note
*For up to 13.5T 1/10 On-road and 17.5T 1/10 Off-road is for ESC timing set to 0. The larger the timing value, the more turns the motor needs to avoid excessive current draw
