HAN4720CR

Ki-43 Oscar 60cc ARF w/H9 Main Retract Set

Product Info | Replacement Parts
HANGAR 9

HAN4720CR
Ki-43 Oscar 60cc ARF w/H9 Main Retract Set
By HANGAR 9
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... ARF Scale R/C Aircraft Giant Scale
But only from... HANGAR 9
All items from... HANGAR 9


 Inventory Status Legend
StockStock availability for on-line ordering
0
$1,699.99
Warehouse ?
StockStock availability for pick up
0
$1,699.99
Warehouse ?
0
$1,699.99
Store - Stratford ?
0
$1,699.99
Store - Edmonton ?
0
$1,699.99
Store - Mississauga ?
0
$1,699.99
Store - Ottawa ?
0
$1,699.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Ki-43 60cc Retracts & Struts
$419.99

Ki-43 60cc Fuselage w/Hatch
$519.99

Ki-43 60cc Top Hatch
$149.99

Ki-43 60cc Pushrod Set
$29.99
Ki-43 60cc Fuel Tank
$36.99

Ki-43 60cc Scale Details
$129.99

SPECIFICATIONS
88 in
Wingspan:
1327 sq in
Wing Area:
43.43 oz/sq ft
Wing Loading:
74.5 in
Length:
24 - 28 lbs
Weight:
8 or more Channels
Radio Requirements:
(1) Full-range, 8+ channel transmitter and receiver
Receiver Requirements:
(9) Standard-size, High-Torque servos (8 for an electric power version)
Servo Requirements:
50–60 cc
Gasoline Engine Requirements:
50-60 cc equivalent
Brushless Motor Requirements:
120A 12S ESC
ESC Requirements:

FEATURES
  • Expertly constructed with lightweight, laser-cut balsa and plywood

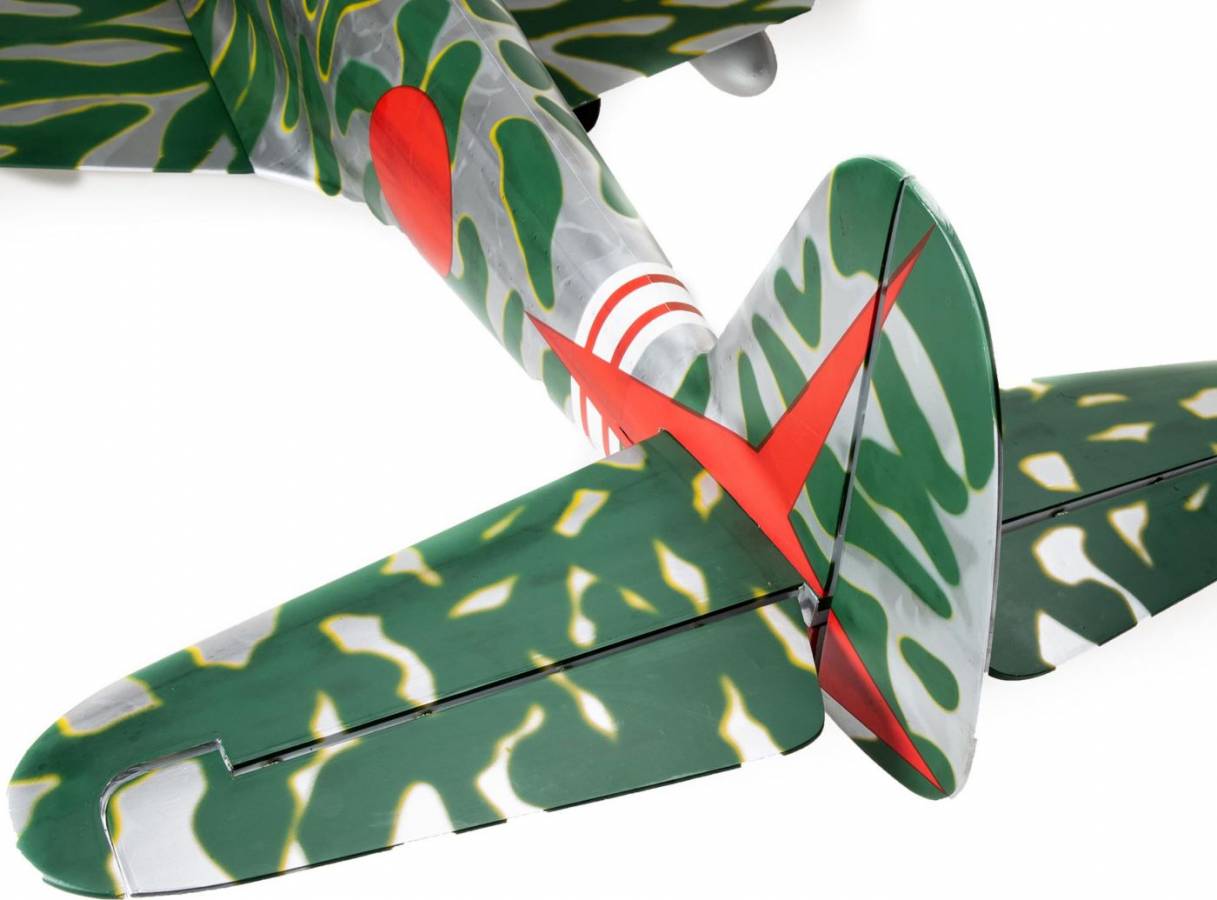

  • Satin-finish printed covering includes rivets, panel lines and weathering
  • Two-piece plug-in wings with aluminum tube allows for easy transportation and storage
  • Fiberglass cowl features panel lines and internal screws for scale authenticity

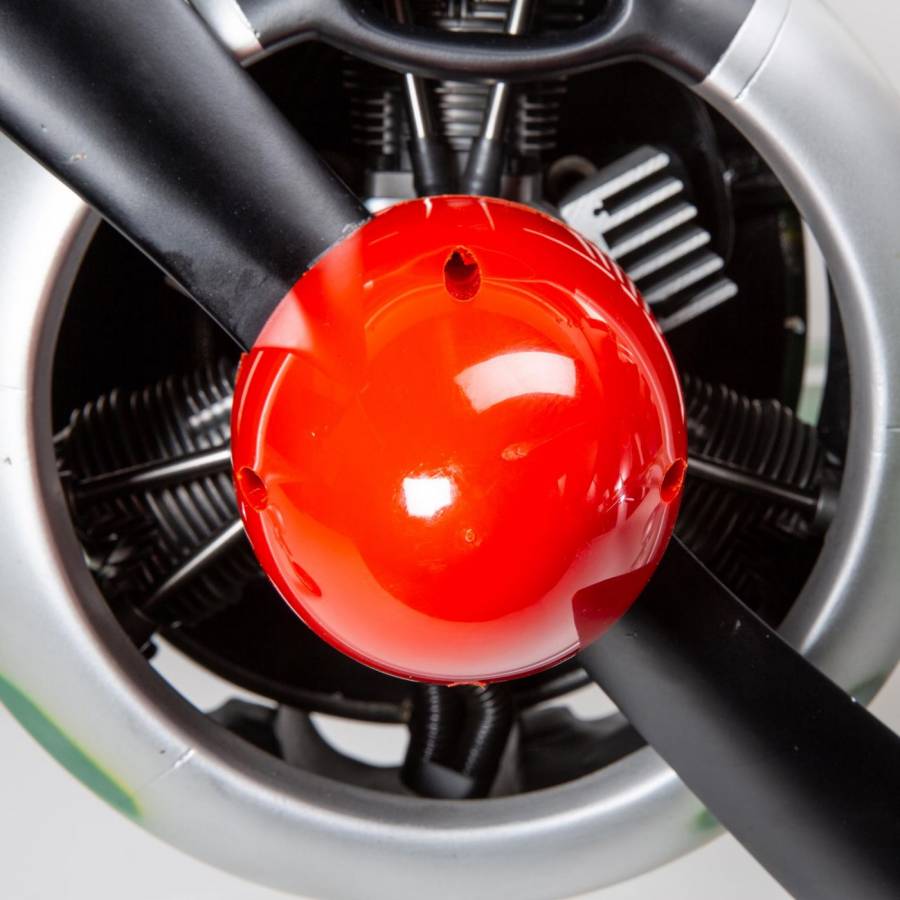

  • Unpainted scale replica radial engine included
  • Heavy-duty aluminum shock-absorbing struts included
  • Scale shaped spinner included

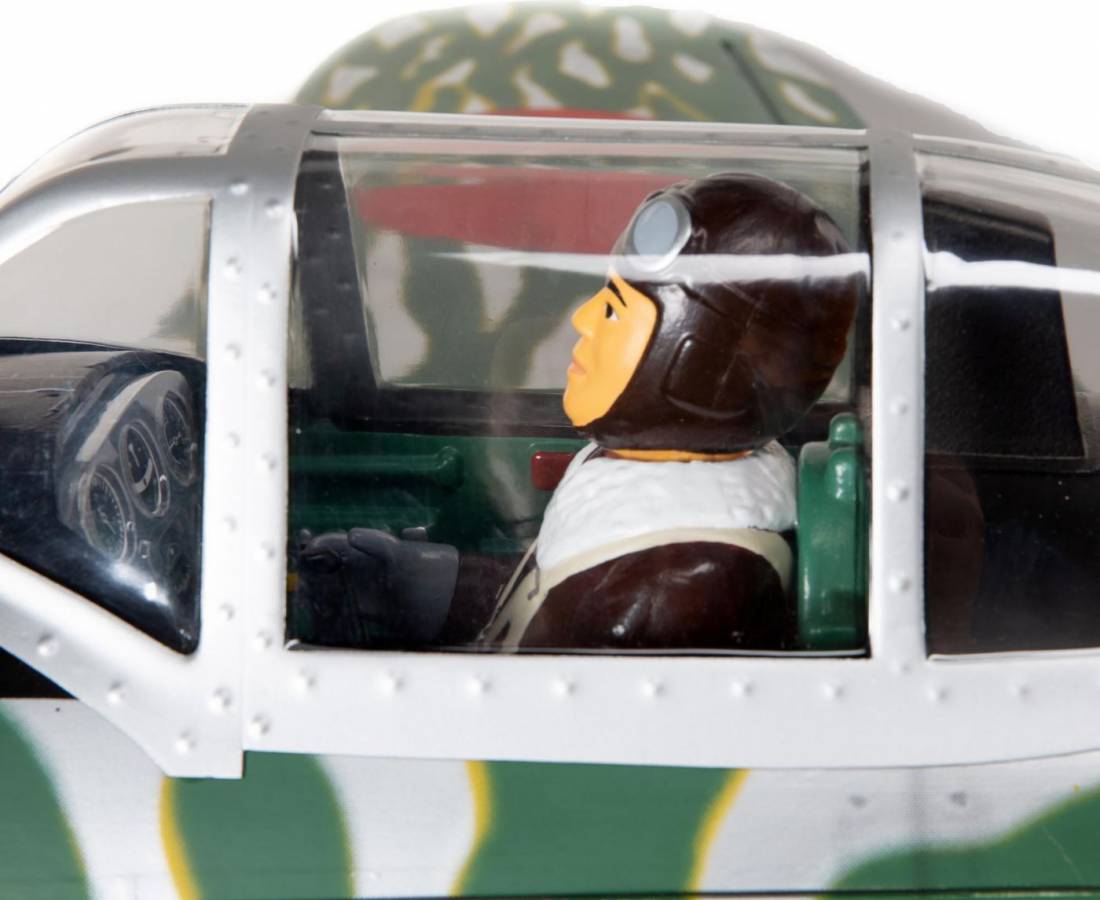

  • Detailed cockpit includes a 3D instrument panel, expertly painted pilot bust, and more
  • Tool-free assembly makes getting in the air quicker
  • Scale-shaped split flaps deploy using internal linkages for an authentic appearance
  • Includes 2 easily removable scale wing drop tanks

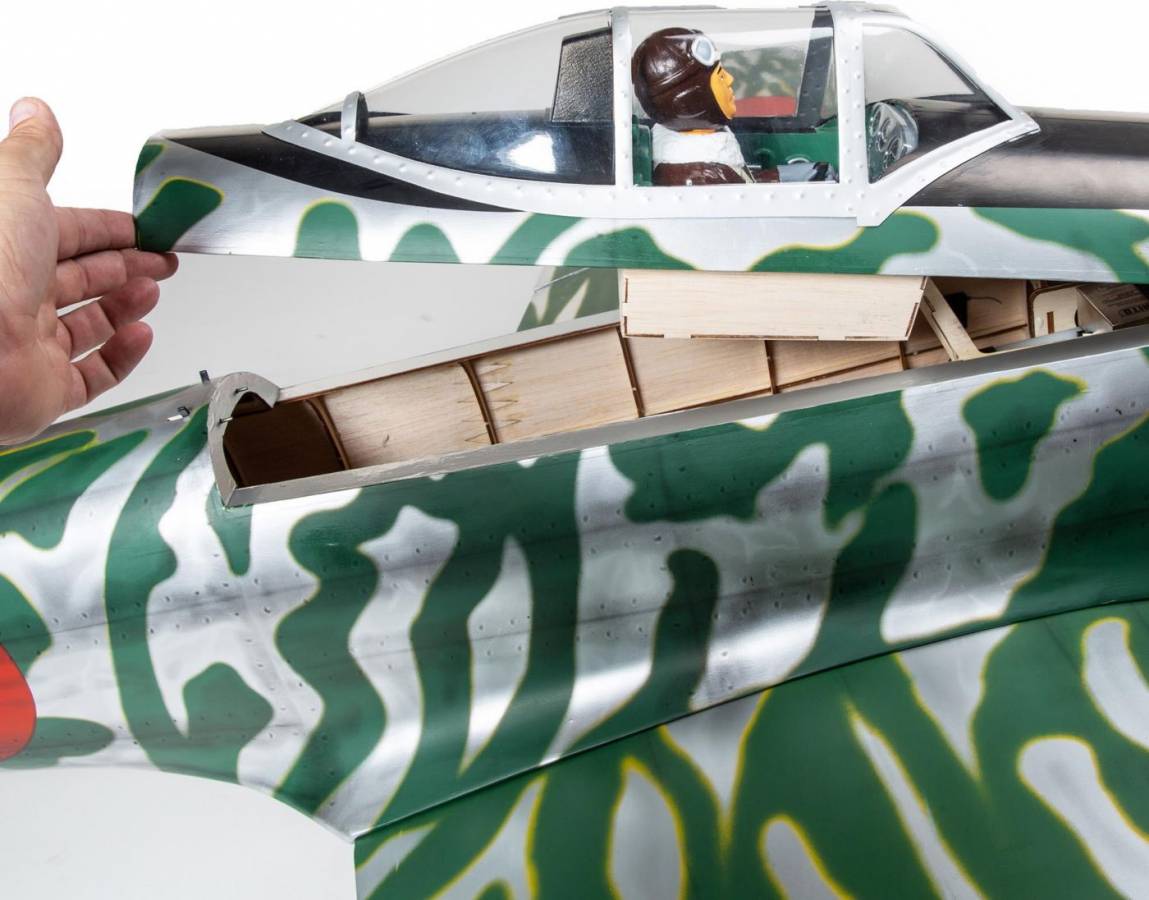

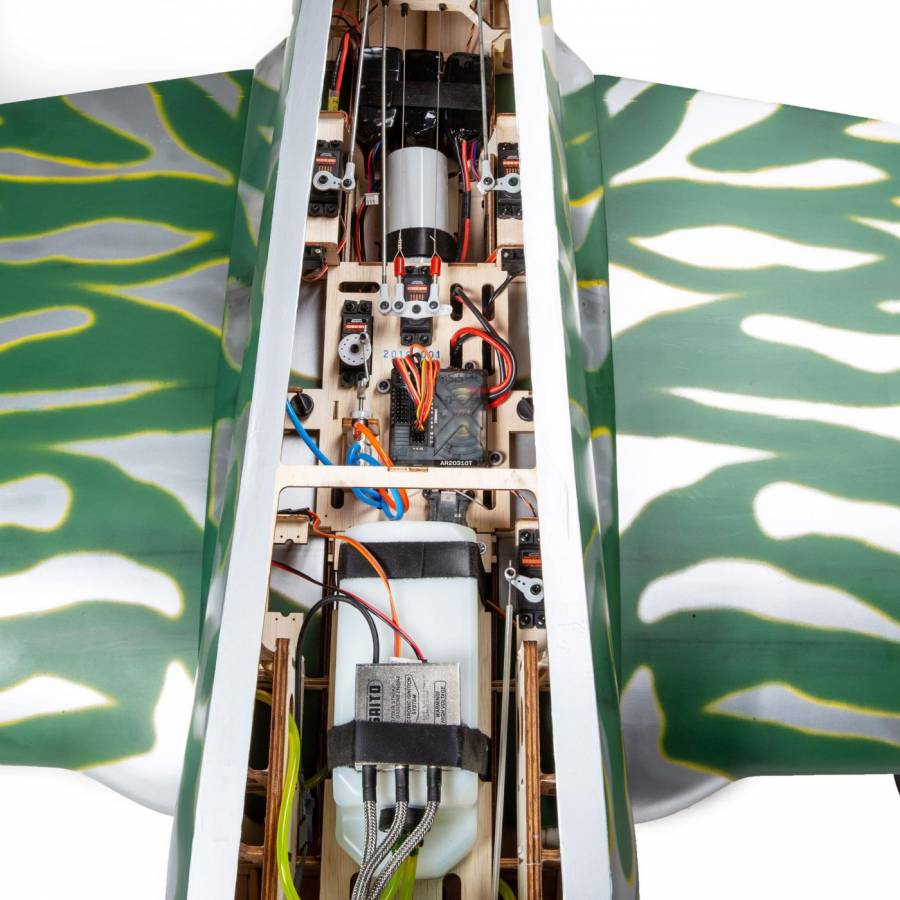

  • Large top-hatch with two sprung latch system offers complete access to electronics and fuel system
  • Scale landing gear doors included
  • Includes 5" wheels with scale hubs

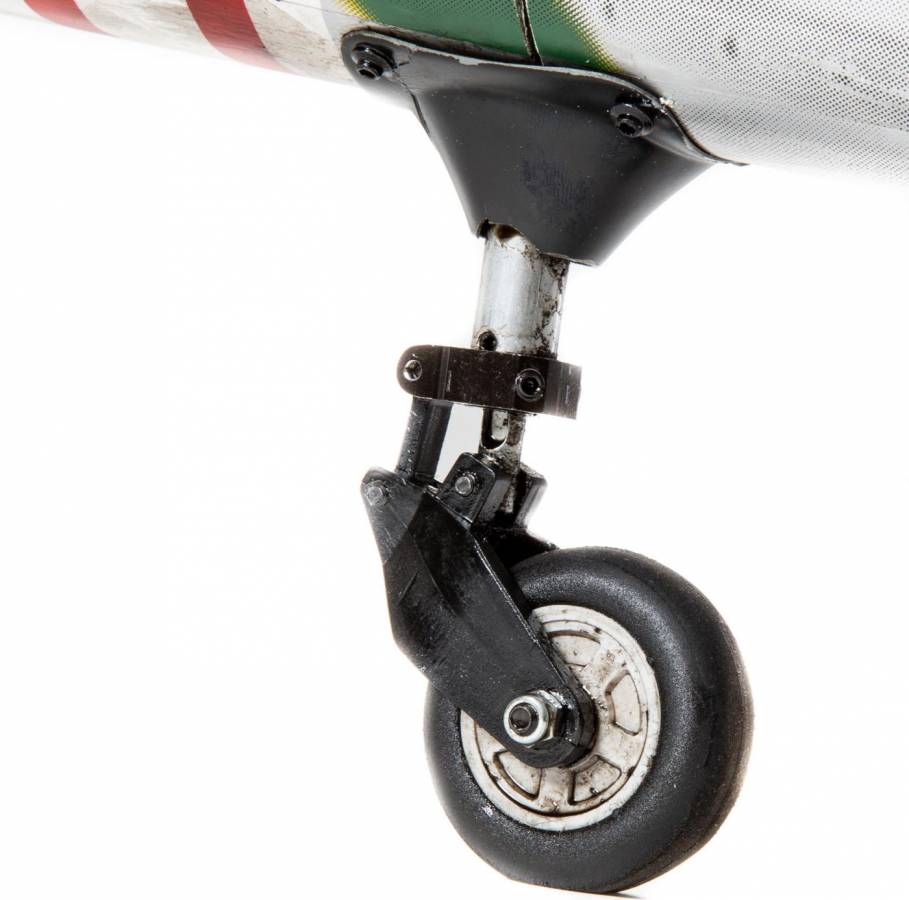

  • Sprung aluminum tail gear included
  • Hangar 9 pneumatic scale main retracts included with this combo
  • Designed to fit the Saito FG-90R3 3-cylinder engine and other popular 2-stroke gasoline engines

 Introduction

Often mistaken during aerial combat with the more well-known Mitsubishi "Zero," the Nakajima Ki-43 was designated "Oscar" by Allied forces. Extraordinarily maneuverable with fast climbing capabilities, the Oscar wreaked havoc across the Pacific theater. Its long range and incredible performance made it virtually untouchable especially compared to the P-51 Mustang. The Hangar 9® Ki-43 Oscar 50-60cc 88" ARF brings this nimble warbird to life in a convenient scale model with unbeatable authenticity.

Designed for warbirds and club pilots alike, the new Hangar 9® Ki-43 Oscar is an almost ready to fly 60cc giant scale World War II Japanese aircraft delivering an authentic warbird experience. Featuring scale details typically not found on other ARF aircraft, this incredible replica has outstanding flying characteristics that Hangar 9 warbirds are known for around the world. One of only two Hangar 9 giant scale warbirds with satin-finish printed covering, the Ki-43 Oscar also includes panel lines, rivets and weathering. Additionally, many scale details are incorporated such as 3D instrument panel, pilot bust, 5" scale wheels, and more. The two-piece plug-in wings with aluminum tube allows for easy transportation to the flying field and storage. Scale sprung main pneumatic retracts are included in this special offer combo. Whether this is your first warbird, or the perfect counterpart for your collection, the Hangar 9® Ki-43 Oscar 50-60cc 88" ARF is the most unique model in our line of 50cc-60cc giant scale warbirds.

Needed to Complete

  • (1) 50–60cc, two or four-stroke gas/petrol engine or equivalent electric motor system
  • (9) Standard-size, High-Torque servos (8 for an electric power version)
  • (1) Full-range, 8+ channel transmitter and receiver
  • (1) Battery for receiver
  • (1) Battery for engine ignition
  • (1) Propeller
  • Tools and adhesives (see manual for more details)

What's in the Box?

  • (1) Ki-43 Oscar 50-60cc ARF
  • (1) Ki-43 Oscar 50-60cc Pneumatic Main Retracts
  • (1) Product Manual

Lightweight Construction

Laser-cut, lightweight balsa and plywood construction is utilized to bring the Ki-43 Oscar to life as a durable scale model that's expertly built to exacting standards.

Exquisite Scale Details

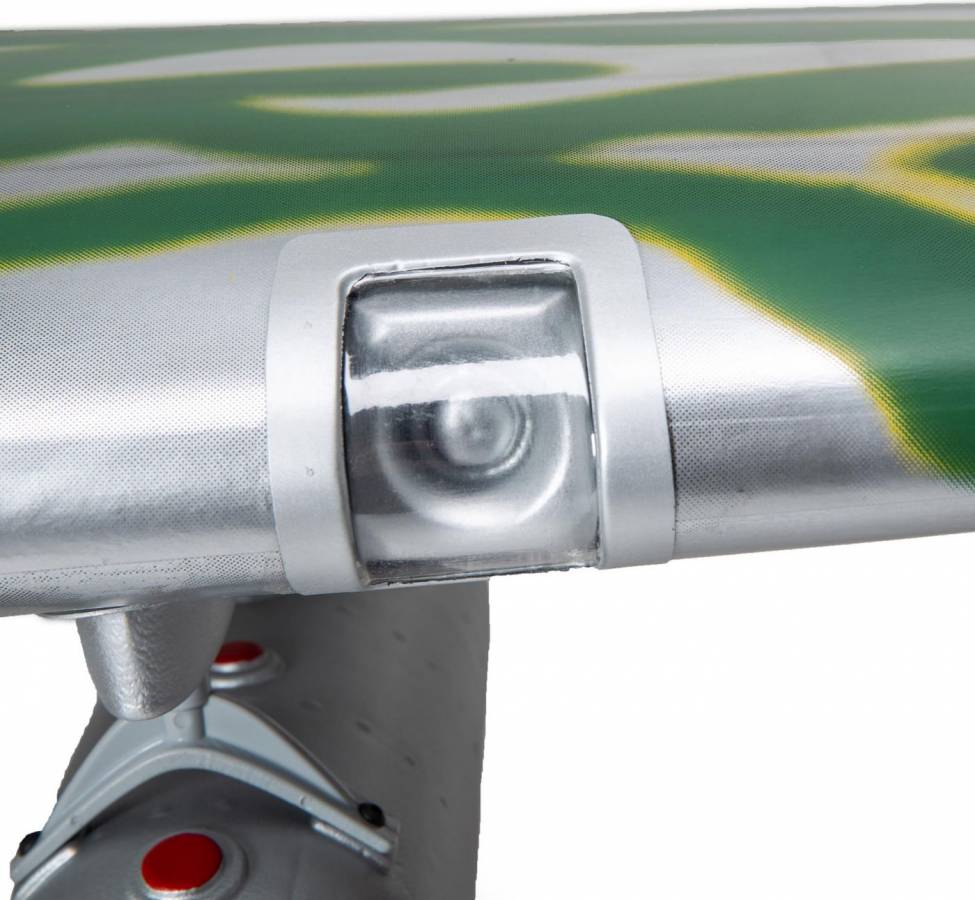

This Hangar 9 warbird features a satin-finish printed covering including panel lines, rivets and weathering. Additionally, other iconic details include 5-inch scale wheels, a 3D instrument panel and a painted pilot figure—just to name a few.

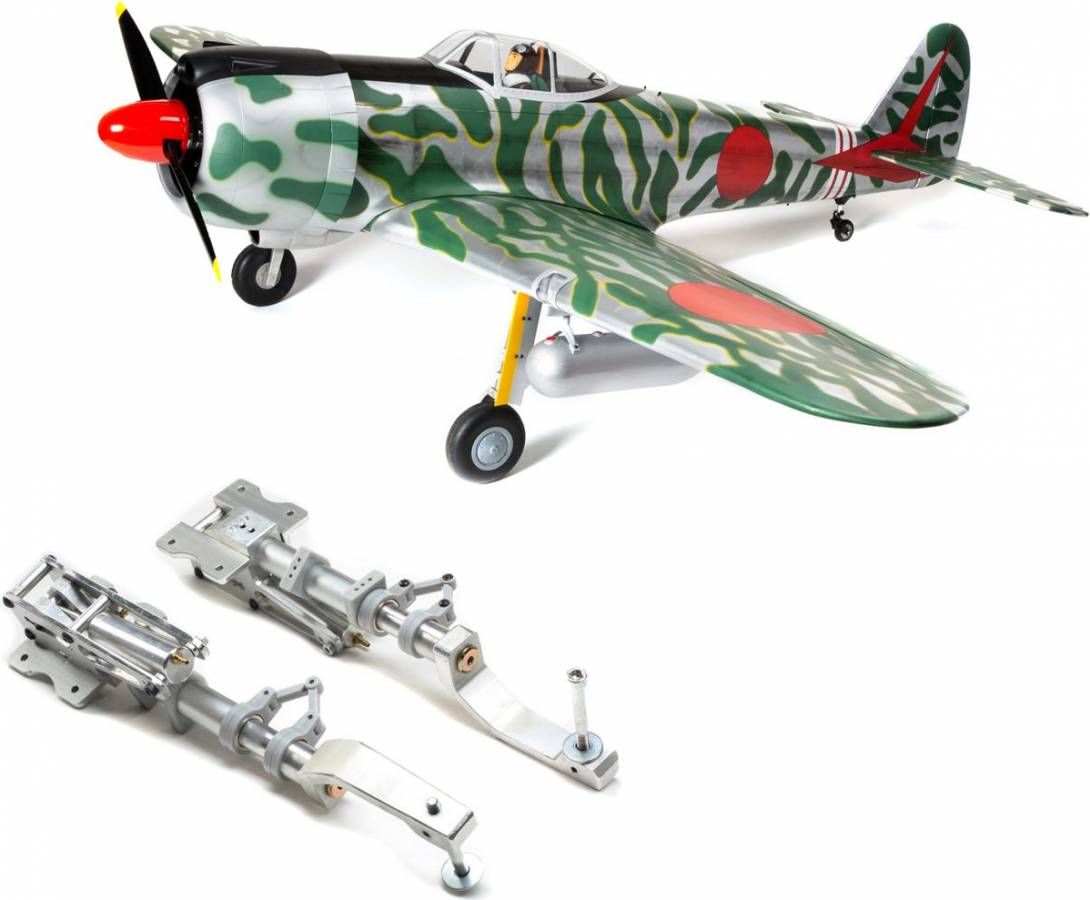

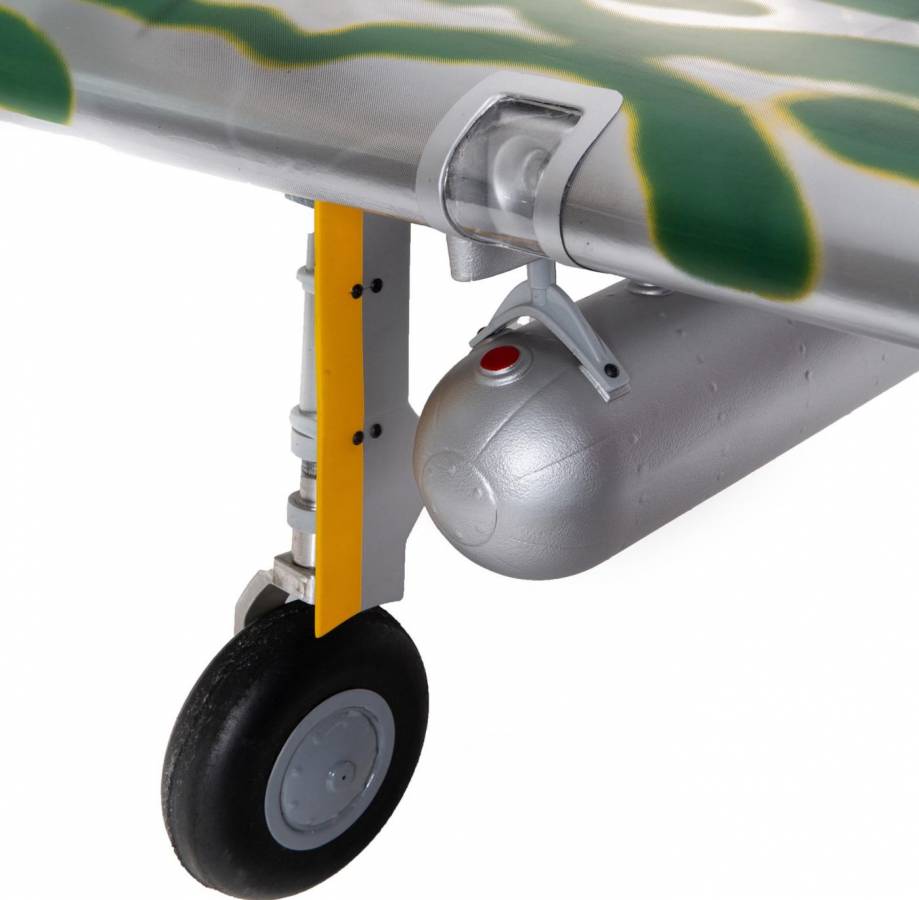

Hangar 9 Retracts Included With Combo

The Hangar 9® pneumatic retract system included in this special offer combo accepts the struts, feature all-metal durability and are an easy installation that lets you take in-flight scale realism to a higher level.

Power It The Way You Want It

The Ki-43 Oscar is designed to accept the Saito FG-90R3 3-cylinder engine and other popular 2-stroke gasoline engines. All hardware for the recommended power system options is included so assembly is easy and so you can get in the air faster. Plus the included spinner makes it easy to complete the scale outline.

Distinctive Subject Matter

The Ki-43 Oscar 60cc is a remarkable replica and most unique ARF in Hangar 9 line of 50-60cc giant scale warbirds. The Ki-43 Oscar is every bit the stunner its full-scale inspiration is.
