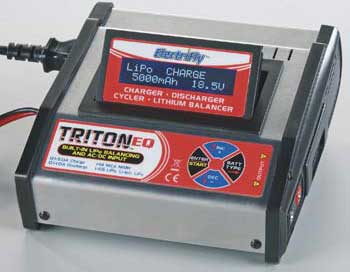

Triton EQ AC/DC Charger/Balancer
RESOURCES
Manual/Diagram
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
 |
More like this... Battery Chargers, Multi-Chemistry
But only from... GREAT PLANES
All items from... GREAT PLANES
But only from... GREAT PLANES
All items from... GREAT PLANES
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
SPECIFICATIONS
0.1-16.8 V
NiMH/NiCd Cutoff Voltage:
NiCd/NiMH 1.5 hours
Li-Po 3-hours or turn off.
Fast Charge Safety Timer:
Li-Po 3-hours or turn off.
Peak Detection for NiCd/NiMH
cc/cv for Pb and L
Fast Charger Termination:
cc/cv for Pb and L
0.1 - 5.0 A
Fast Charge Current:
1-6 Cells
Li-Po Cells:
2-12 V
Pb:
1-14 Cells
NiCd/NiMH Cells:
11-15.0V DC with large aligator clips
DC Input:
110-240 V
AC Input Voltage:
3.0V per cell
Li-Po Discharge Cutoff:
2.5V per cell
LiFe Discharge Cutoff:
1.8V
Pb Discharge Cutoff Voltage:
1
Battery Memories:
4-button membrane touch pad
Programming controls:
2x16 reverse LCD w/backlight
Display Type:
beeper
Aduible indicators:
aluminum, ABS plastic
Case Material:
solid-state reverse polarity and overload
Safety Devices:
5.9 x 6.0 x 2.3 in
Case Size:
23.8 oz
Weight:
current/20
NiMH/NiCd Trickle Current:
8mV NiCd/5mV NiMH
NiMH/NiCd Peak Sensitivity:
3 minutes
Peak Delay at Start:
5mV per cell
Lithium Balancing Accuracy:
FlightPower and ElectriFly adapters included
Balancing Connector:
300mA
Maximum Node Current:
FEATURES
- Fast charge current is adjustable from 100mA to 5 amps
- Peak detection technology for NiCd and NiMH batteries
- Constant current / constant voltage technology for lithiums and lead-acid batteries
- NiCd and NiMH trickle current
- Discharge current adjustable from 100mA to 1 amp
- Discharge cutoff voltage adjustable for NiCd/MH batteries
- NiCd and NiMH batteries can be cycled from 1 to 5 times for conditioning
- Touchpad controls and super-simple programming make for simplicity and reliability
- Displays input and output volts, peak volts, individual lithium cell voltages, avg dsch volts, chg and dsch capacity, currents and time, error messages, and more
- Audible beeper aids in programming and notifies of function changes
- Safety features include fast charge safety timer, current overload and reverse polarity protection

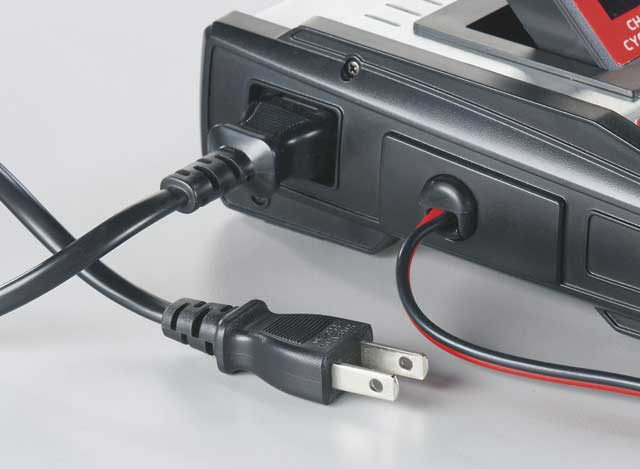

- DC input makes the Triton EQ portable, a small, very lightweight, built-in switching AC power supply makes it handy for indoor charging as well.

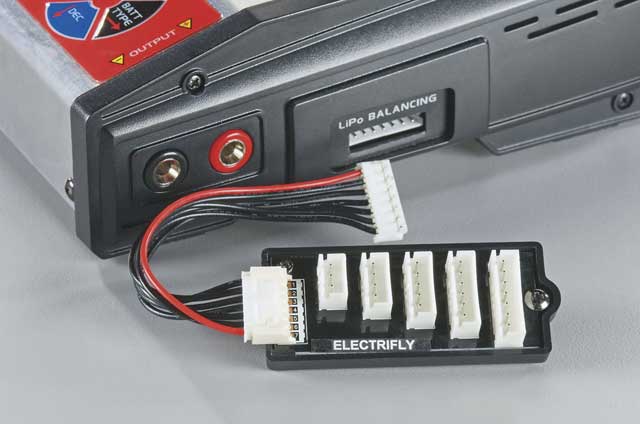

- Balancing capability for up to 6S lithium packs is built in, so it's equally useful for the smallest indoor fliers as well as big outdoor aircraft.

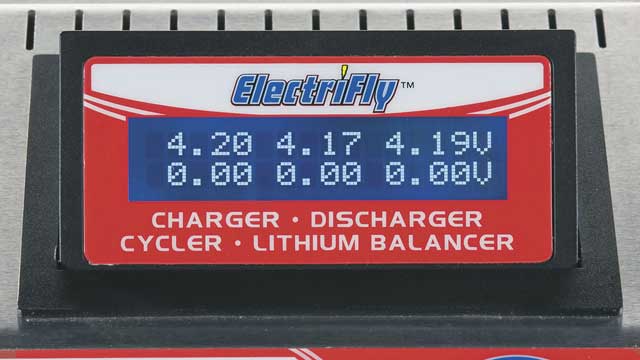

- Not only is the LCD reversed with a backlight, it also features a 0-45 degree adjustable view angle for easy reading.
Just because a charger is small and affordable doesn't mean it can't still handle many of your charging needs -- the Triton EQ is proof! Based on the Triton Jr., the Triton EQ offers the capability to handle the latest battery technologies, including LiPo, Li-Ion and even LiFe (A123) cells -- and there's no need for an external LiPo balancer, because it's built in. The Triton EQ can also charge 1-14 NiCd and NiMH cells -- great for radio batteries -- with charge currents up to 5 amps to handle large power packs. And that's in addition to the convenience of a built-in AC power supply and an adjustable-angle LCD!
Please note that this charger will not charge at 5.0amps with all battery sizes.click image to enlarge
