This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
525 mm
Length:
230 mm
Width:
213 mm
Height:
313 mm
Wheelbase:
2+ Channel
Radio Requirements:
Steering Servo
Servo Requirements:
2+ Channel
Receiver Requirements:
540 type
Motor Requirements (brushless):
to suit motor
ESC Requirements:
7.2V NiMh or 2S LiPO
Battery Requirements:
To suit battery
Charger Requirements:
145 x 33 mm
Battery Tray Dim:
FEATURES

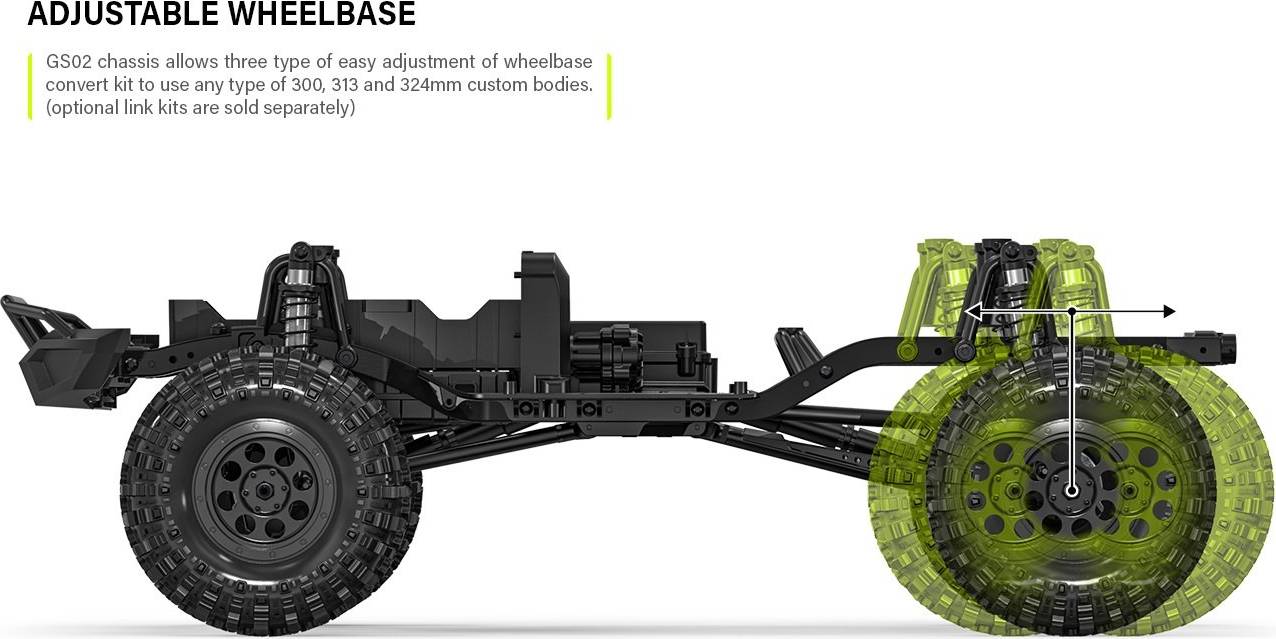

Adjustable Wheelbase (with optional parts)
Stealth Body Mount System
Aluminum SD Scaler Shocks
Chassis Mounted Servo
Torque Twist Reducing Design
Forward Weight Design

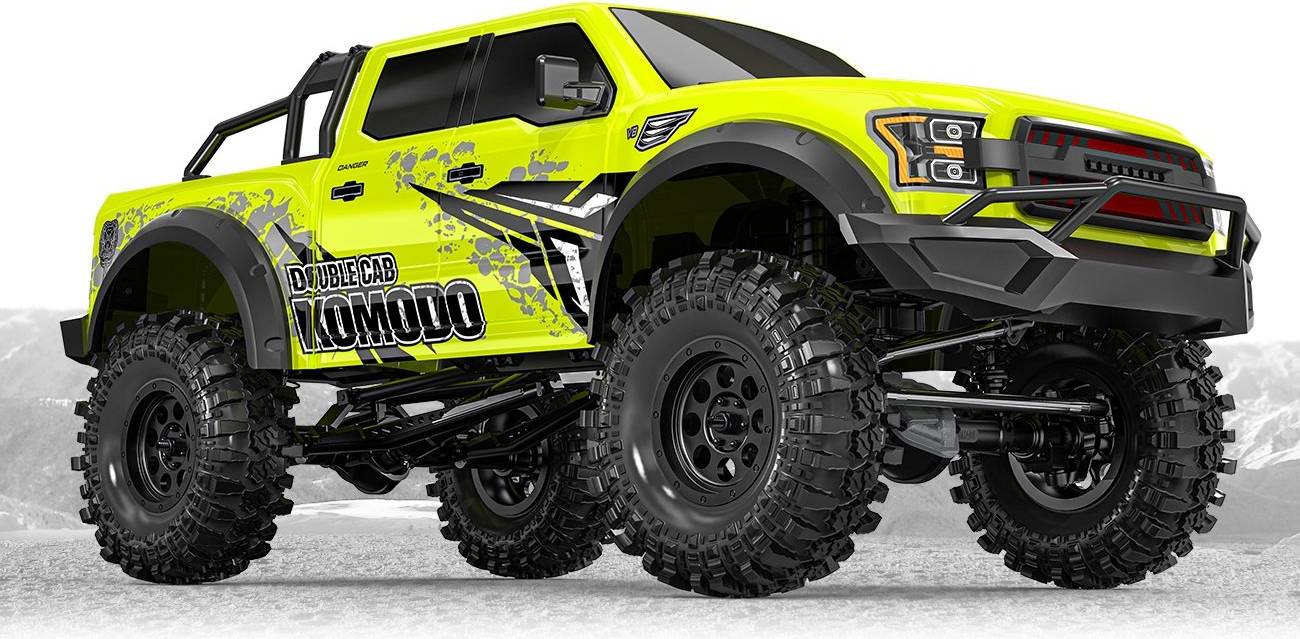

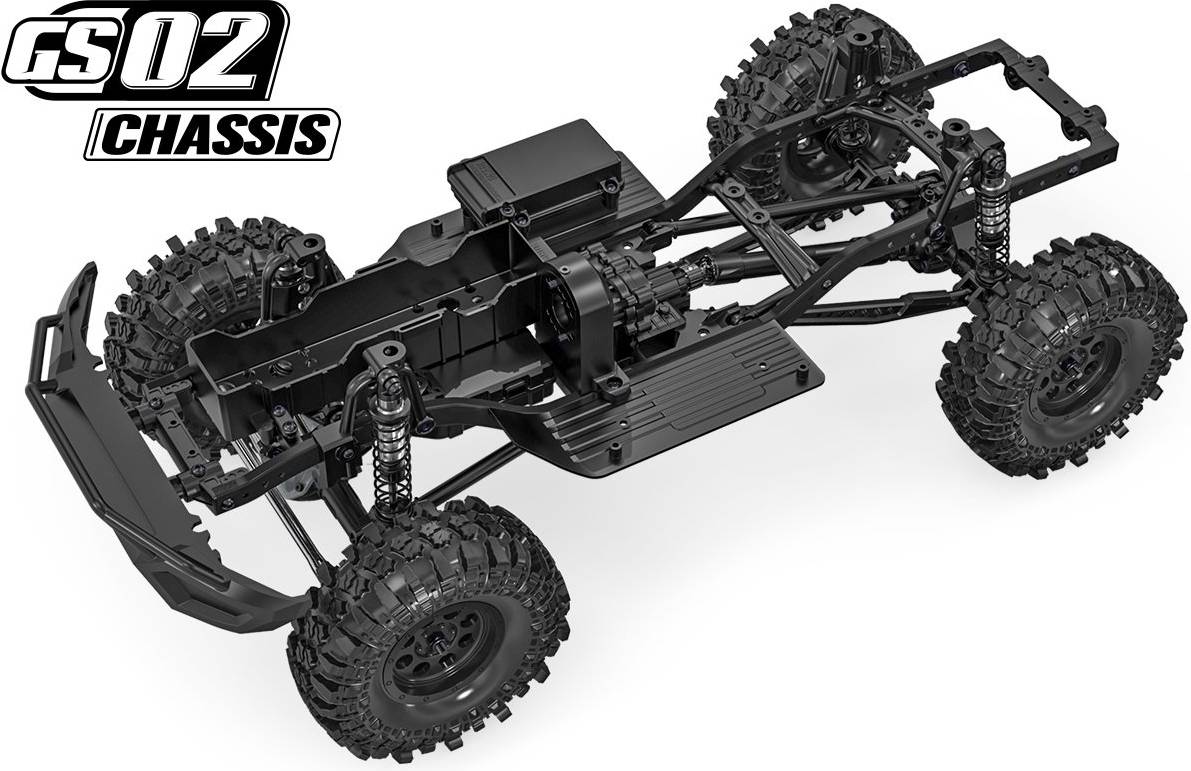

he Komodo Double Cab assembly kit features a designed double cab truck body molded in a durable 1.5mm thick lexan body. Included with the body is the grille, light buckets, side mirrors, wiper grille, bumpers and roll bar. The Stealth Body Mount system allows you to mount the body on the frame without having body posts visible outside the body. The body is mounted on the GS02 chassis kit with an adjustable wheelbase should you desire customize the rig to fit your crawling style. The GS02 kit has been designed to provide great performance by adding features such as a chassis mounted steering servo, torque twist reduction, zero ackerman steering and hardened carbon steel CVA's and universal joints.

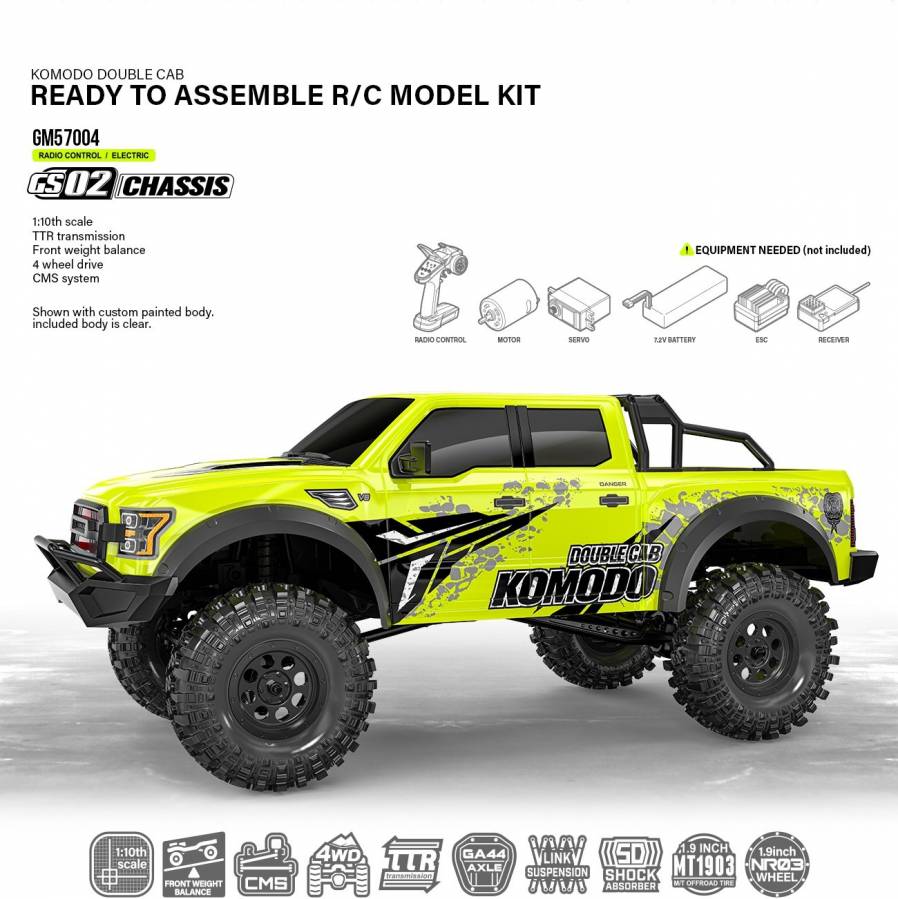

Vehicle shown assembled and painted for display purposes. Needed to complete: Radio System, Steering Servo, Battery, Charger, Motor/ESC, Paint
