Servo - Precision 0.22/42oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
|
|
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
 |
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

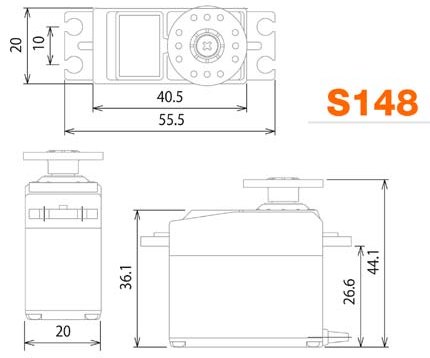

SPECIFICATIONS
45.4 g
Weight:
40.6 mm
Length:
20 mm
Width:
35.6 mm
Height:
2.4 kg-cm (33.3 oz-in)
Torque @ 4.8V:
0.28 sec/60°
Speed @ 4.8V:
3 kg-cm (41.8 oz-in)
Torque @ 6.0V:
0.22 sec/60°
Speed @ 6.0V:
FEATURES

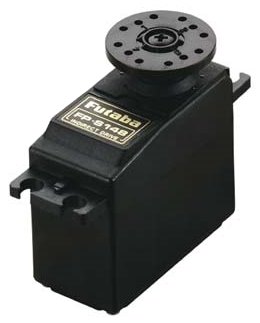

The Futaba S148 features an oilite output bearing and is one of the most popular servos ever produced by Futaba.
click image to enlarge
ADDITIONAL PHOTOS
|
PRODUCT RESOURCES
