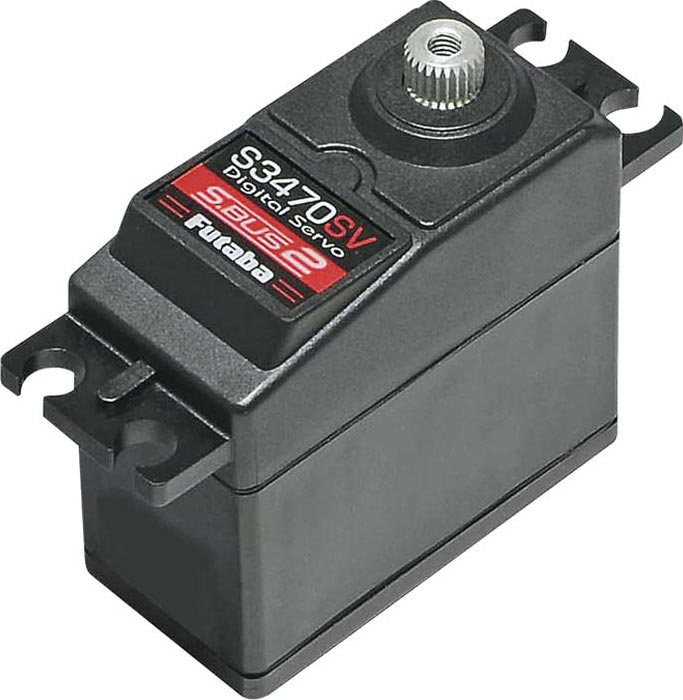

Servo S3470SV High Voltage SBUS-2 EP Car
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
40 mm
Length:
20 mm
Width:
38.1 mm
Height:
43 g
Weight:
8 kg-cm (111.1 oz-in)
Torque @ 6.0V:
0.14 sec/60°
Speed @ 6.0V:
9.6 kg-cm (133.3 oz-in)
Torque @ 7.4V:
0.12 sec/60°
Speed @ 7.4V:
FEATURES
- Three pole motor
- Metal gears with two ball bearings
- Programmable and compatible with S.Bus and S.Bus2 systems
- High voltage handles extra speed and power provided by 2S LiPo batteries
