SPECIFICATIONS
3450 KV RPM/Volt
Motor Kv:
12
Poles:
20 mm
Can Diameter:
15.5 mm
Can Length:
17.5 g
Weight:
2 cells
LiPo Cells:
FEATURES
Specifications:
ESC:
Input Voltage: 2S-3S LiPo
Waterproof: No
BEC: 5V-6.5V Switchable
Current:
Continuous: 30A
Peak: 50A
Dimensions (LxW): 28x15.5mm
Weight: (3.5g)
Motor:
Motor Type: Outrunner
KV: 3450kV
Pole: 12-Pole
LiPo: 2S
Power: 120W
Resistance: 0.16 Ohm
No Load Current(@10V): .07A
Size (Diameter x Length): 20x15.5mm
Weight: (17.5g)
Application: Micro Crawler

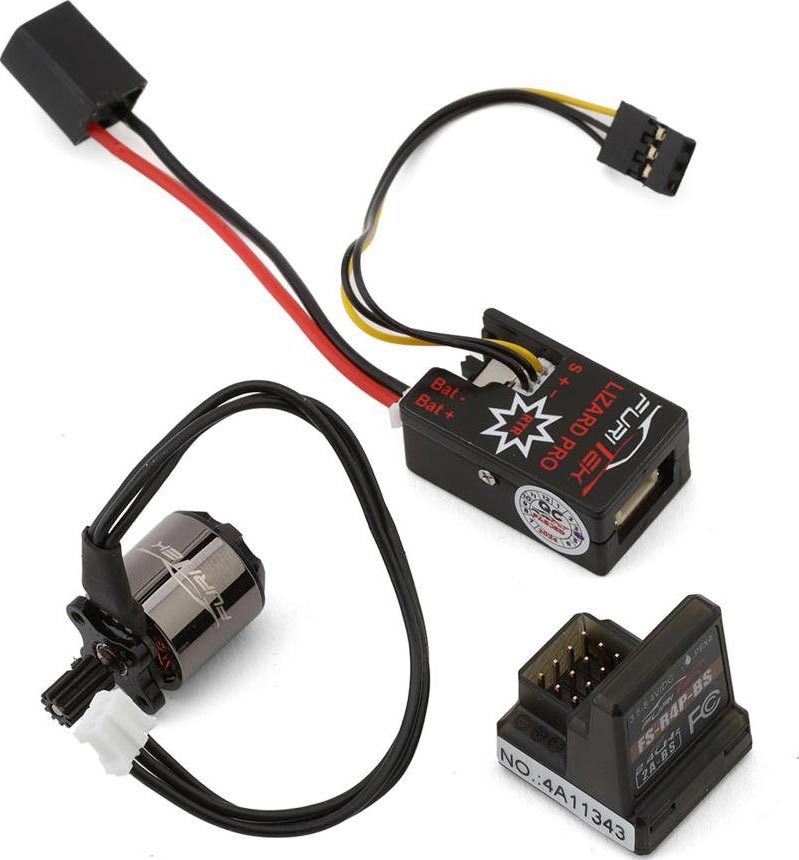

Includes:
(1) Lizard Pro 30A Brushless ESC
(1) Venom 1212 3450kV Brushless Motor
(1) FlySky 4-Channel Receiver Connector
Features:
Lizard Pro ESC
Support Sensorless brushless DC and brushed DC motor (config via the app, default is brushless)
FOC (Field-oriented control) technology
Compatible with stock battery
Built-in wireless
Built-in switchable BEC
Built-in switch power
Super easy programming via App on both Android and IOS
Lifetime free firmware updates
Compact and lightweight
Real-time telemetry up to 10Hz
Venom Motor
12-Pole Outrunner design
Super thin (0.2mm) stator laminations
Precision balanced rotor, smoothness for best reliability and maximum RPM.
Quiet and compact without sacrificing performance
Extreme quality high temperature copper windings
High strength steel pinion gear
The Furitek Lizard Pro 30A Micro element resistant ESC is a Powerful ESC that delivers huge performance to small scale rock crawlers. Boasting a 30 amp continuous rating, adjustable 5A BEC, up to 3S LiPo support, and built-in wireless module programming capability! This ESC supports both brushed and brushless motors and uses FOC technology to give you a buttery smooth performance on the trail. The Furitek Venom 1212 3450kV 12-Pole hi-torque brushless Outrunner motor is designed to provide a buttery smooth feel at low and high RPM with incredibly high torque that will turn your Ascent-18 into a crawling performance weapon! Designed to be a plug-and-play option for Ascent-18 rock crawlers, this combo is an excellent upgrade if you are looking to bring your Ascent-18 to the next level of high performance!
