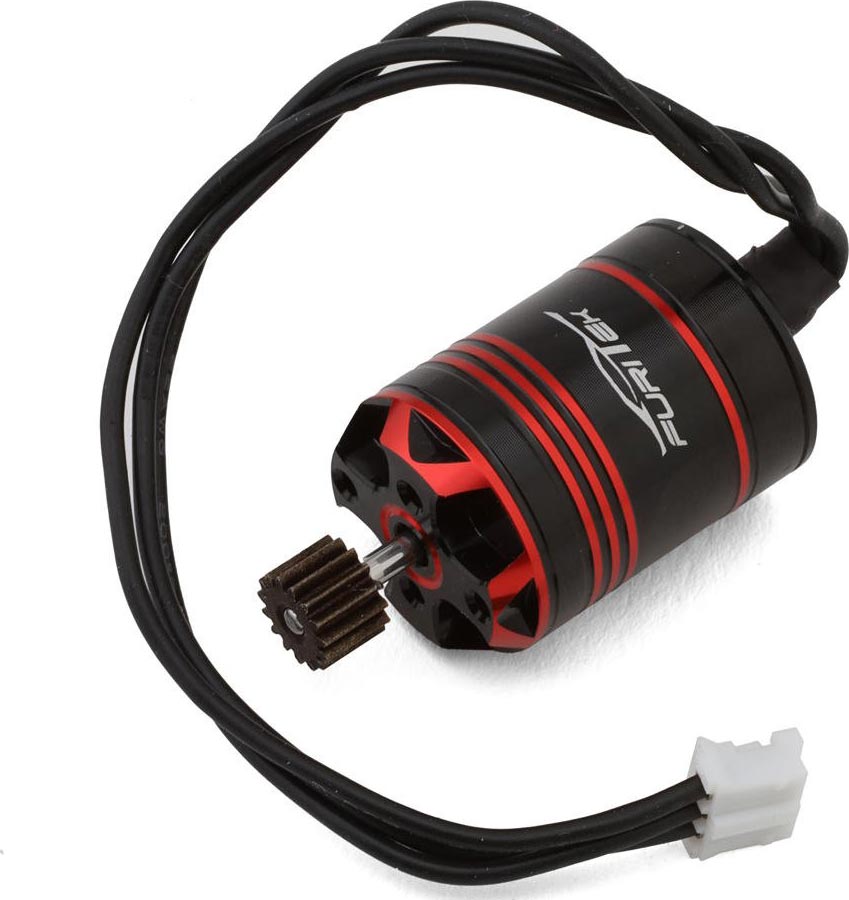

Cedar Inrunner Brushless Motor w/15T Steel Pinion (FX118)
|  |   click to enlarge |
More like this... Electric Car Motors Brushless Micro
But only from... FURITEK
All items from... FURITEK










        But only from... FURITEK
All items from... FURITEK
This live feed
                    information is to be used as a general guide to current inventory. There is no guarantee of
                    availability.

            SPECIFICATIONS

						    Brushless Inrunner
						  Brushed/Brushless:

						    3456 KV RPM/Volt
						  Motor Kv:

						    12
						  Poles:

						    18 mm
						  Can Diameter:

						    25 mm
						  Can Length:

						    20 g
						  Weight:

						    2-3 cells
						  LiPo Cells:
						FEATURES
					Includes:
- (1) Furitek Micro Cedar 3456kV Brushless Inrunner Motor
- (1) 15T Brass pinion gear
Features:
- Perfect fit and upgrade for the Furitek FX118 micro crawler
- CNC machined 6061 T6 billet aluminum heatsink can
- Special designed 12-Pole Inrunner brushless motor for most efficiency
- Water and dustproof design
- Small, compact, easy to be installed in tight spaces
- Super quiet, high torque, powerful and super slow speed yet tons of wheel speeds when needed
- Great heat dissipation to maximizes efficiency
- Super thin (0.2mm) stator laminations
- Precision balanced rotor, smoothness for best reliability, and maximum RPM
- Precision engineered for maximum energy conversion
- Precision Steel gears
- High quality ball bearings
Furitek FX118 Cedar Micro Brushless Inrunner Motor. The Furitek Inrunner Cedar 1825 3456KV brushless motor incorporates the same awesome reliability and amazing performance we all loved of the Outrunner motors but in the form of a sealed can version! making it dust and waterproof! you no longer have to worry about the outside of the motor needing clearance to spin anymore! Easy to be installed in any frame without worrying about touching wires or parts like the counterpart Outrunner motors! Get this transmission and motor combo and experience the amazing crawling performance and reliability of the Cedar!
click image to enlarge
ADDITIONAL PHOTOS|   |
8936037008301 8936037008301
		FTK-FUR-2355
