FMS FCX24 Micro Komodo Brushless Motor w/Steel Pinion Gear (3450k
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Electric Car Motors Brushless Micro
But only from... FURITEK
All items from... FURITEK
But only from... FURITEK
All items from... FURITEK
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
3450 KV RPM/Volt
Motor Kv:
12
Poles:
15.5 mm
Can Diameter:
20.6 mm
Can Length:
1.5 mm
Shaft Diameter:
6 mm
Shaft Length:
17 g
Weight:
10 A
Max Surge Current:
120 W
Watts:
2-3 cells
LiPo Cells:
FEATURES
Includes:

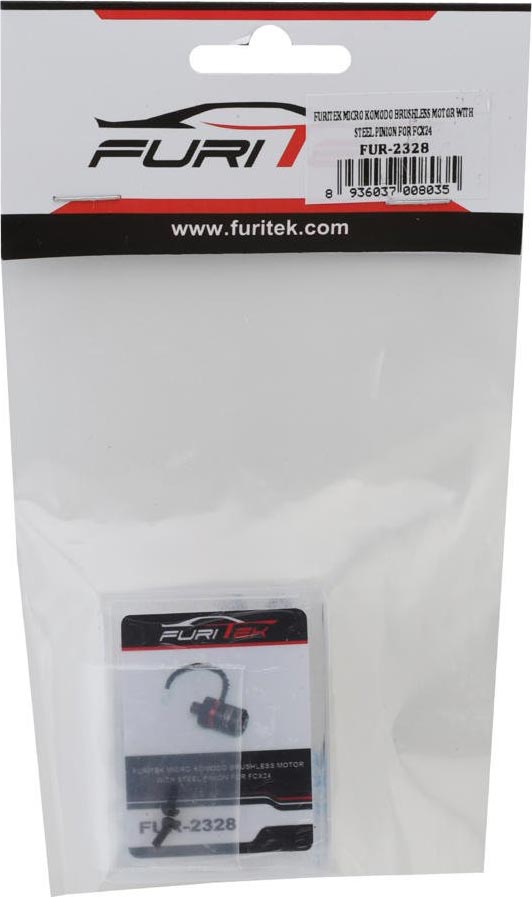

- (1) FMS FCX24 Micro Komodo Brushless Motor 3450kV
Features:
- 12 Pole hi-torque motor design
- Super thin (0.2 mm) stator laminations
- Japanese NMB High RPM ABEC5 bearings
- Precision balanced rotor for best reliability and maximum RPM
- CNC machined 6061 T6 billet aluminum heatsink can
- Precision engineered for maximum energy conversion
- High purity and higher temperature single copper windings
- Excellent heat dissipation for maximum efficiency

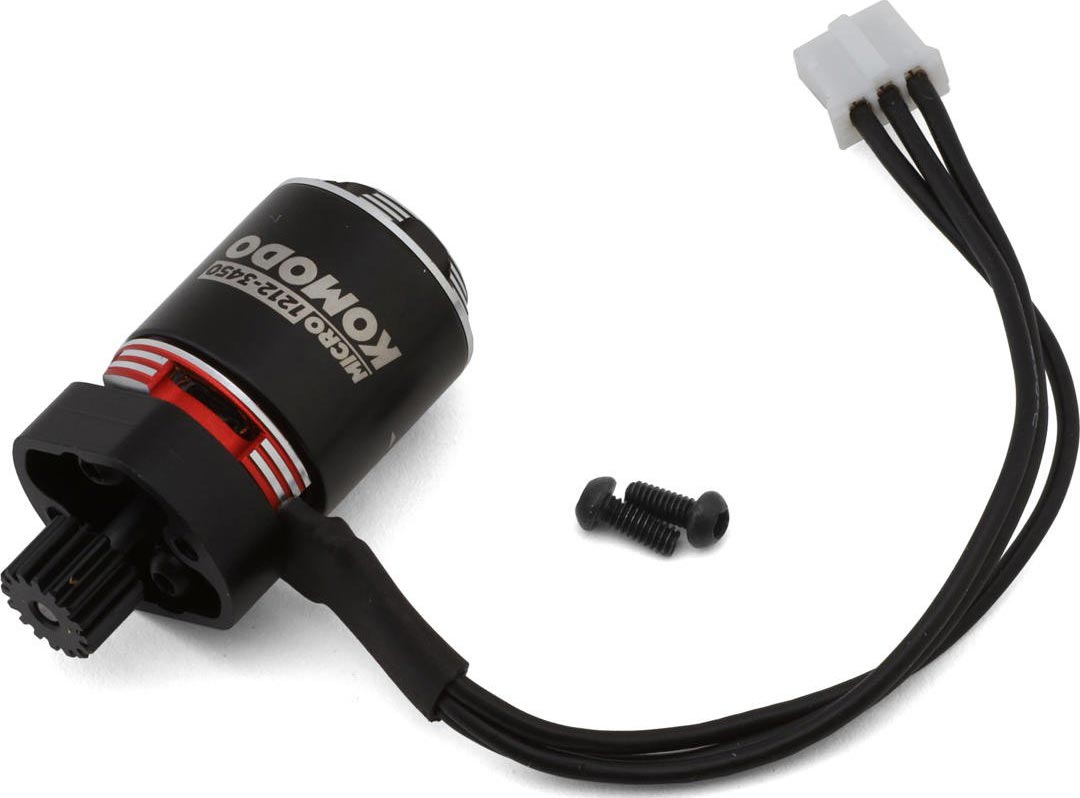

The Furitek FMS FCX24 Micro Komodo Brushless Motor is a high torque option for space conscious 1/24 scale builds. Don't let the size of this motor fool you. A 12-pole motor design with a precision balanced rotor allows for extremely low RPM while maintaining maximum torque and efficiency. Package includes one micro motor with pre-installed steel pinion gear.
