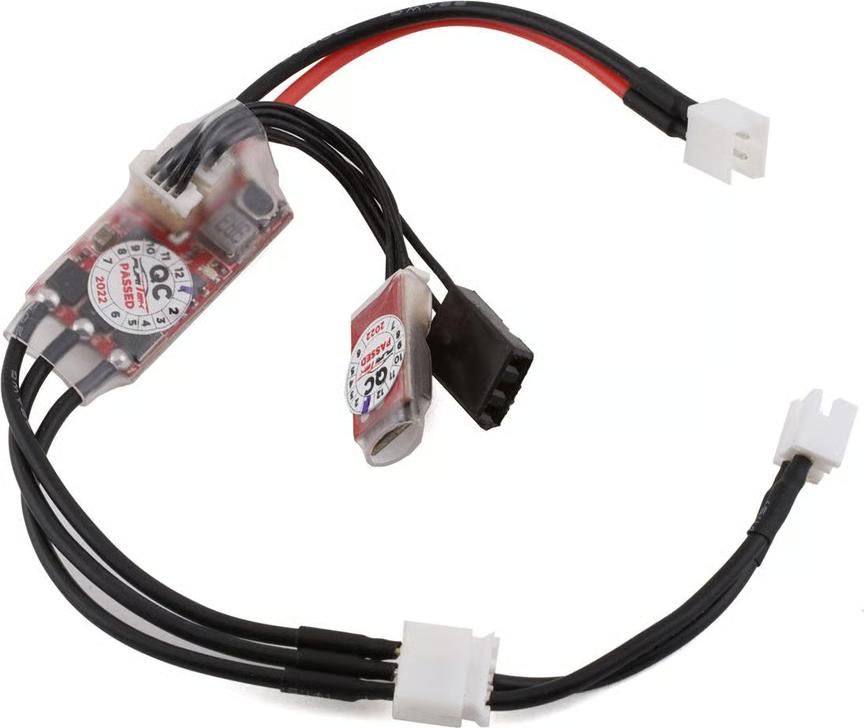

Iguana 20A Brushed ESC Combo w/Wireless Module
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Car Electronic Speed Controls (ESC)
But only from... FURITEK
All items from... FURITEK
But only from... FURITEK
All items from... FURITEK
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Brushed DC
Type:
40 A
Max Burst Current:
2 cells
LiPo Cells:
4 AAA cells
NiMH/NiCd Cells:
1.5 A (peak)
Max BEC Output:
2.1 g
Weight:
24 mm
Length:
12.4 mm
Width:
FEATURES
Includes:
- (1) Pre-Wired Iguana 20A ESC with:
- (1) Wireless Module
- (1) Receiver Wire
- (1) Brushed Motor Wire
Features:
- Supports DC brushed motors
- FOC (Field-oriented control) technology
- Designed specifically for the Axial SCX24 crawlers
- 5.5V-1.5A Built-in BEC
- Mini size and light weight
- Super easy programming via App on BOTH Android and IOS
- Firmware may be updated using included wireless module
- Real-time telemetry up to 10Hz
- Support AAA batteries and 2s LiPo batteries with automatic battery type recognition capability
- Compatible with stock Axial SCX24 Transmitter and Receiver
The Furitek Iguana 20A Brushed ESC Combo with wireless Module brings a lot of popular features from it's brothers, the Tegu, and Lizard, into a brushed only version of the ESC to help reduce costs while delivering incredible performance and reliability. Iguana is designed to be a direct drop in replacement for the OEM system, and is the ideal choice for those who are looking to keep it simple. This combo comes equipped with the Furitek wireless Module for out of the box performance.
click image to enlarge
ADDITIONAL PHOTOS
|
8936037005140 8936037005140
FTK-FUK-2037
