SPECIFICATIONS
6 x 4.5
Recommended propeller:
29 in
Wingspan:
170g (without battery)
Weight:
2300 KV
Brushless Motor Requirements:
12A minimum
ESC Requirements:
800mAh 3s minimum
Battery Requirements:
2 5-gram servos
Servo Requirements:
1.75 in
Center of Gravity (Infront of Rear Firewall):
FEATURES
Laser-cut Foam Airframe
Mini Power Pod
FT Elements Firewall

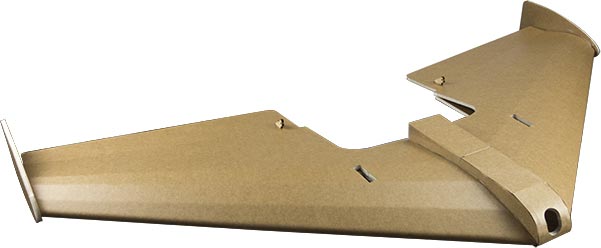

The Flite Test Mighty Mini Arrow is as Tried and true as its name, this little beauty will have you captivated at first flight! This wing will transport you to place where no acrobatical movement is safe and where everyone in your community will have to experience it for themselves! Grab your friends, your target, stock your quiver and go shoot some "Arrows!"
This wing was created to allow for people to quickly and affordably get up in the air and flying. It is designed to fit a smaller power pack to allow for a smooth, trainer option, but its primary function is to incorporate a larger power pack for FPV wing racing!
Power Pack Compatibility:
Flite Test Airplanes are all designed around the use of various "Power Packs" which include an inexpensive Motor, ESC, Servo, & accessory package to complete each aircraft! The compatible power pack is listed below.
Power Pack A - Great lower power option for easier control.
Power Pack F - Improved output power for faster speeds and advanced flyers.
Kit Includes:
Laser-cut Foam Airframe
Mini Power Pod
FT Elements Firewall
Push Rods
Control Horns
Bar-BQ Skewers
Throw Gauge
Specification Sheet
Needed to Complete:
(1) Brushless Motor: Flite Test A or F Radial or2204-2206 Size; 2200kV minimum
(1+) Propellers: 6x4.5
(1) ESC: 20 Amp
(1+) Battery: 3S 11.1V LiPo 800mAh
(2) Servos: ~5 Gram Micro Servos
(1) 2.4GHZ 6+ Channel Radio System (Radio & Receiver)
