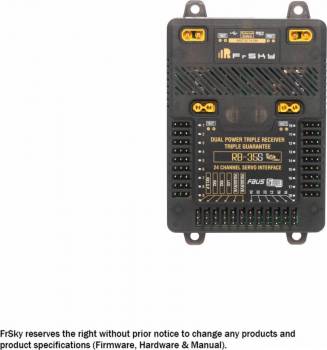

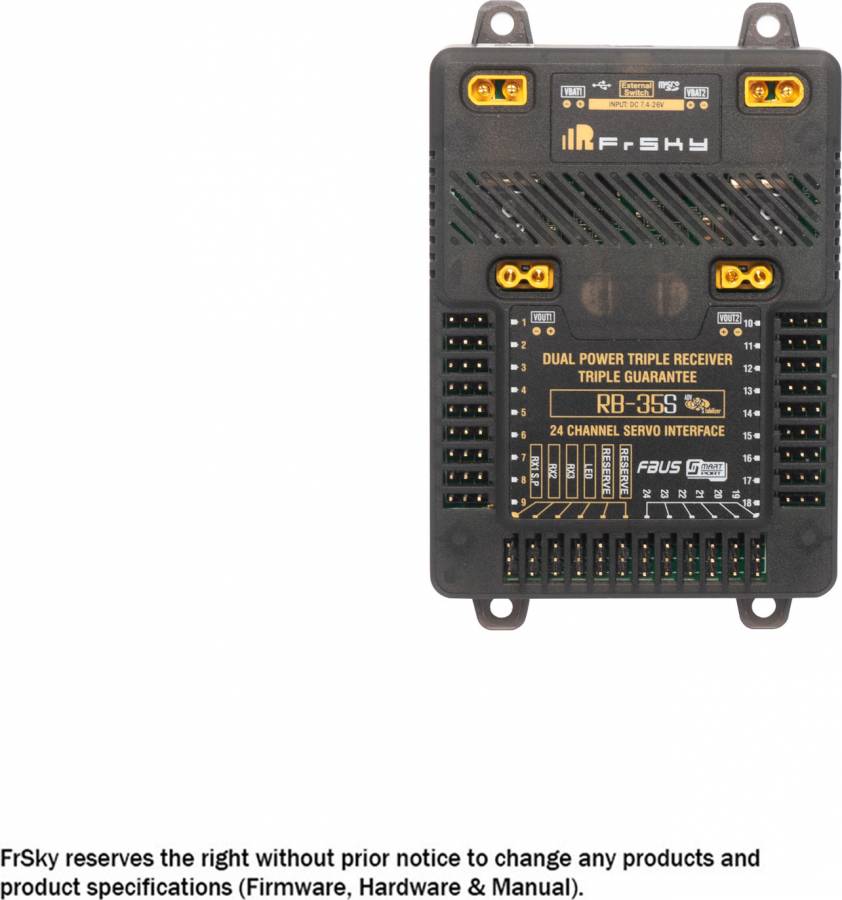

RB-35S Redundancy Bus

Features:

• Dual Power Input & Triple Receiver Redundant Guarantee
• RX In | FBUS/SBUS/S.Port Auto Recognization (Note: Only the S.Port on the RX1 channel port can be used to upgrade firmware.)
• Built-in Advanced Stabilization Functions
• Built-in High-Precision Telemetry Sensor (Altitude, Vertical Speed, etc.)
• Built-in Power Switch Function | Match with Different External Switches (Optional)
• Dual Power Input (Balance / Backup mode)
• Independently Configurable Dual BEC Outputs (BEC 1: VOut1 & CH1-9 | BEC 2: VOut2 & CH10-24 & all other Ports)
• Overload Protection on Each Channel
• Channel1-9 with Current Detection
• Full Black Box Data Record Function
• Supports External LED Indication

Specifications:

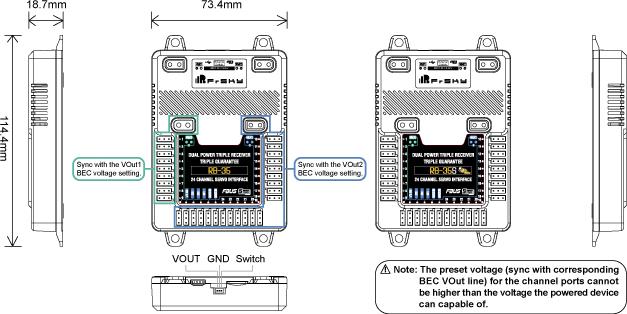

• Dimension: 114.4*73.4*18.7mm (L*W*H)
• Weight: 99g
• Number of Configurable Channel Ports: 24 (PWM/FBUS/S.Port/SBUS Out)
• 3 RX Input Ports & 1 LED Indicator Port
• Battery Input Voltage Range: DC7.4-26V (It is recommended to use 3S-6S Li batteries) (Note: 2S Li Batteries will not have sufficient input supply voltage to reach the 8.4V BEC output configuration.)
• Operating Current: 200mA@12V
• Continuous Current: 2*15A@5-8.4V (BEC Outputs)
• Operating Temperature: -20°C~75°C
• Battery Input & BEC Output Connector: XT30
