RB-25S Redundancy Bus
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
More like this... Misc Radio System Accessories
But only from... FRSKY ELECTRONIC
All items from... FRSKY ELECTRONIC
But only from... FRSKY ELECTRONIC
All items from... FRSKY ELECTRONIC
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
53 mm
Length:
40 mm
Width:
16 mm
Height:
26.7 g
Weight:
4-10 V
Reccomended Voltage:
FEATURES
Features:
- Dual Power Balancing Consumption
- Triple Receiver Redundant Guarantee
- RX In | FBUS/SBUS/S.Port Auto Recognization (Note: Only the S.Port on the RX1 channel port can be used to upgrade firmware.)
- Built-in Advanced Stabilization Functions
- Built-in High-Precision Telemetry Sensor (Altitude, Vertical Speed, etc.)
- Built-in Power Switch Function | Match with Different External Switches (Optional)
- Supports External LED Indication
- Compatible with FBUS/S.Port Products
Specifications:

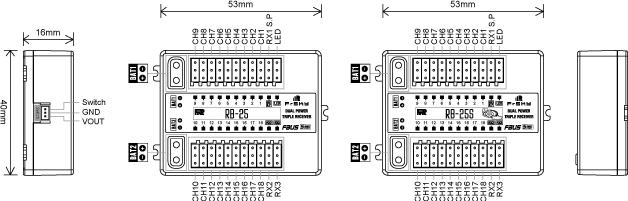

- Dimension: 53*40*16mm (L*W*H)
- Weight: 26.7g
- Number of Channel Ports: 18 (PWM/FBUS/S.Port/SBUS Out)
- 3 RX Input Ports & 1 LED Indicator Port
- Operating Voltage: 4-10V (Recommend 2S Li batteries)
- Operating Current: ≤185mA@5V / Continuous Current: ≤30A
- Operating Temperature: -20°C~75°C
- Power Input Connector: XT30
click image to enlarge
ADDITIONAL PHOTOS
|
|
3071608
