Sero S5414H Act HV
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
More like this... Servos Digital
But only from... FRSKY ELECTRONIC
All items from... FRSKY ELECTRONIC
But only from... FRSKY ELECTRONIC
All items from... FRSKY ELECTRONIC
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
39 mm
Height:
80 g
Weight:
4.8-8.4 v
Voltage Range:
47 kg-cm
Torque @ 6.0V:
0.12 sec/60°
Speed @ 6.0V:
55 kg-cm
Torque @ 7.4V:
0.10 sec/60°
Speed @ 7.4V:
63 kg-cm
Torque @ 8.4V:
0.08 sec/60°
Speed @ 8.4V:

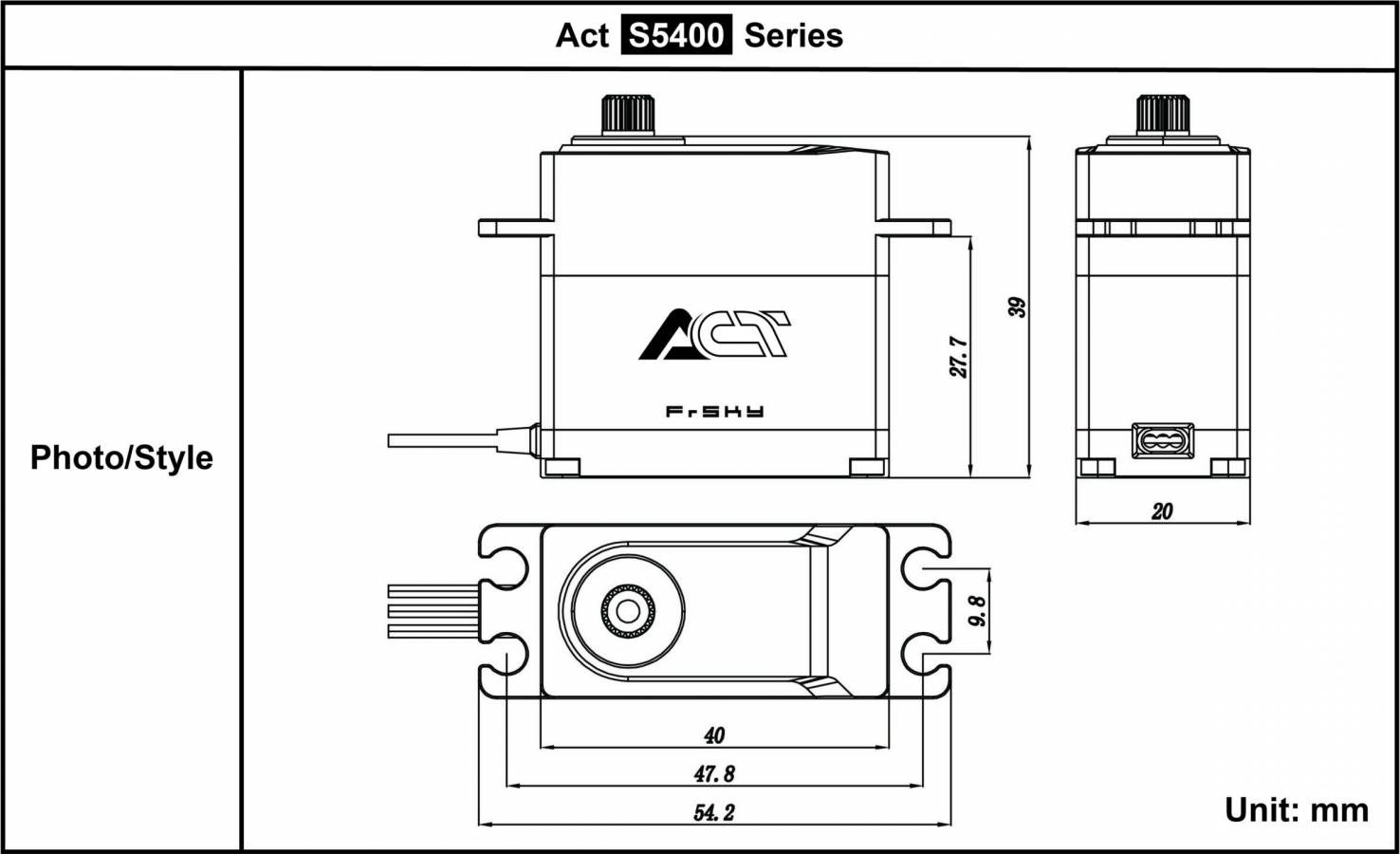

click image to enlarge

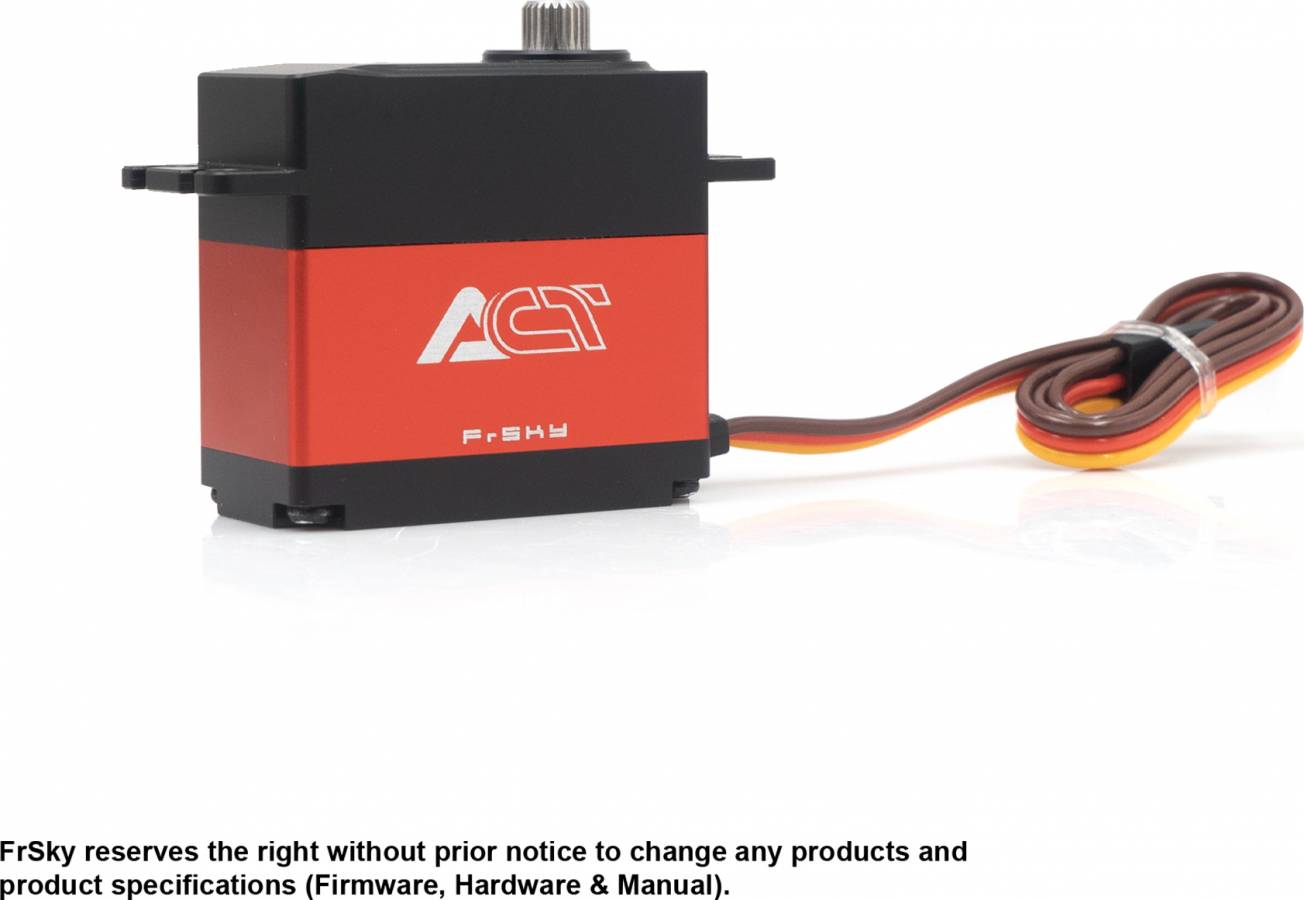

ADDITIONAL PHOTOS
|
03050662
