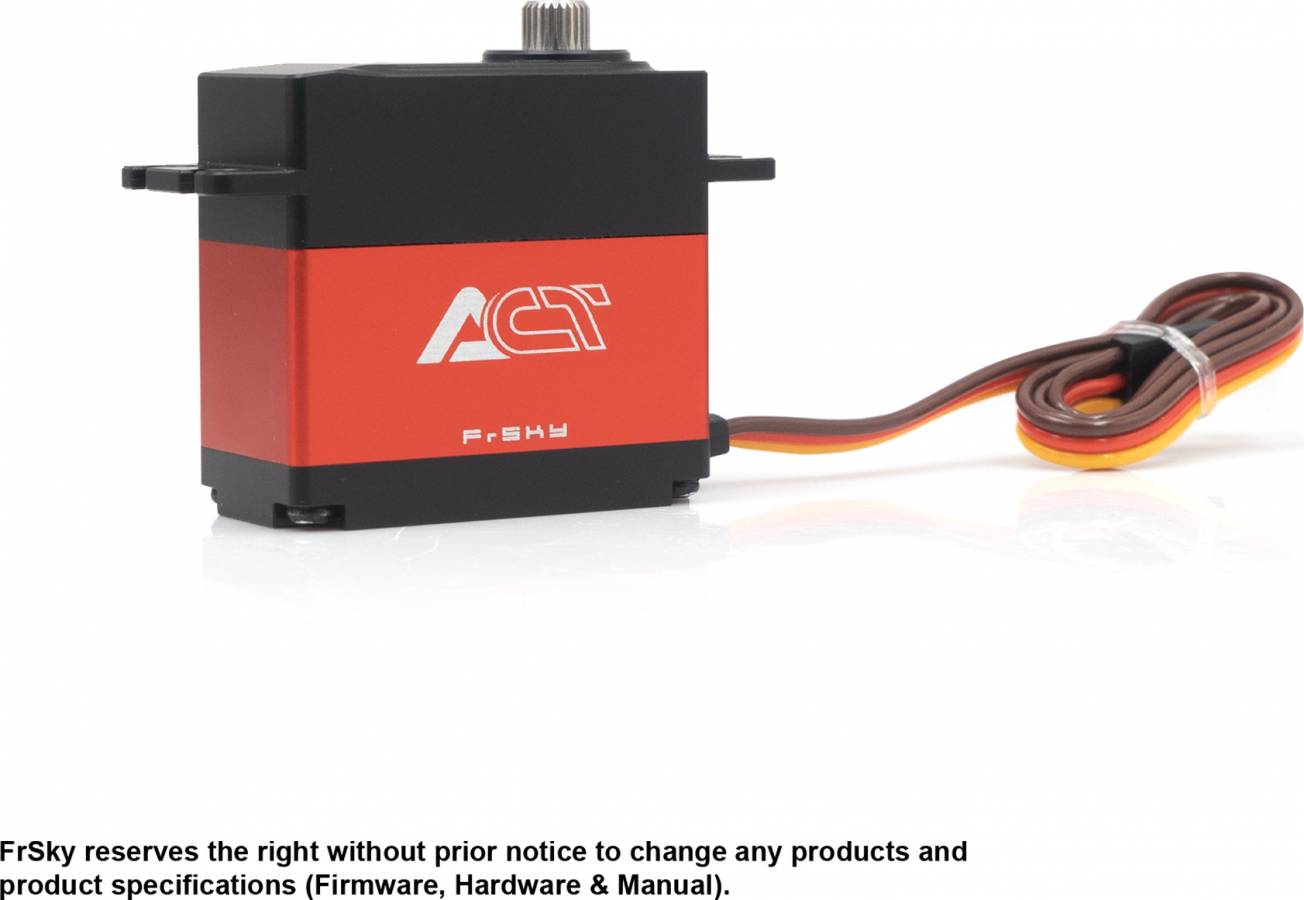

Servo S5415H Act HV
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
More like this... Servos Digital
But only from... FRSKY ELECTRONIC
All items from... FRSKY ELECTRONIC
But only from... FRSKY ELECTRONIC
All items from... FRSKY ELECTRONIC
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

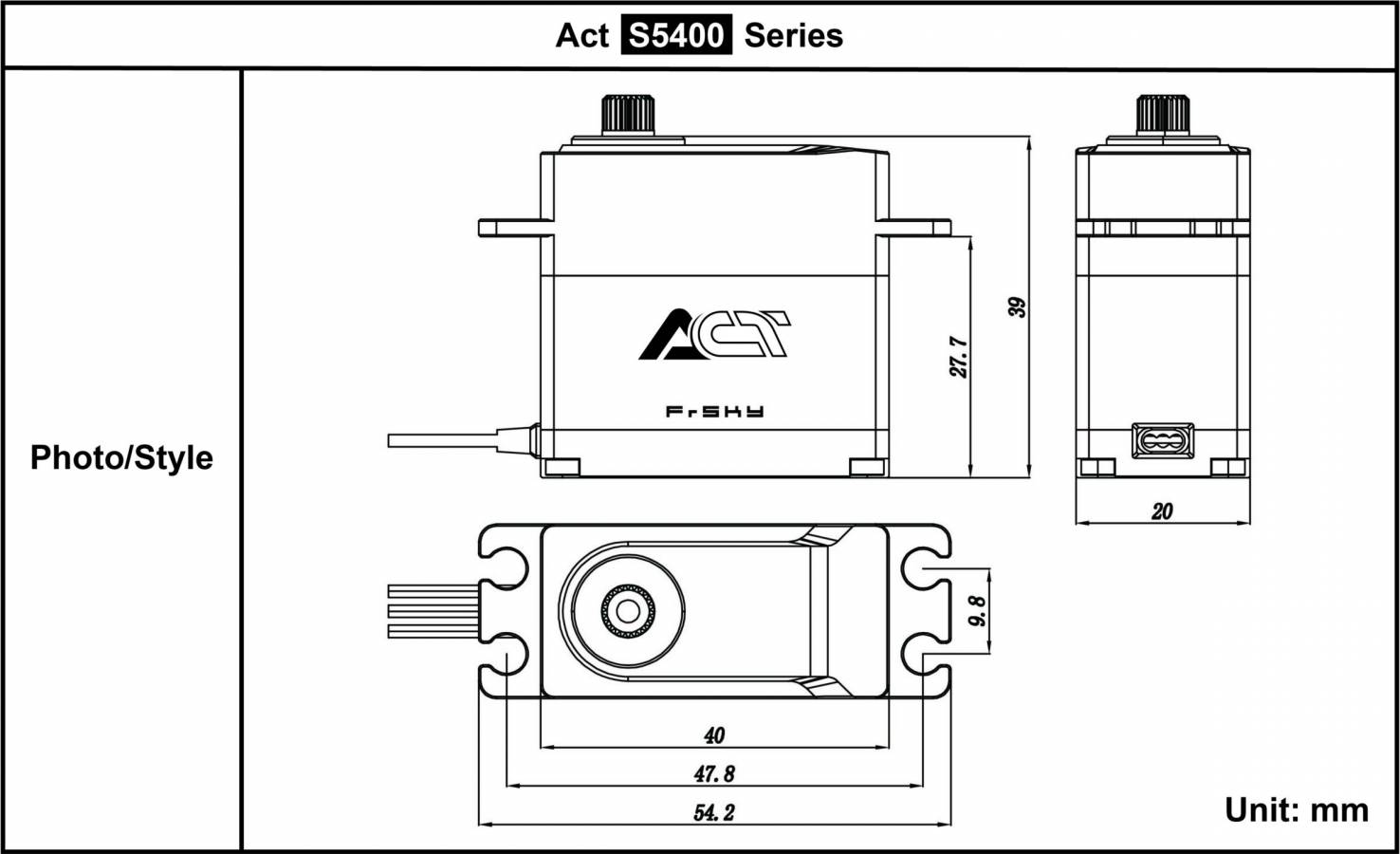

SPECIFICATIONS
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
39 mm
Height:
80 g
Weight:
4.8-8.4 v
Voltage Range:
736 oz-in
Torque @ 6.0V:
0.15 sec/60°
Speed @ 6.0V:
874.9 oz-in
Torque @ 7.4V:
0.12 sec/60°
Speed @ 7.4V:
986 oz-in
Torque @ 8.4V:
0.10 sec/60°
Speed @ 8.4V:
FEATURES
- High Durability with Metal Gear
- All-aluminum CNC-machined Protective Case
- 8.4V High Voltage Capability, Offering Excellent Torque with Optimal Speed Performance.
- Integrated Dual Precision Ball Bearing and Potentiometer
The Act series coreless servos utilize a fully CNC-machined aluminum protective case and benefit from metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance.
The Act series servos are available in a range of models to support different torques and Speeds depending on your needs. These servos are ideally matched to models especially where power, reliability, and precision are required.
click image to enlarge
ADDITIONAL PHOTOS
|
03050658
