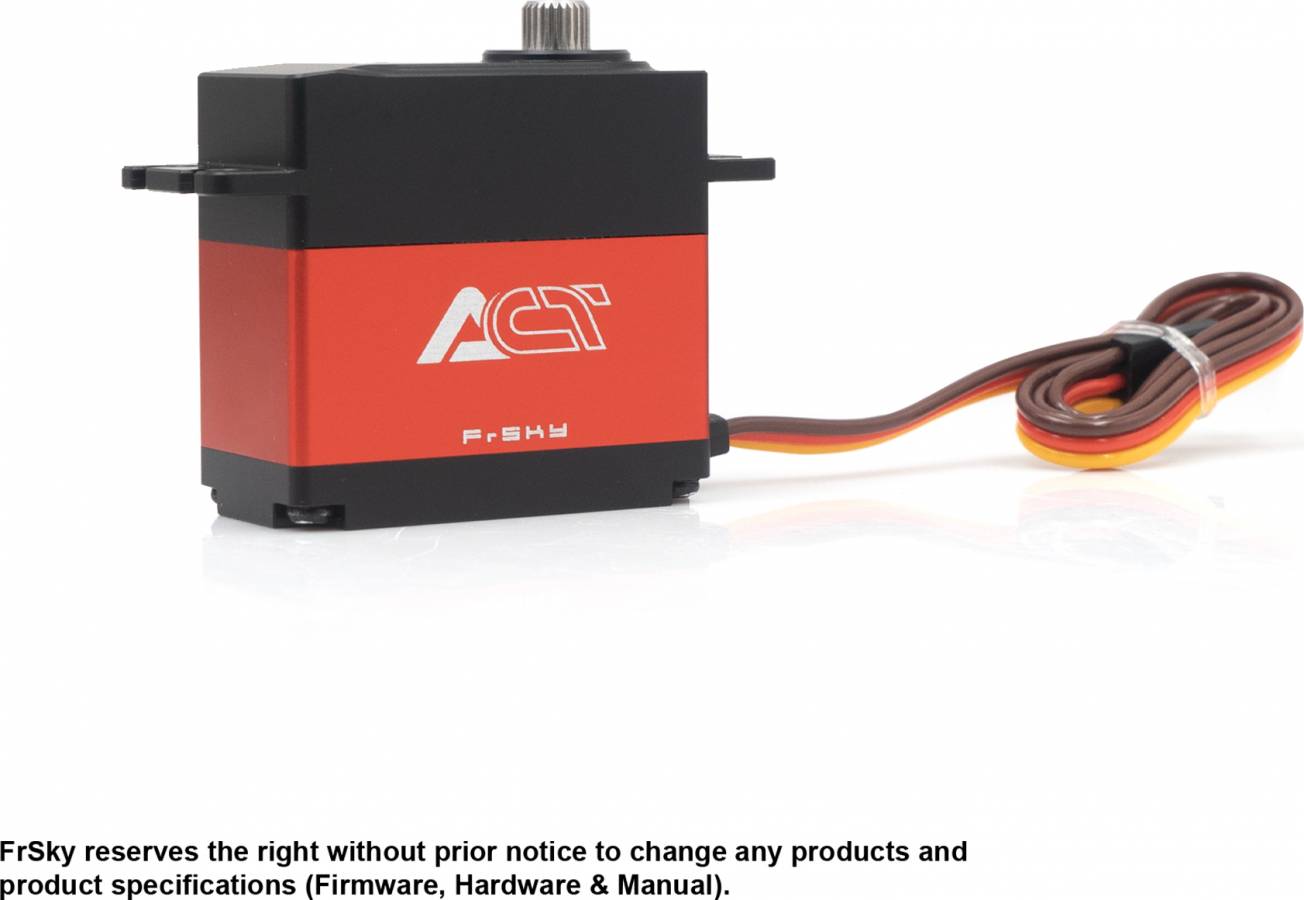

Servo S5412H Act HV
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
More like this... Servos Digital
But only from... FRSKY ELECTRONIC
All items from... FRSKY ELECTRONIC
But only from... FRSKY ELECTRONIC
All items from... FRSKY ELECTRONIC
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

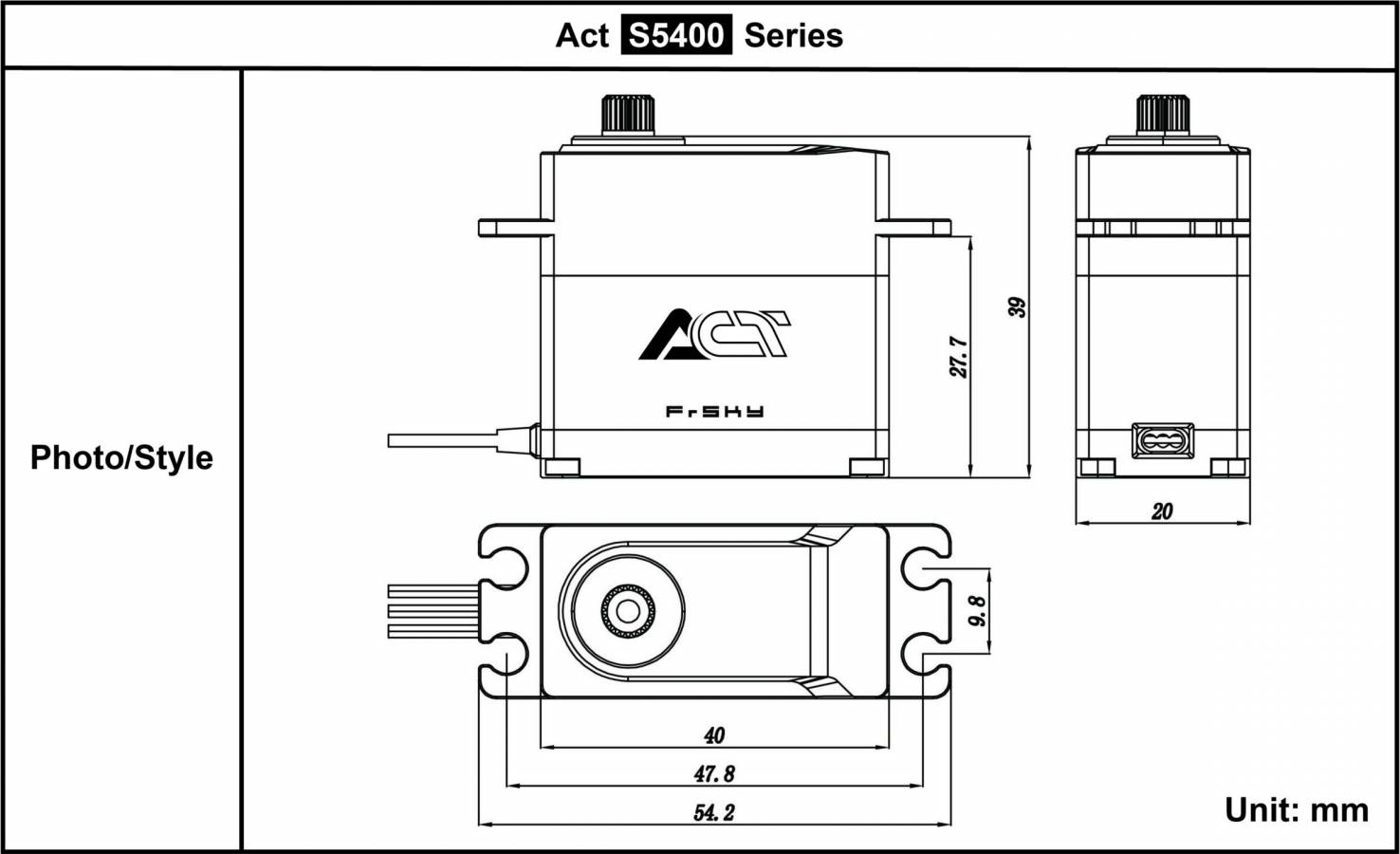

SPECIFICATIONS
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
39 mm
Height:
80 g
Weight:
4.8-8.4
Voltage Range:
652.7 oz-in
Torque @ 6.0V:
0.07 sec/60°
Speed @ 6.0V:
375 oz-in
Torque @ 7.4V:
0.06 sec/60°
Speed @ 7.4V:
416.6 oz-in
Torque @ 8.4V:
0.05 sec/60°
Speed @ 8.4V:
FEATURES
- High Durability with Metal Gear
- All-aluminum CNC-machined Protective Case
- 8.4V High Voltage Capability, Offering Excellent Torque with Optimal Speed Performance.
- Integrated Dual Precision Ball Bearing and Potentiometer
The Act series coreless servos utilize a fully CNC-machined aluminum protective case and benefit from metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance.
The Act series servos are available in a range of models to support different torques and Speeds depending on your needs. These servos are ideally matched to models especially where power, reliability, and precision are required.
