Servo LD5801 Xact F3K/F5K 8.4V 3.2kg Capable Hall Sensor Programm
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
More like this... Servos Digital
But only from... FRSKY ELECTRONIC
All items from... FRSKY ELECTRONIC
But only from... FRSKY ELECTRONIC
All items from... FRSKY ELECTRONIC
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

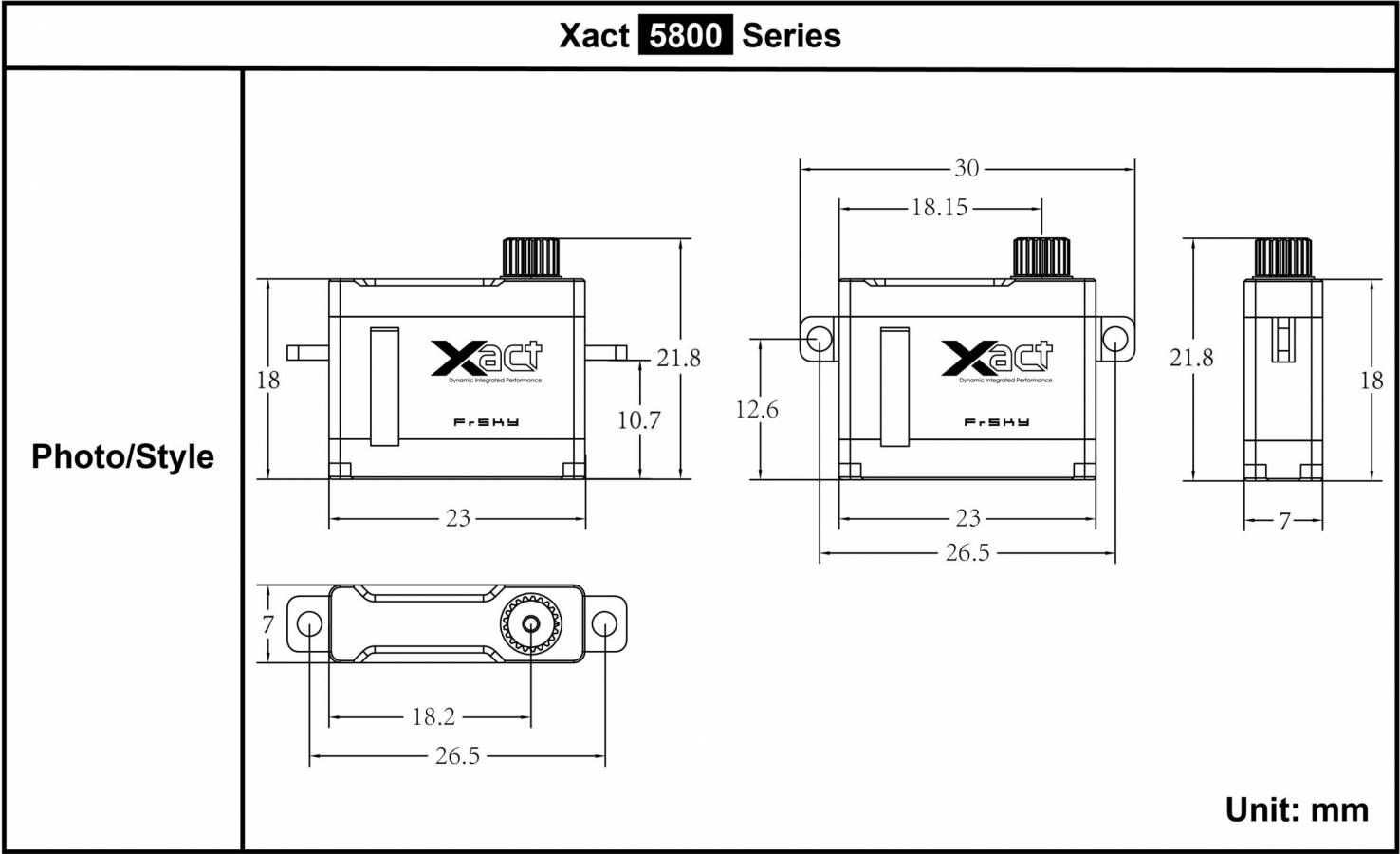

SPECIFICATIONS
23 mm
Length:
7 mm
Width:
18 mm
Height:
7.5 g
Weight:
3.5-8.4 v
Voltage Range:
2.20 kg-cm
Torque @ 4.8V:
0.08 sec/60°
Speed @ 4.8V:
2.90 kg-cm
Torque @ 6.0V:
0.06 sec/60°
Speed @ 6.0V:
3.40 kg-cm
Torque @ 7.4V:
0.05 sec/60°
Speed @ 7.4V:
3.80 kg-cm
Torque @ 8.4V:
0.04 sec/60°
Speed @ 8.4V:
FEATURES
The Xact series coreless servos utilize all CNC machined aluminum protective cases and metal gears, the Xact 5800 series servos are 3.5V to 8.4V wide voltage capable and offer high speed and equivalent torque performance but feature lower profile and lightweight.
Also, the Xact series servos offer multiple form factors and configurations to fit different model types and precision usage. Working with the FBUS protocol, the telemetry data (like real-time current, voltage, etc.) of Xact servos can be achieved and transmitted back to the radio, and parameters like the servo center point and travel degrees for the configurations can be set easily with flexibility on FrSky radios.
Features:
- For F3K (DLG)/ F5K Gliders
- Smaller Form Factors with Best Achievable Performance
- 7.5g Weight & 7mm Thick
- More Speedy Operation Response with Incomparable Torque Capability
- High Precision with Zero Slop
- Programmable Center-Point Positions and Travel Angles
- Built-in Hall Sensor
- Robust CNC Aluminum Case with Metal Gear
click image to enlarge

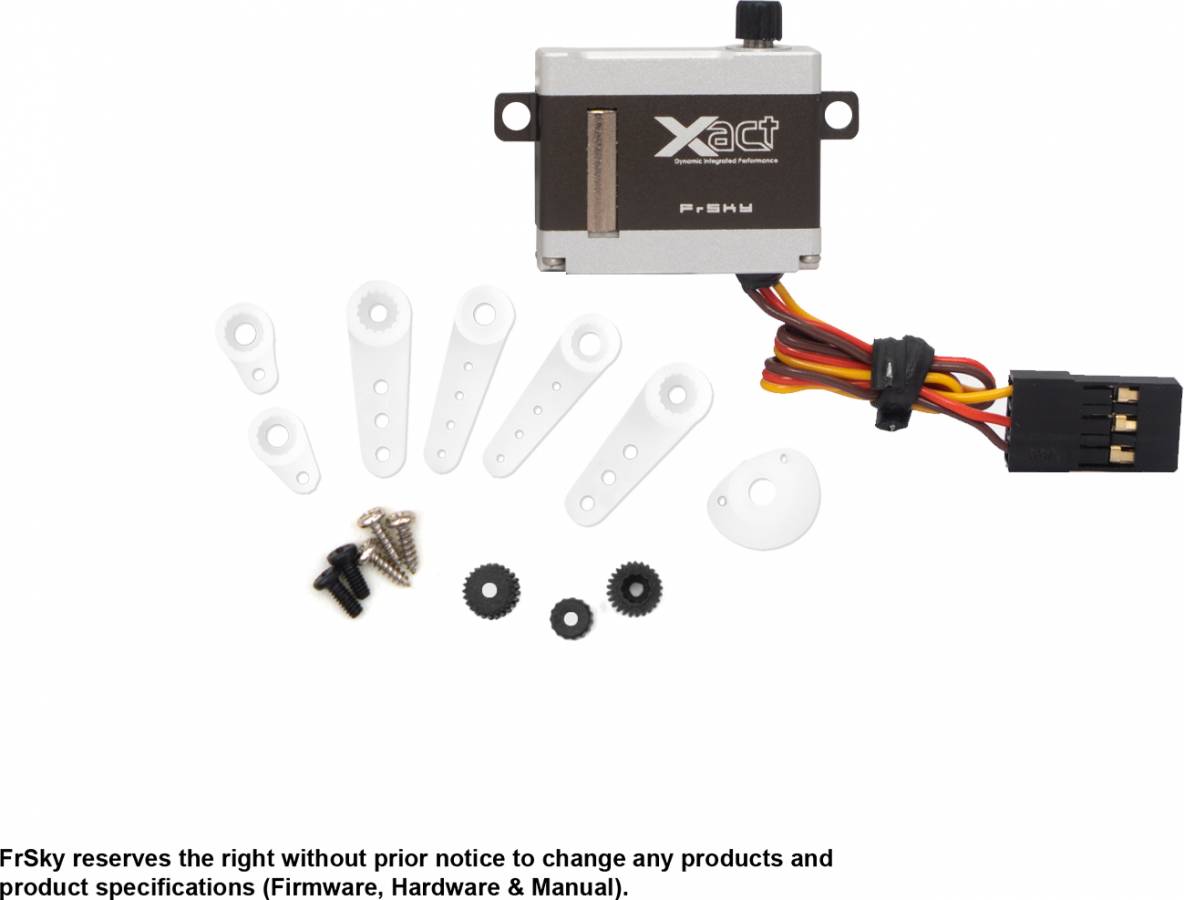

ADDITIONAL PHOTOS
|
