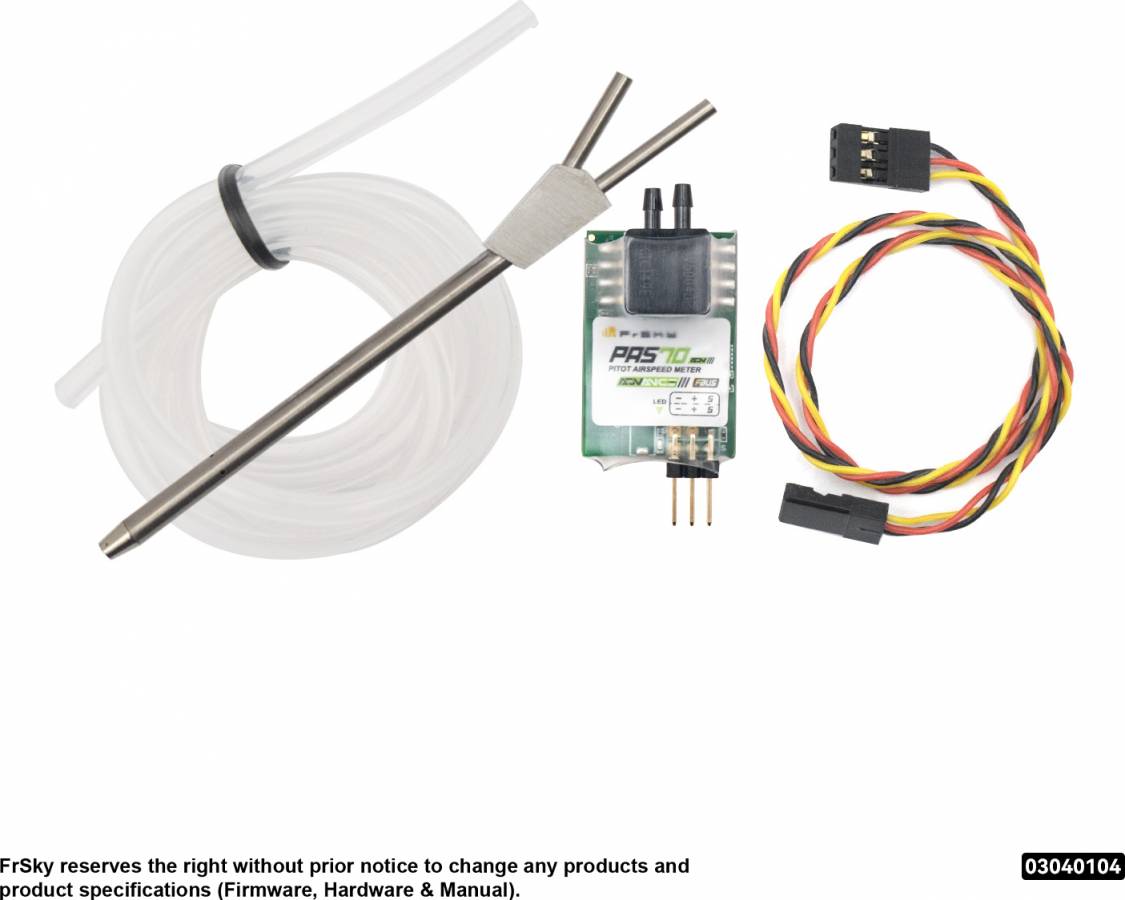

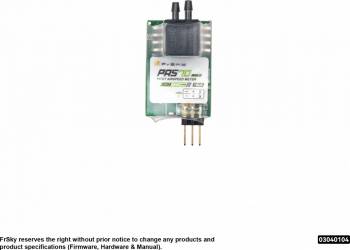

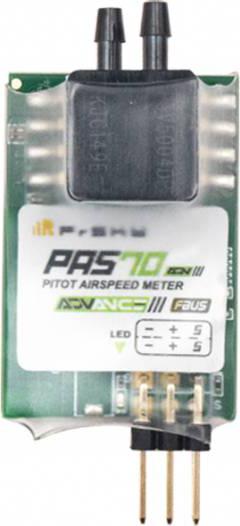

PAS 70 Airspeed Sensor ADV
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
More like this... Misc Radio System Accessories
But only from... FRSKY ELECTRONIC
All items from... FRSKY ELECTRONIC
But only from... FRSKY ELECTRONIC
All items from... FRSKY ELECTRONIC
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
FEATURES
Specifications:
- Operational Voltage: DC 4 -10 V
- Current consumption: 20mA@5V
- Measure airspeed range: 0~270km/h (0~167.7mile/h )
- Circuit Board: Weight 6.3 g, dimensions 33*22*10.16mm (L*W*H)
- Pitot Tube: Weight 4.4 g, length 101mm, diameter 2.6 mm
- Pitot Tube Hose: Silicon, clear, 3 feet (1 meter), 2.2mm ID, 4mm OD
- Compatible with FBUS/S.Port protocol
click image to enlarge
ADDITIONAL PHOTOS
|
|
PRODUCT RESOURCES
3040104
