StockStock availability for on-line ordering
StockStock availability for pick up
0
$84.99
Store - Stratford
?
0
$84.99
Store - Edmonton
?
0
$84.99
Store - Mississauga
?
0
$84.99
Store - Ottawa
?
0
$84.99
Store - Oshawa
?
0
$84.99
Store - Halifax
?
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
FEATURES
Features:
- Enhanced Anti RF-Interference capability with more solid RF performance
- Smart-matched ACCESS & ACCST D16 modes
- Supports basic Black-Box function
- Upgraded variometer sensor
- 6 high-precision PWM channel ports
- SBUS Out port?Supports 16???24CH mode?
- SBUS In port (Supports Signal Redundancy)
- Full control range with telemetry (S.Port or FBUS)
- Over-The-Air (OTA) FW update
- External battery/device voltage detection
Specifications:
- Weight:4.3g
- Number of Channels: 6/24 channels
- 6 High-precision PWM & 16 SBUS channels Mode
- 6 High-precision PWM & 24 SBUS channels Mode
- Operating Voltage Range: 3.5 -10V
- Operating Current: ?65mA@5V
- Operating Range: ?2km (Full range)(*Range may vary based on local conditions.)
- Variometer Measurement Range
- Altimeter Range & Resolution: -700m to 10000m & 0.1m
- Vertical Speed Range: ±10m/s
- Voltage Measurement Range via AIN2 (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)
- Antenna connector: IPEX4
- Compatibility: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters

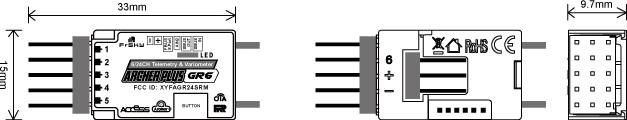

- Dimension: 33*15*9.7mm (L*W*H)
