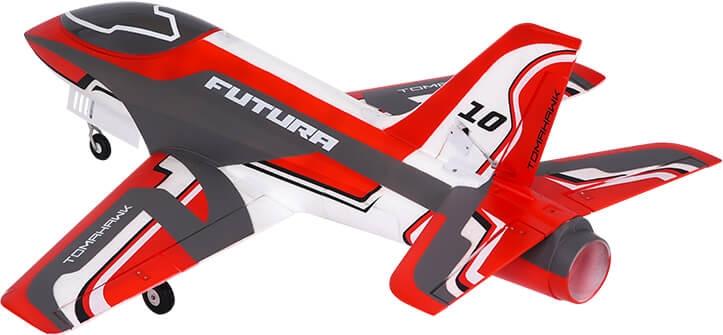

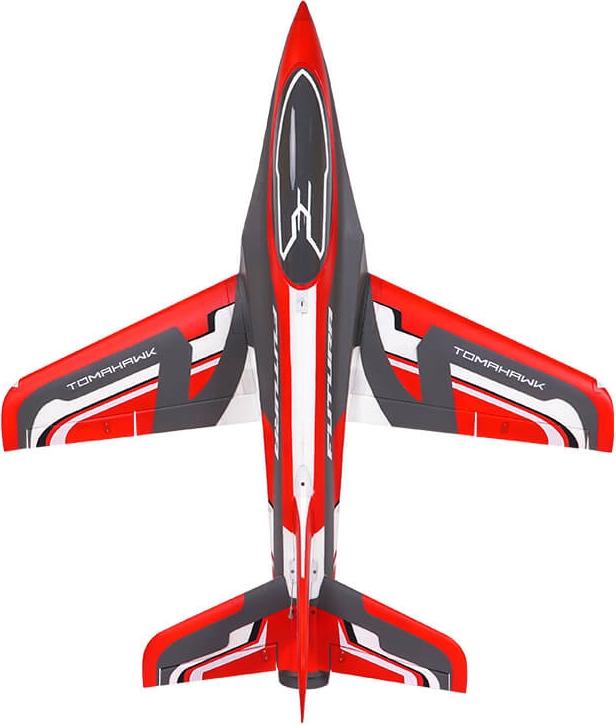

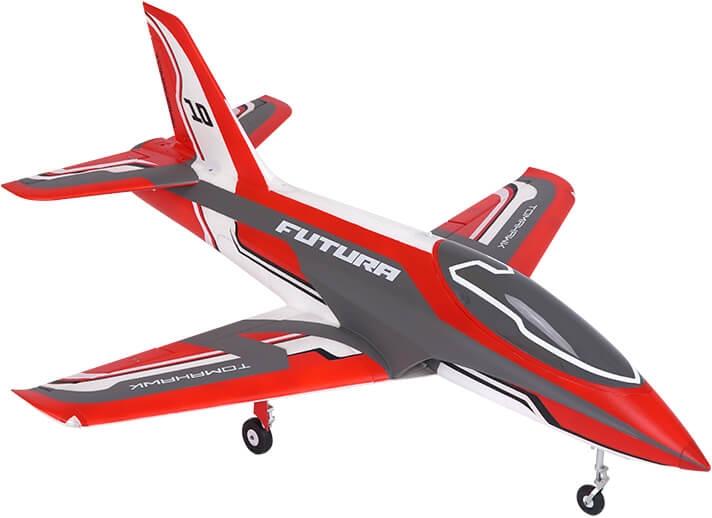

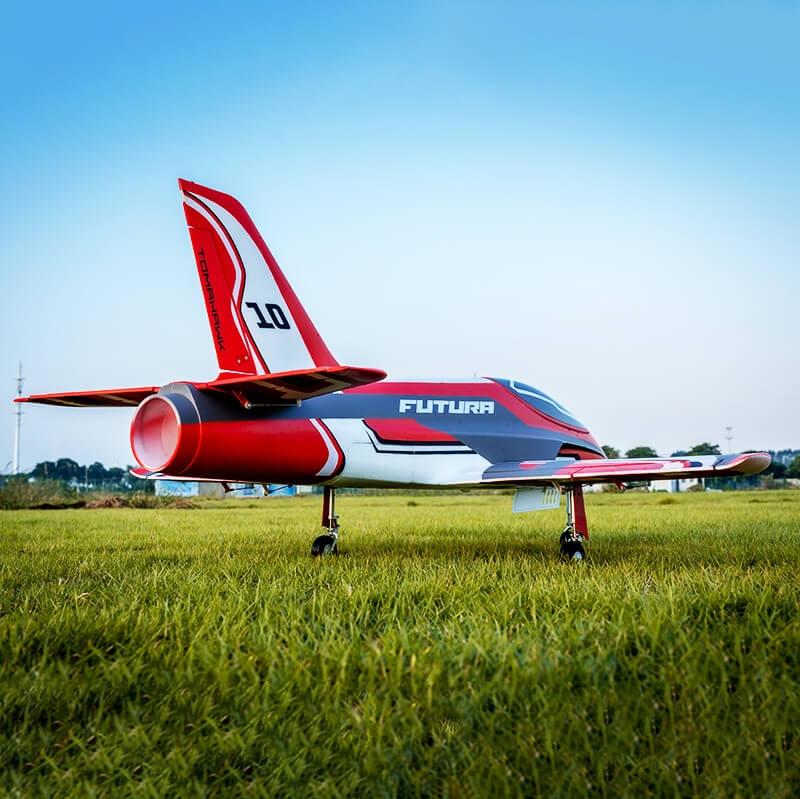

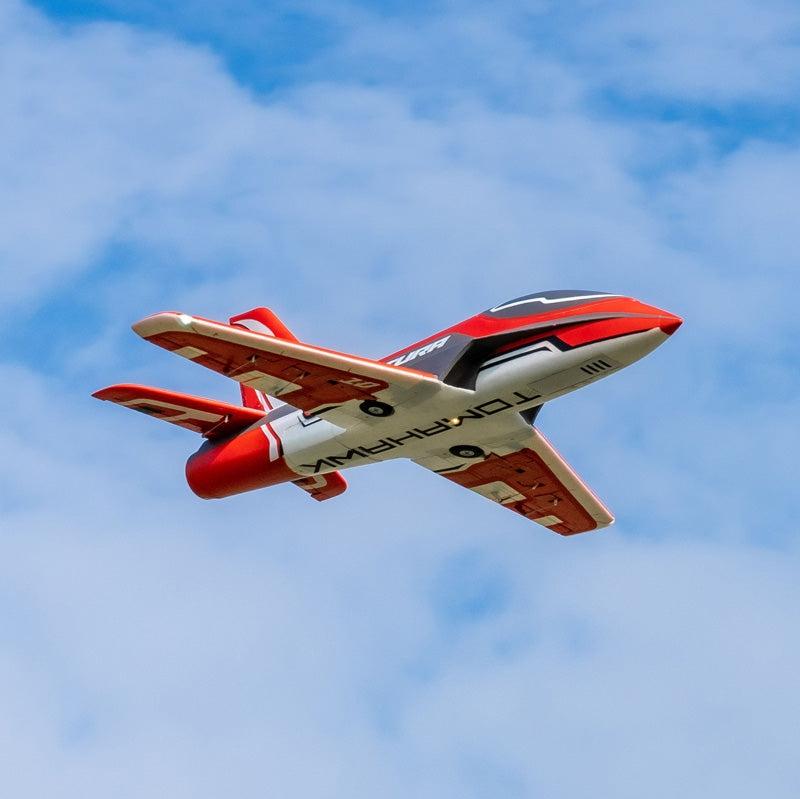

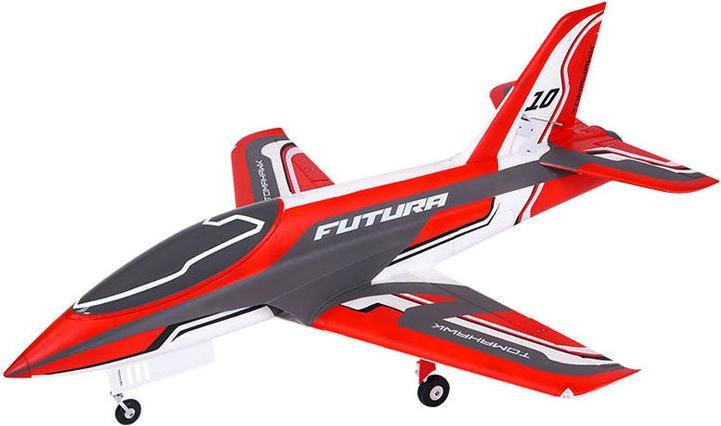

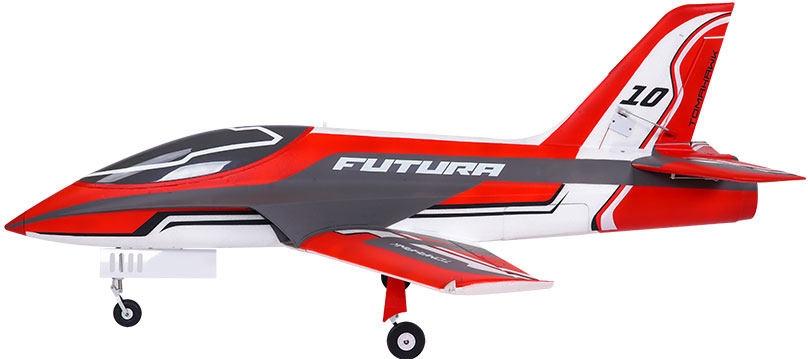

Futura V3 80mm EDF PNP
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... ARF Ducted Fan Electric Aircraft
But only from... FMS MODEL
All items from... FMS MODEL
But only from... FMS MODEL
All items from... FMS MODEL
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
1060 mm
Wingspan:
22 sq dm
Wing Area:
113.6 g/sq dc
Wing Loading:
1170
Length:
2500 g
Weight:
6 or more Channels
Radio Requirements:
6-Channels
Receiver Requirements:
22.2V 4000mAh 35C
Battery Requirements:
13g*8
Servo(s) Included:
80mm 12 bladed fan
Ducted Fan Included:
3665-KV2000
Brushless Motor Included:
100A EC5
ESC Included:
FEATURES

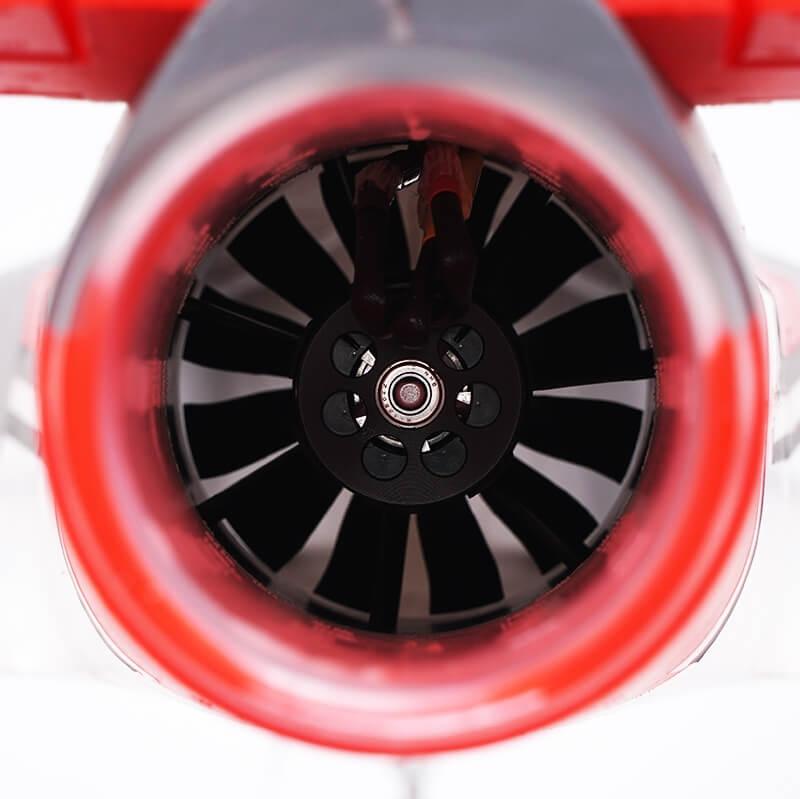

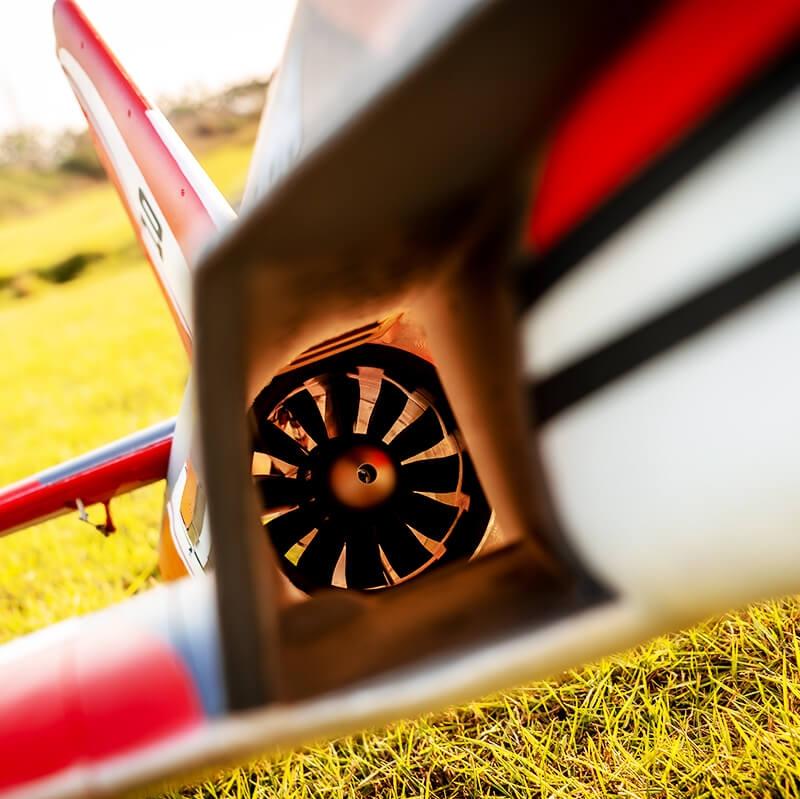

- Power system: Hobbywing 100A ESC, 3665-KV2000motor, 80mm 12 bladed fan.

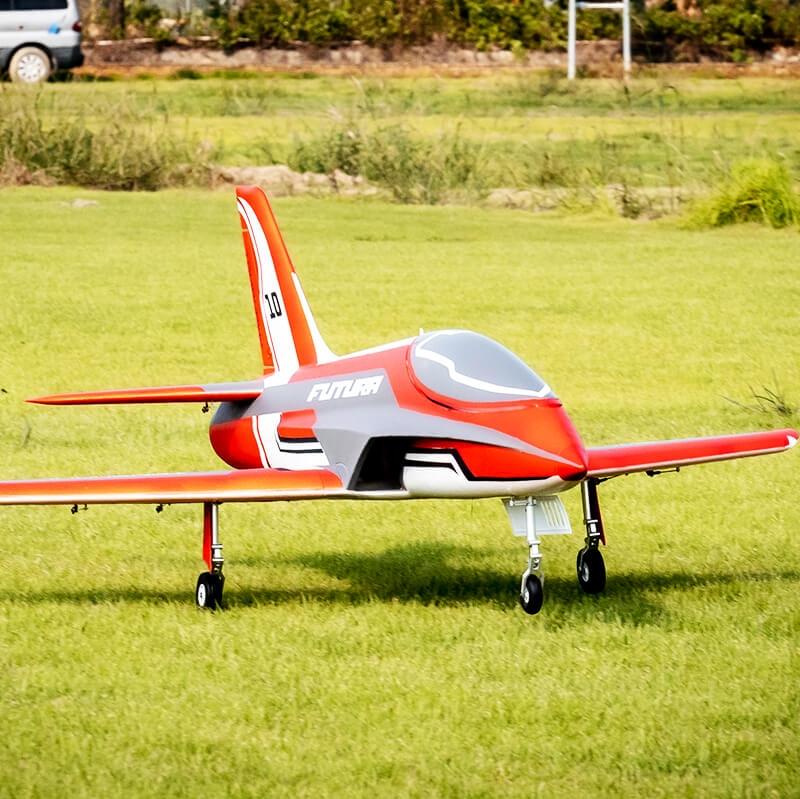

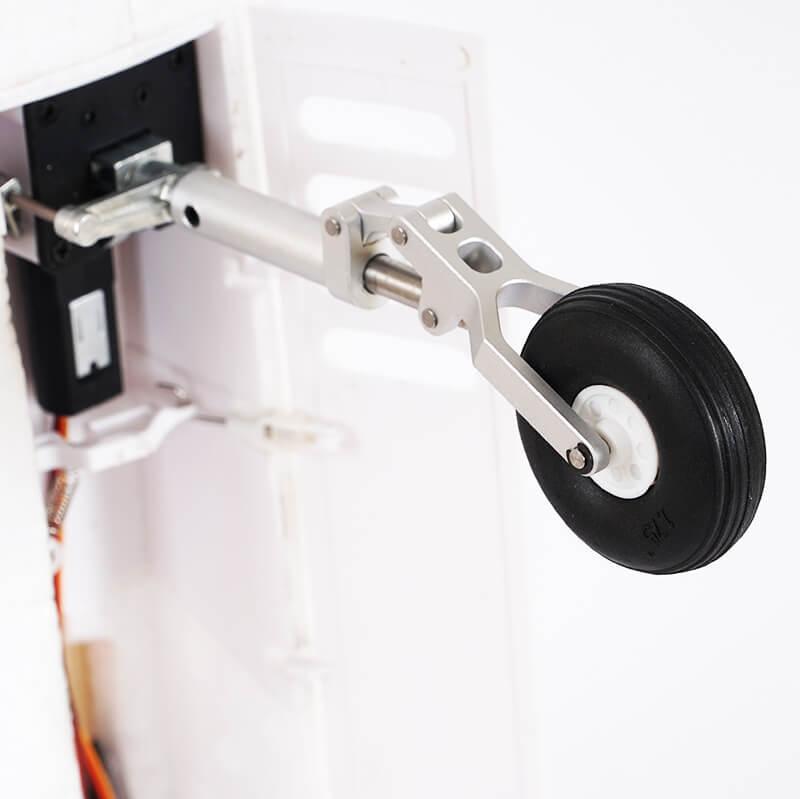

- CNC all-metal landing gear. 10mm diameter worm drive, trailing-link suspension, highly precise and robust.

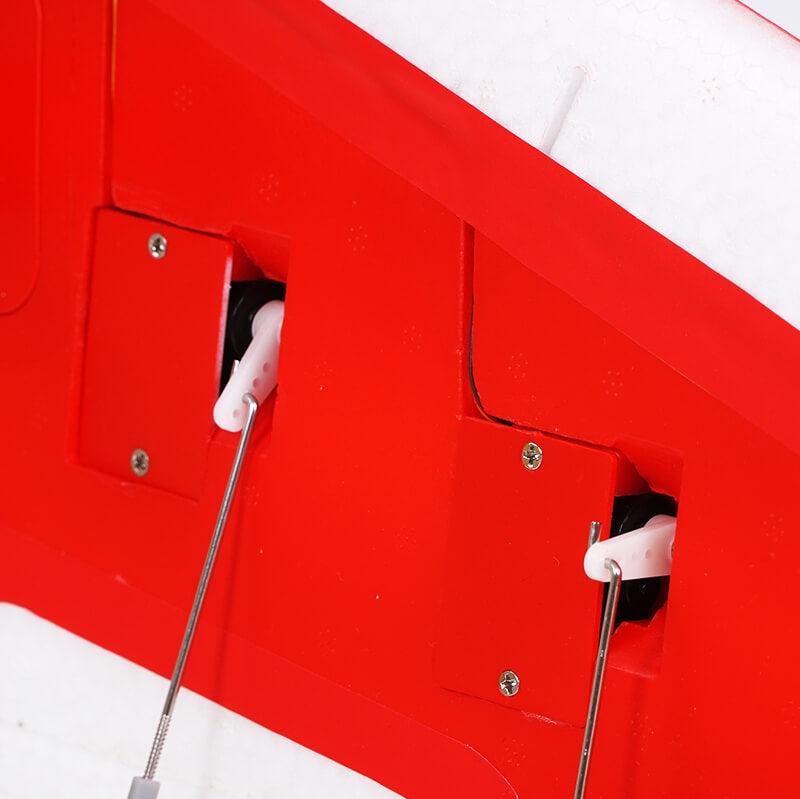

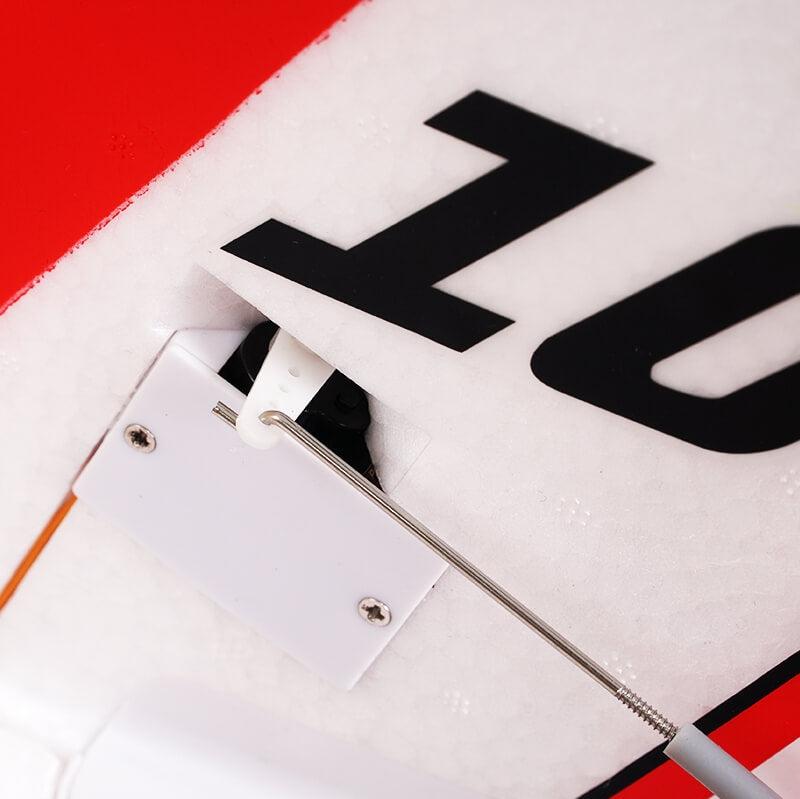

- All servos upgraded to 13g digital all-metal units for improved precision and torque.
- Large tires - suitable for rough-field operations.
- Oversized electronics bay for easy maintenance and accepts large capacity batteries.
- Glue-less assembly, the aircraft is built with only 10 screws.
- Environmentally friendly water-based paint.

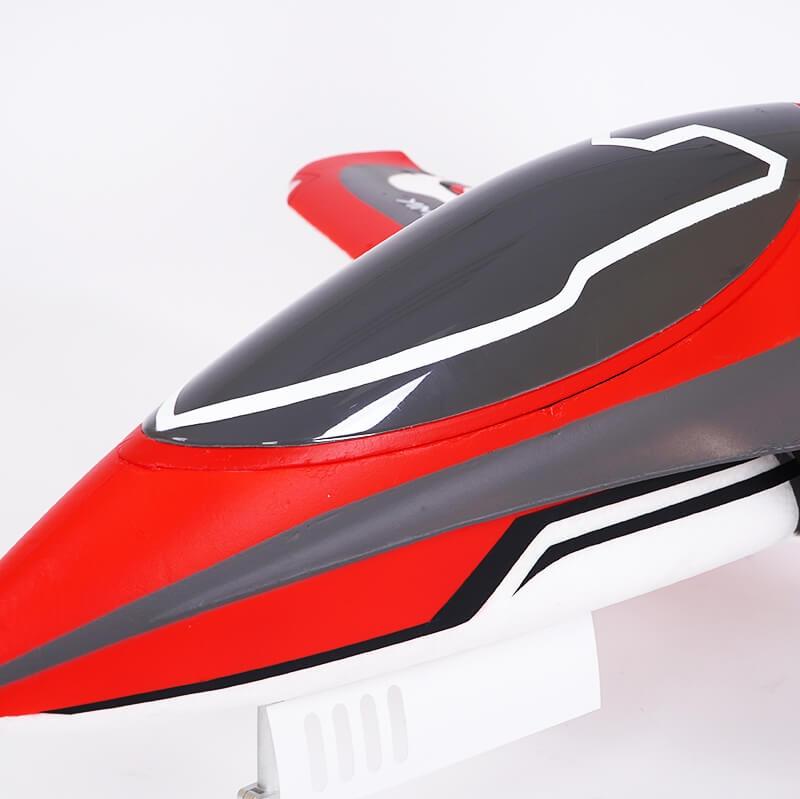

- Buckle design latch prevents unexpected canopy release in flight.
- Improved plug-type connectors for added durability and reliability.
- Added alternately flashing navigation lights on wings and taxi lights on the bottom of the fuselage for reproduction and fun to the flight.

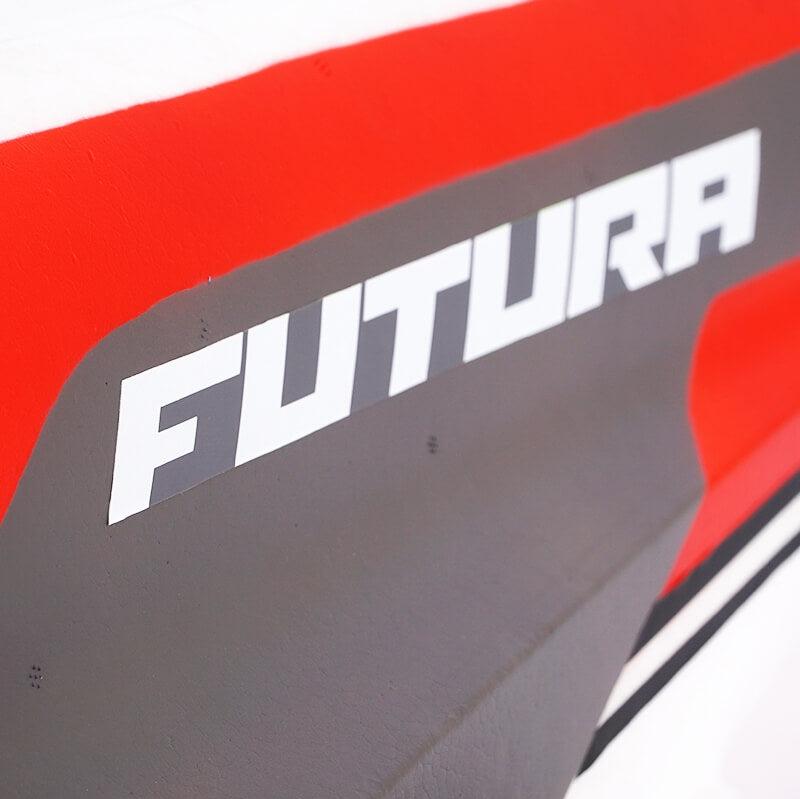

- Recognizable and attractive red-gray paint scheme.
click image to enlarge

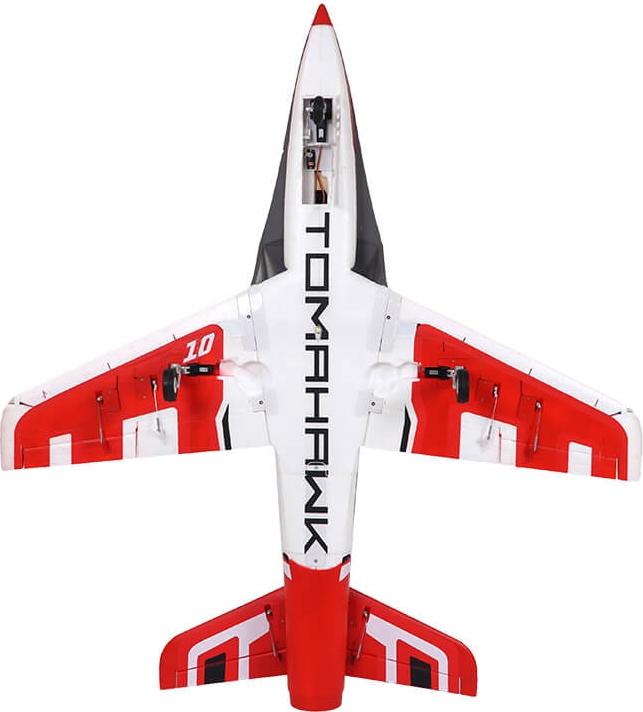

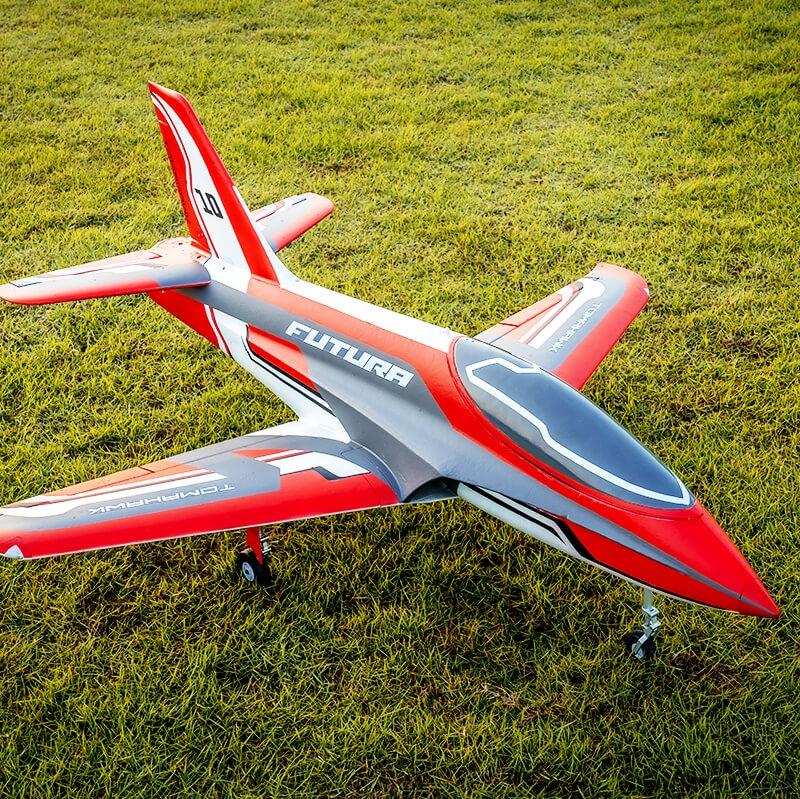

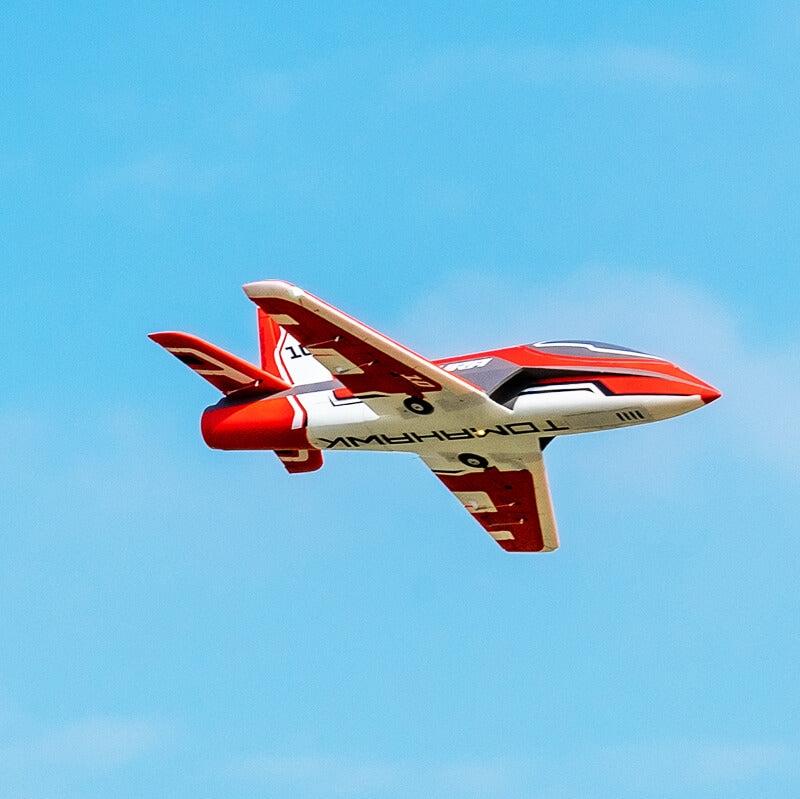

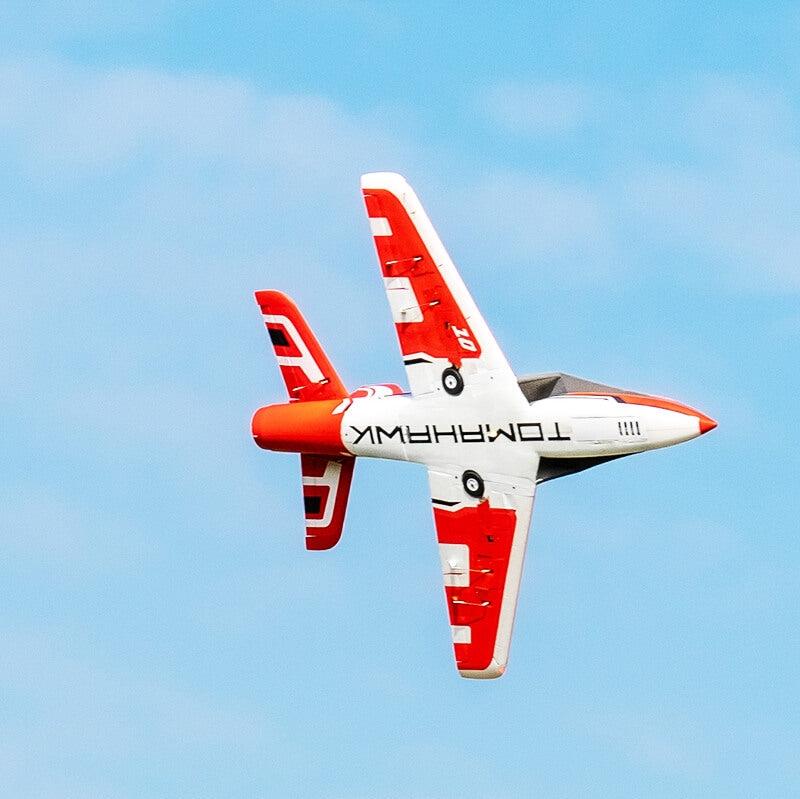

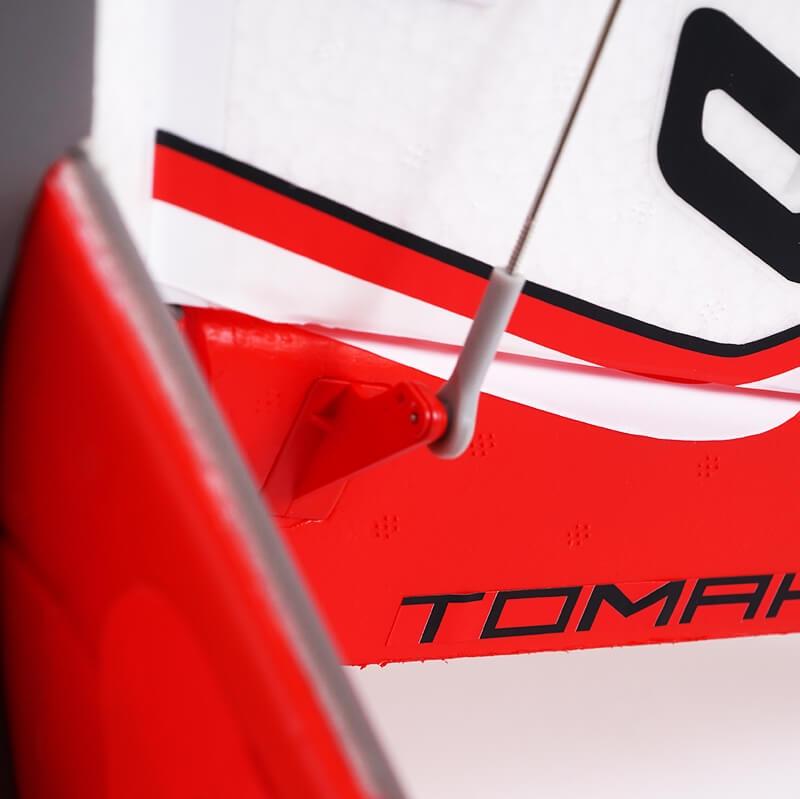

ADDITIONAL PHOTOS
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
