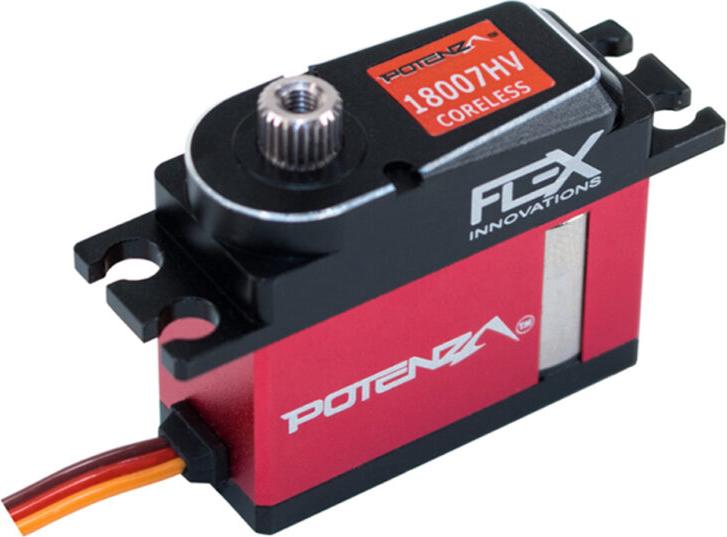

Potenza DS18007HV Coreless Mini Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Servos Digital
But only from... FLEX INNOVATIONS
All items from... FLEX INNOVATIONS
But only from... FLEX INNOVATIONS
All items from... FLEX INNOVATIONS
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
High Voltage
Type:
Standard
Connector Type:
29.5 mm
Length:
15 mm
Width:
35 mm
Height:
43 g
Weight:
Titanium
Geartrain:
Coreless
Motor Type:
6.0-8.4 v
Voltage Range:
13 kg-cm
Torque @ 8.4V:
0.07 sec/60°
Speed @ 8.4V:
FEATURES
HIGH VOLTAGE, CORELESS, DIGITAL SERVO
Featured in the Flex Innovations Ventique 60E G2 PRO SUPER PNP and a perfect fit for the FlexJet PRO!
High-Performance mini servo for today’s demanding applications!
Features:
- High Voltage for native 2S LiPo use (Recommended)
- Powerful coreless motor runs cool, draws little current
- Titanium gears for super strength and minimal weight
- Low Dead-band digital amplifier for strong and precise control
- Full CNC Aluminum Case for strength and heat dissipation
- Ball Bearing for the output shaft
- Standard JR style Connector
FPZDS18007HV
