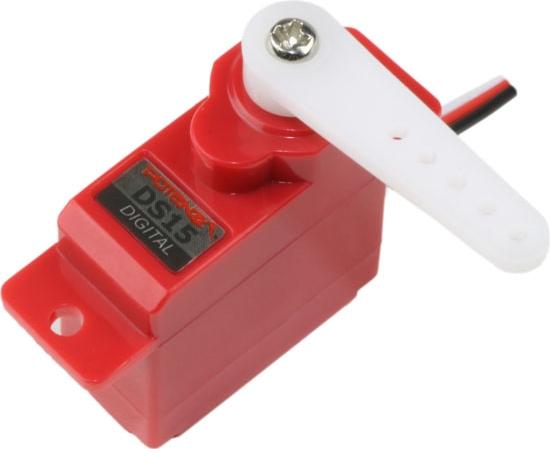

Potenza DS15 Digital Sub-Micro Servo w/350mm Wire
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Servos Digital
But only from... FLEX INNOVATIONS
All items from... FLEX INNOVATIONS
But only from... FLEX INNOVATIONS
All items from... FLEX INNOVATIONS
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Sub-Micro
Size Class:
Standard
Connector Type:
26 mm
Length:
12 mm
Width:
32 mm
Height:
17 g
Weight:
All Metal
Geartrain:
Coreless
Motor Type:
5.0-6.0 v
Voltage Range:
2.2 kg-cm
Torque @ 6.0V:
.13 sec/60°
Speed @ 6.0V:
FEATURES
HIGH PERFORMANCE SUB-MICRO SIZE DIGITAL METAL GEAR 15G SERVO
Featured in the Mamba 10G1, QQ Extra 300 G2.
Features:
- Used for All flight surfaces of Mamba 10G1 and QQ Extra 300 G2.
- Metal gears for super durability.
- Low dead-band improved digital amplifier for strong and precise control
- Unbeatable value; compare these features, performance, and price
- Standard Servo Connector
- Optimized for 5v BEC operation
- 350mm Wire Lead
- Works as replacement for DS19
