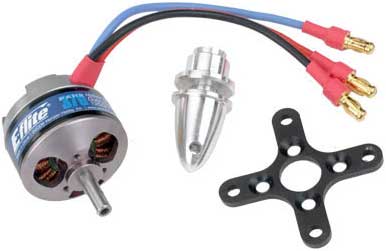

Park 370 BL Outrunner Motor w/HS 1200KV
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Brushless Outrunner
Type:
Park 370
Size:
8x3.8 - 10x4.7
Prop Range:
7.2 - 12V
Voltage Range:
1200
Kv:
18 ohms
Resistance:
60 A
Idle Current:
10 A
Continuous Current:
12 A
Max Burst Current:
12-20 A
ESC Requirements:
45 g
Weight:
28 mm
Overall Diameter:
4 mm
Shaft Diameter:
25 mm
Overall Length:
FEATURES
- Ideal for models requiring up to 120 watts of power
- Optimized windings for 3D performance
- High-torque, direct-drive alternative to inrunner brushless motors
- Includes mount, prop adapters and mounting hardware
- 4mm hollow shaft is easily reversed for alternative motor installations
- Excellent motor for small 3D airplanes 7-14 oz (200-400 g)
- Extremely lightweight - just 1.6 ounces
- Ideal for variable pitch props such as the E-flite Showstopper Variable Pitch Prop System
- External rotor design for better cooling
- High-quality construction with ball bearings
E-flites latest Park 370 is a brushless outrunner motor that features a 4mm hollow shaft, ideal for use with variable pitch propellers. It's perfectly designed for electric models equipped with variable-pitch propeller systems, such as the E-flite ShowStopper VPP system. However, you don't need a VPP to use this motors an excellent motor for small 3D airplanes that weigh 7-14 ounces. A motor mount, prop adapter and all hardware are included.
