EFL3350

PT-17 1.1m BNF Basic AS3X/SAFE 15BL

E-FLITE

EFL3350
PT-17 1.1m BNF Basic AS3X/SAFE 15BL
By E-FLITE
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... ARF Park Flyer Electric Aircraft
But only from... E-FLITE
All items from... E-FLITE


 Inventory Status Legend
StockStock availability for on-line ordering
0
$319.99
Warehouse ?
StockStock availability for pick up
0
$319.99
Warehouse ?
0
$319.99
Store - Stratford ?
0
$319.99
Store - Edmonton ?
0
$319.99
Store - Mississauga ?
0
$319.99
Store - Ottawa ?
0
$319.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
AS3X Programming Cable - USB Interface
$34.99

EC3 Connector Set Male/Female
$8.99

EC3 Battery Connector Female (2)
$7.99

Sub Micro Servo 9g
$14.99
Li-Po Charge Protection Bag Sm 8.5" x 7"
$19.99

Electric Propeller 11x7
$19.99

Park Flyer Tool Assortment 5pk
$26.99

Li-Po Charge Protection Bag LG 11.75" x 9"
$24.99
SPECIFICATIONS
44.6 in
Wingspan:
643 sq in
Wing Area:
33.5 in
Length:
51.2 oz
Weight:
3 cell 2200mAh Li-Po
Electric Flight Battery Requirement:
AS3X Receiver with Optional SAFE Select Technology
Receiver Included:
9 gram servos
Servo(s) Included:
Motor P-47 850 KV
Brushless Motor Included:
40 AMP Brushless ESC
ESC Included:

FEATURES
  • A park-size scale flight experience with sporty performance
  • Vivid U.S. Navy inspired trim scheme
  • Optional SAFE Select flight mode for newer pilots
  • Goes together fast-only 6 screws required for initial assembly
  • Durable construction with lightweight EPO foam
  • Tool-free field assembly features a quick-release wing mounting system

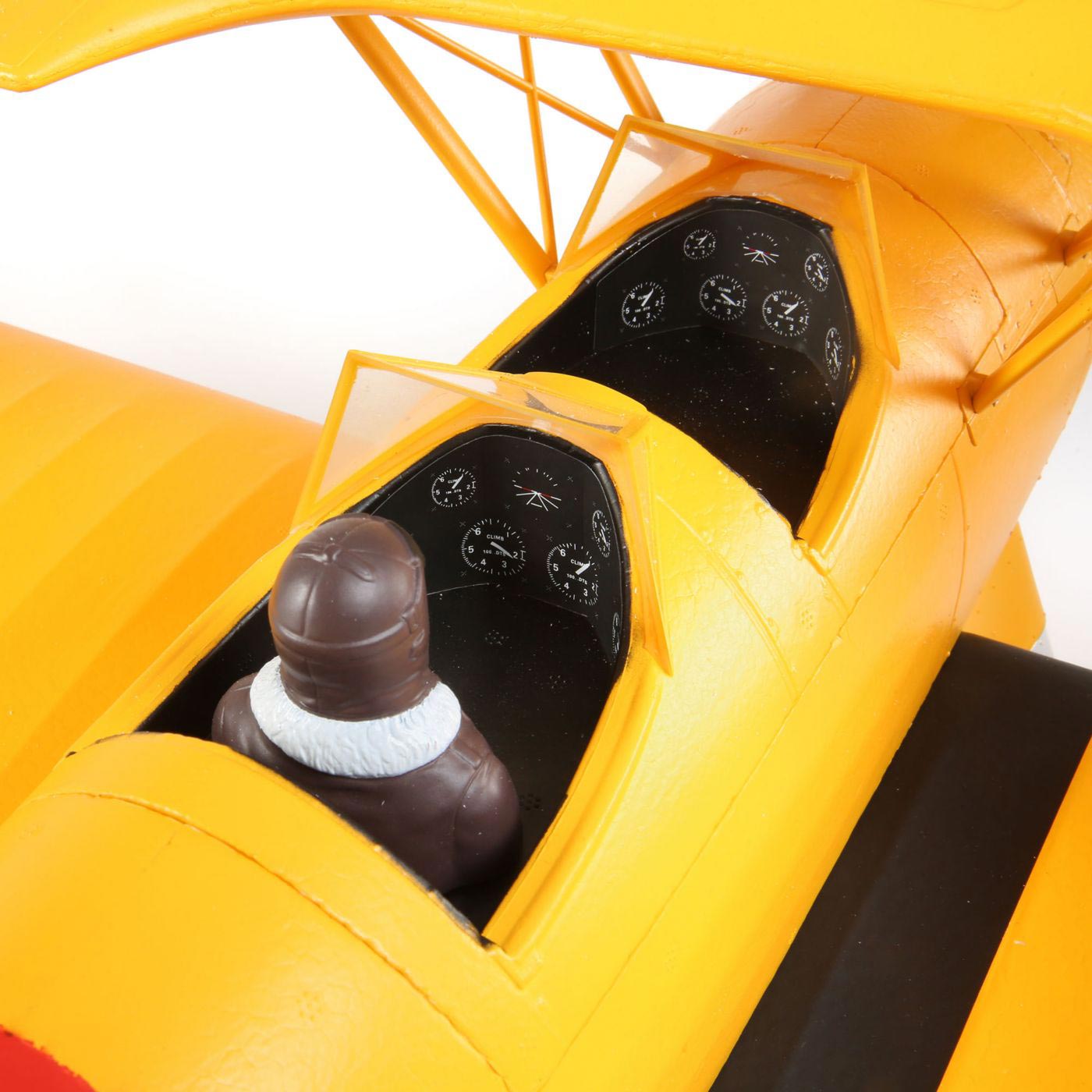

  • Realistic detail includes a dummy radial engine and pilot figure
  • Shock-absorbing landing gear with authentic appearance
  • Spektrum 6-Channel DSMX receiver with AS3X stabilization installed
  • Powerful 15-size brushless motor and 40A ESC installed
  • Large, easy-access battery hatch with magnetic closure
  • Simple 4-channel control with 4 micro servos installed
  • Ideal for use with 2200-3000mAh 3S 11.1V LiPo packs

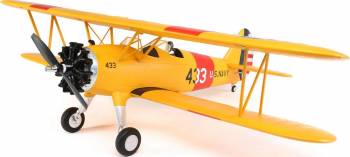

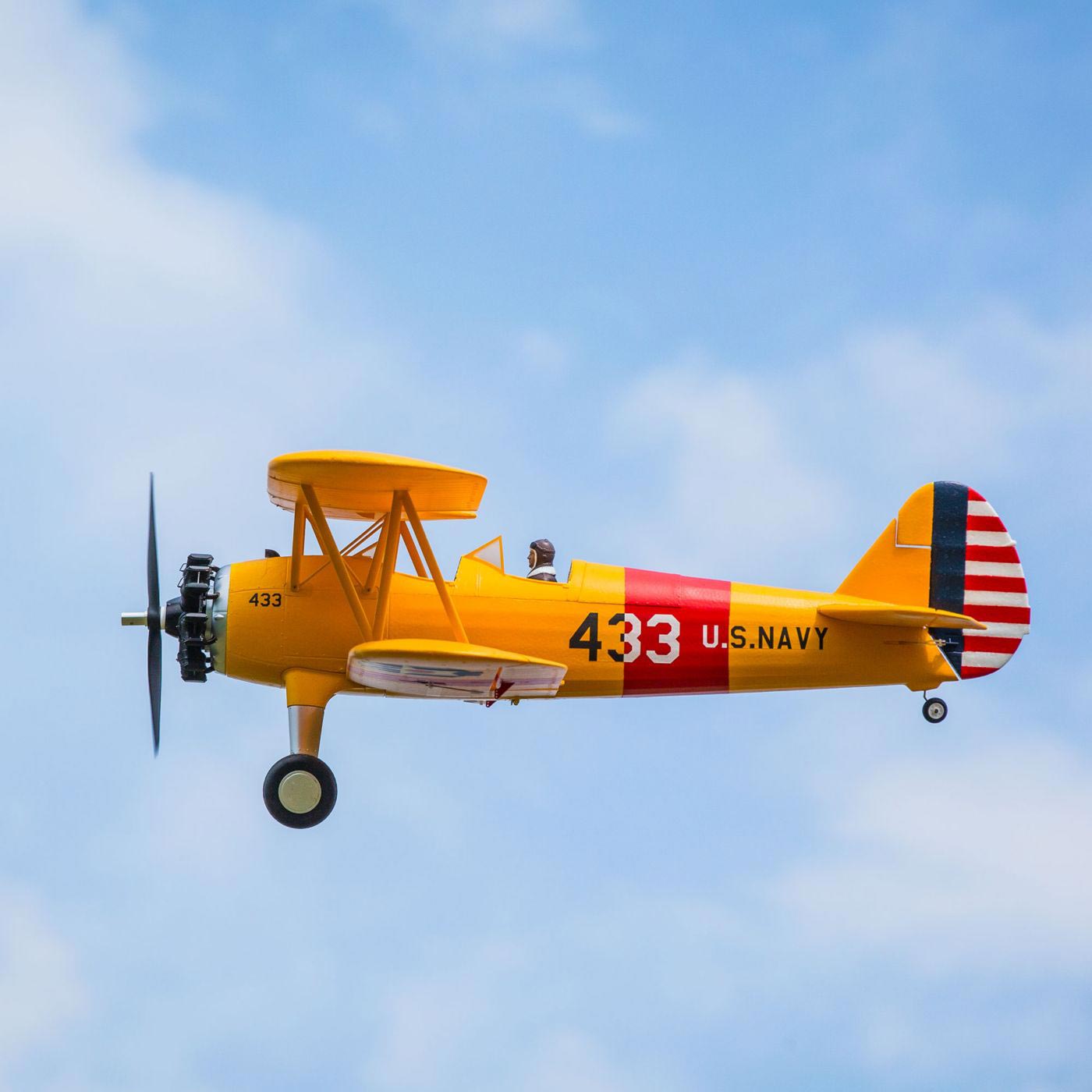

Let the E-flite PT-17 1.1m take you back to an era that launched a legendary generation of fighter aces. This perfect park-size replica is rich in scale detail and the kind of modern performance that makes going beyond basic aerobatic flight fun.

Every WWII allied fighter ace got their start somewhere. Chances are, most started off in a PT-17. Simple, tough and made by the thousands, both the U.S. Army and U.S. Navy used the biplane for its admirable ability to help new pilots survive the basics and master the art of flight, all in the shortest amount of time possible. The E-flite PT-17 1.1m electric park flyer replicates the most iconic trainer of WWII with exquisite detail and the kind of performance that makes scale flying the way it should be—simple, fun and without compromise.

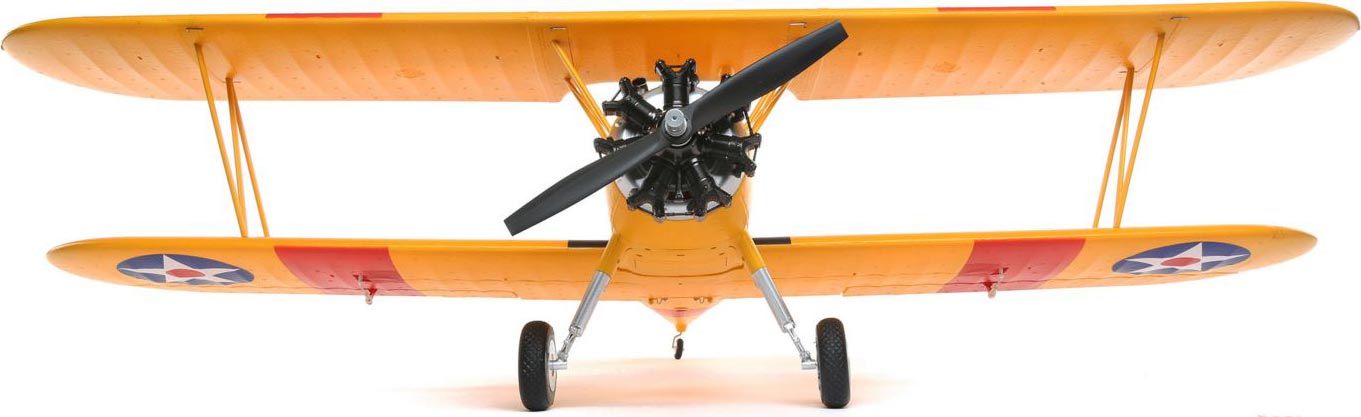

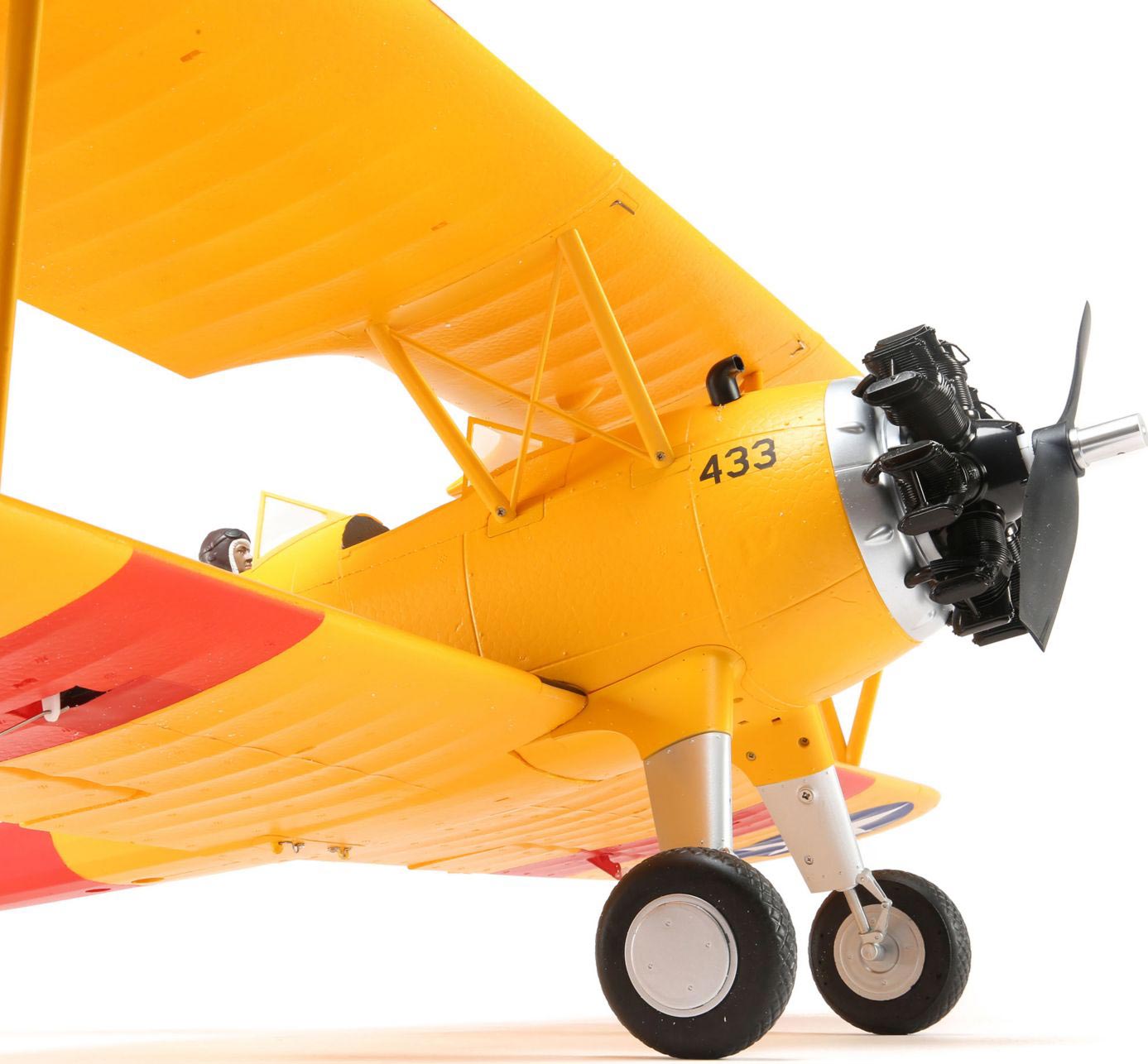

The E-flite PT-17 1.1m has everything you could ask for in a classic biplane. First and foremost is the period-correct 7-cylinder dummy radial engine, complete with intricate ignition and exhaust details. The Navy-inspired trim scheme is highlighted with wing rib and fuselage frame work accented with accessory and paneling detail. Shock-absorbing action of the aluminum struts add functional authenticity you’ll appreciate during touchdowns and rolling over grass. While it’s easy to be overwhelmed by the scale complexity, getting this beauty in the air requires less effort than you might think. Field assembly features a quick-release wing mounting system, which means no tools are required. Even battery installation is simple through the large magnetic top hatch that accommodates a wide range of 3S LiPo batteries. Unlike the modestly equipped full-scale original, a 15-size brushless outrunner motor delivers ample thrust so you can perform sport aerobatics or just cruise the horizon with power to spare.

U.S. Navy Inspired Replica

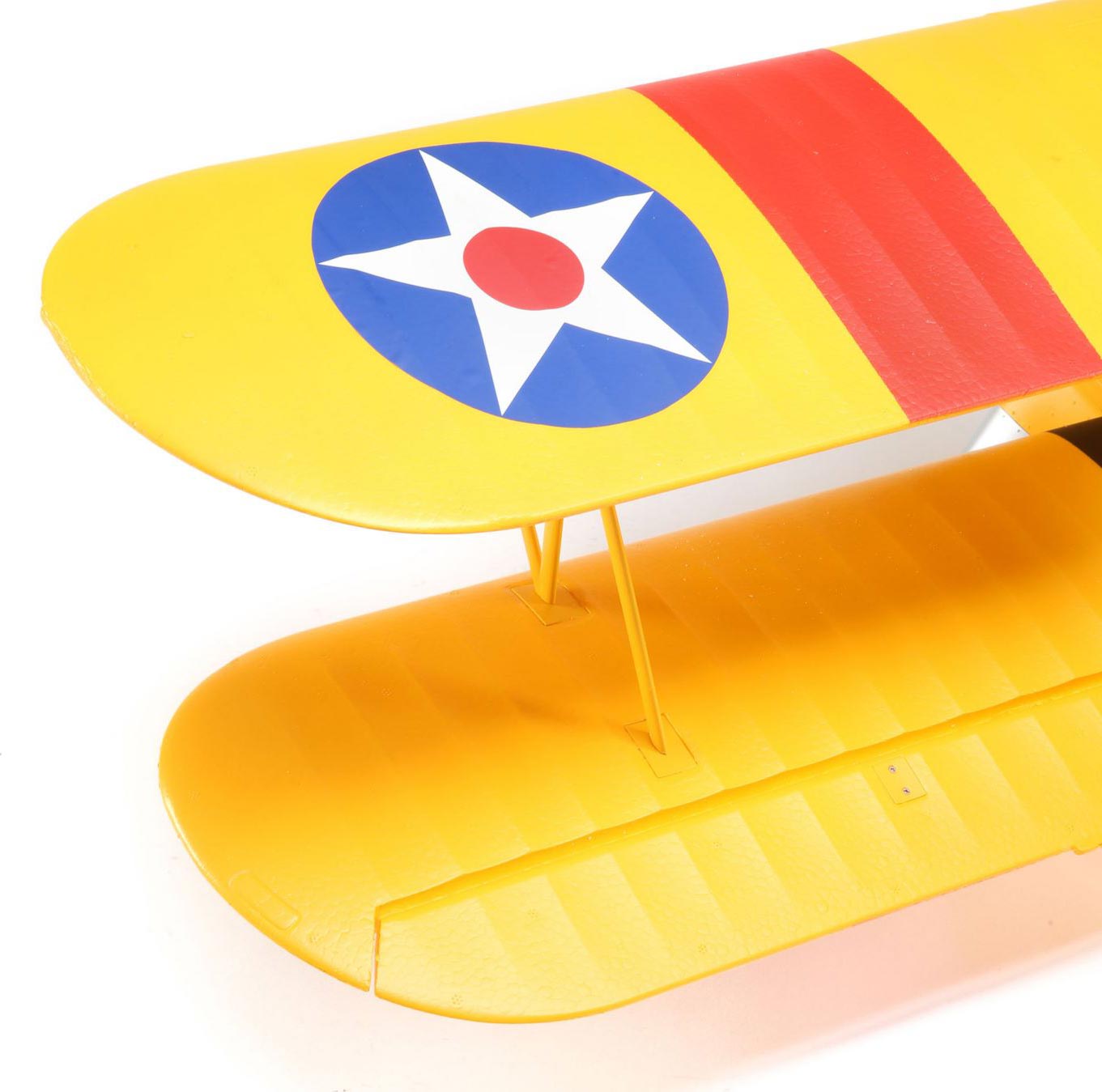

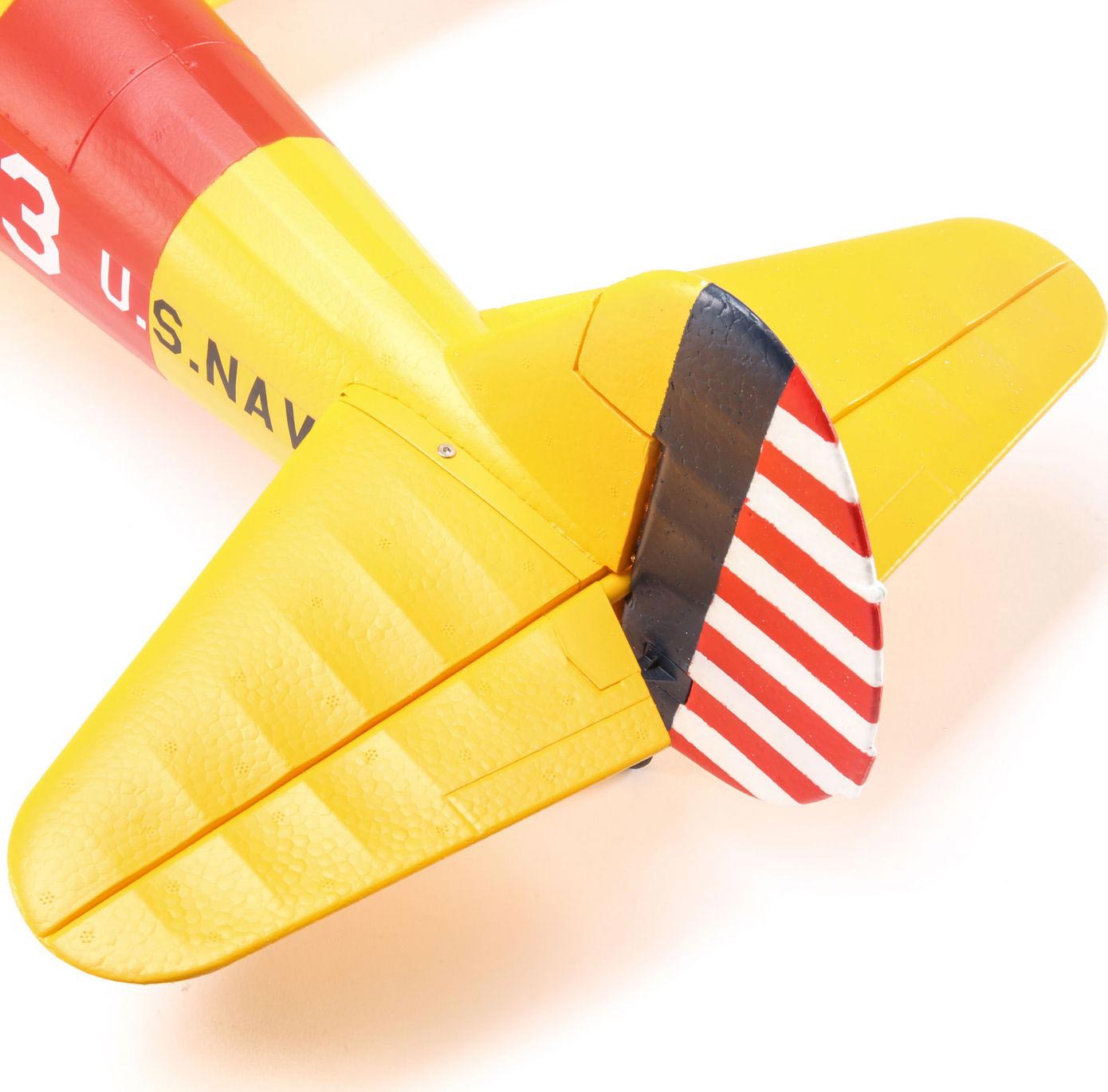

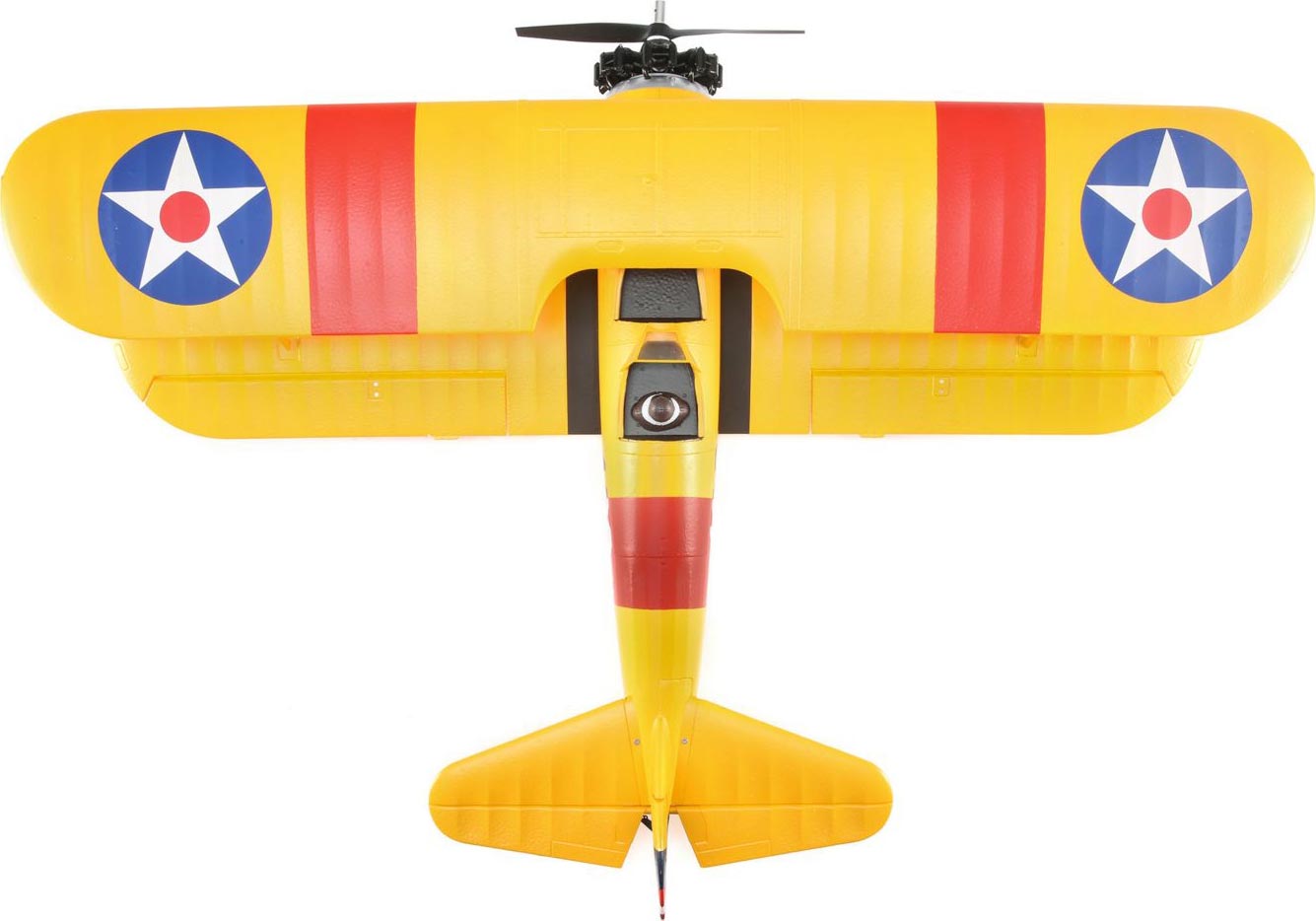

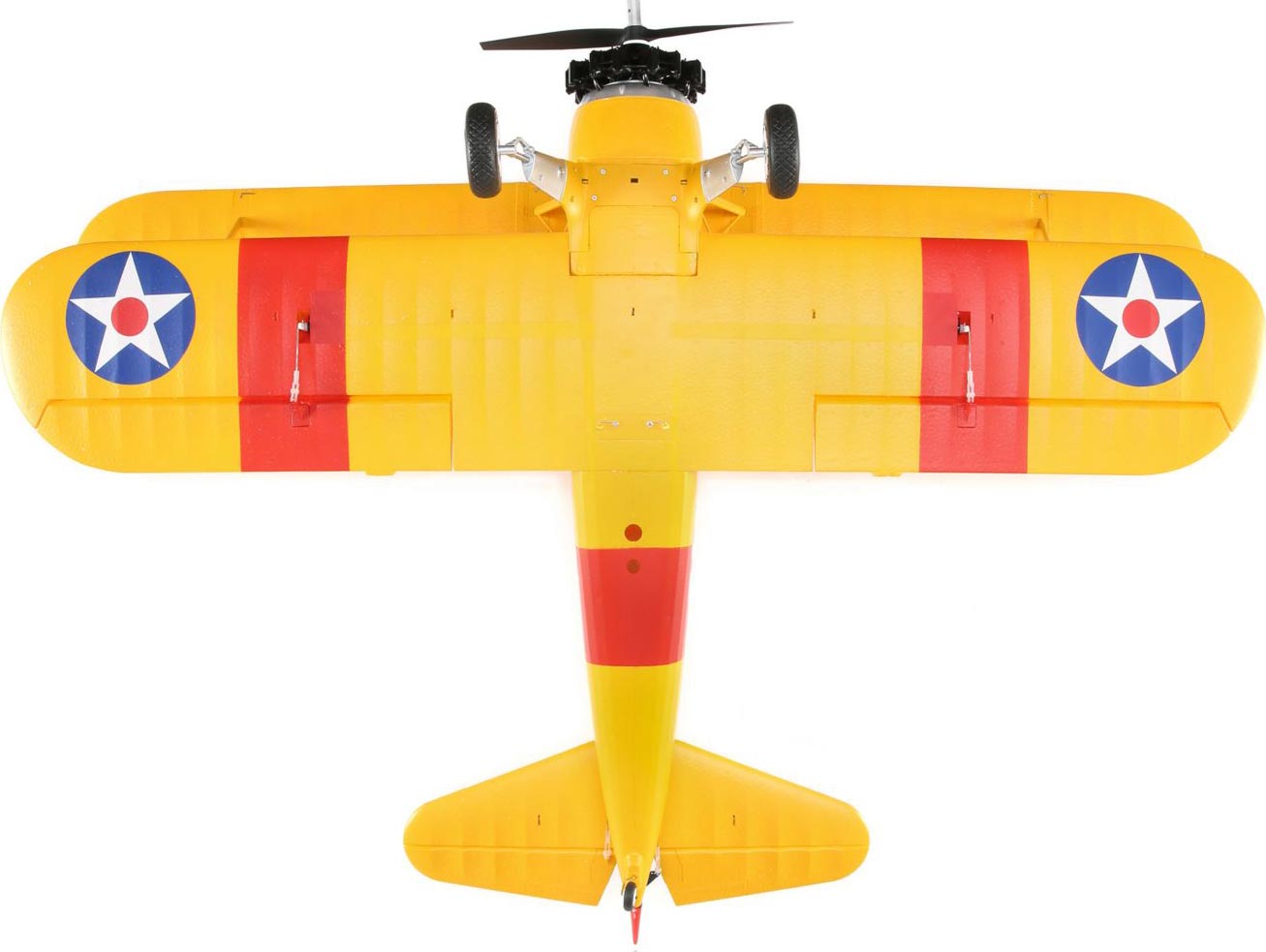

The vivid yellow trim scheme was inspired by the initial aircraft delivered to the U.S. Navy around 1942. Designated the N2S, it was identical to the PT-17 flown by the U.S. Army. Construction with durable EPO material makes it possible to replicate complex detail in a lightweight form. The result is an outstanding scale appearance that’s easy to maintain and allows the most satisfying flight experience possible to shine through.

Outstanding Realism
Out of the box, you only need to fasten six screws. At the field, no tools are needed to install the one-piece wings designed with a quick-release system that makes biplane assembly super simple.

Fast Assembly
Out of the box, you only need to fasten six screws. At the field, no tools are needed to install the one-piece wings designed with a quick-release system that makes biplane assembly super simple.

Brushless Power System
The power system features a 15-size brushless, 850Kv outrunner and a 40-amp ESC that when combined with your 2200mAh 3S 25C Li-Po battery delivers outstanding thrust.

Shock-Absorbing Landing Gear
The shock-absorbing action of the aluminum struts coupled to concealed spring-steel wire combines with the large scale wheels to add functional authenticity you’ll appreciate during touchdowns and while rolling over grass.

AS3X Receiver with Optional SAFE Select Technology
The model’s AS3X (Artificial Stabilization – 3-aXis) receiver works behind the scenes to smooth out the effects of wind and turbulence. The result is a sense of stability and precision that makes you feel like you’re flying an expertly tuned aircraft.

If you’re a relatively new pilot or want an extra margin of safety while familiarizing yourself with the airplane, you can enable the optional SAFE Select technology built into the receiver. No programming is required. Simply change up the binding sequence as directed in the manual.

With SAFE Select features enabled, you get:

Pitch and Bank Angle Limits
These keep the aircraft from rolling or pitching upside down. They also prevent excessive climb or dive angles during takeoff and landing.

Automatic Self-Leveling
Instantly returns the wings to level when the sticks are released.

Easy Switch Assignment—No Programming Required
The simple procedure for assigning a transmitter switch to turn SAFE Select features on and off doesn't require any programming and takes just a few seconds.

If you don’t want to enable the SAFE Select features, just bind the receiver normally and it will function like a standard AS3X receiver.

Bind-N-Fly Convenience
As an E-flite Bind-N-Fly Basic RC replica, you can enjoy air superiority in no time at all. Final assembly is minimal and can be complete in about the time it takes to charge your battery. Model Presets are also available to make Spektrum DSM2/DSMX transmitter programing even simpler, which means that getting into the air quickly has never been easier.

You will need...
Full-range, 5+ Channel DSMX/DSM2 transmitter
2200–3000mAh 3S LiPo flight battery
3S compatible LiPo charger
