832 Mid Profile High Torque Brushless Rock Crawling/Bashing Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
1/10
Size Class:
25 Tooth
Output Spline:
39.6 mm
Length:
20 mm
Width:
40 mm
Height:
63 g
Weight:
Steel
Geartrain:
Brushless Digital
Motor Type:
6.0-8.4 v
Voltage Range:
832 oz-in
Torque @ 7.4V:
0.09 sec/60°
Speed @ 7.4V:
883 oz-in
Torque @ 8.4V:
0.08 sec/60°
Speed @ 8.4V:
FEATURES
Features:
- Ideal for bashing and crawling platforms
- Brushless motor
- Waterproof
- High voltage circuitry
- Full steel gears
- Full aluminum black case

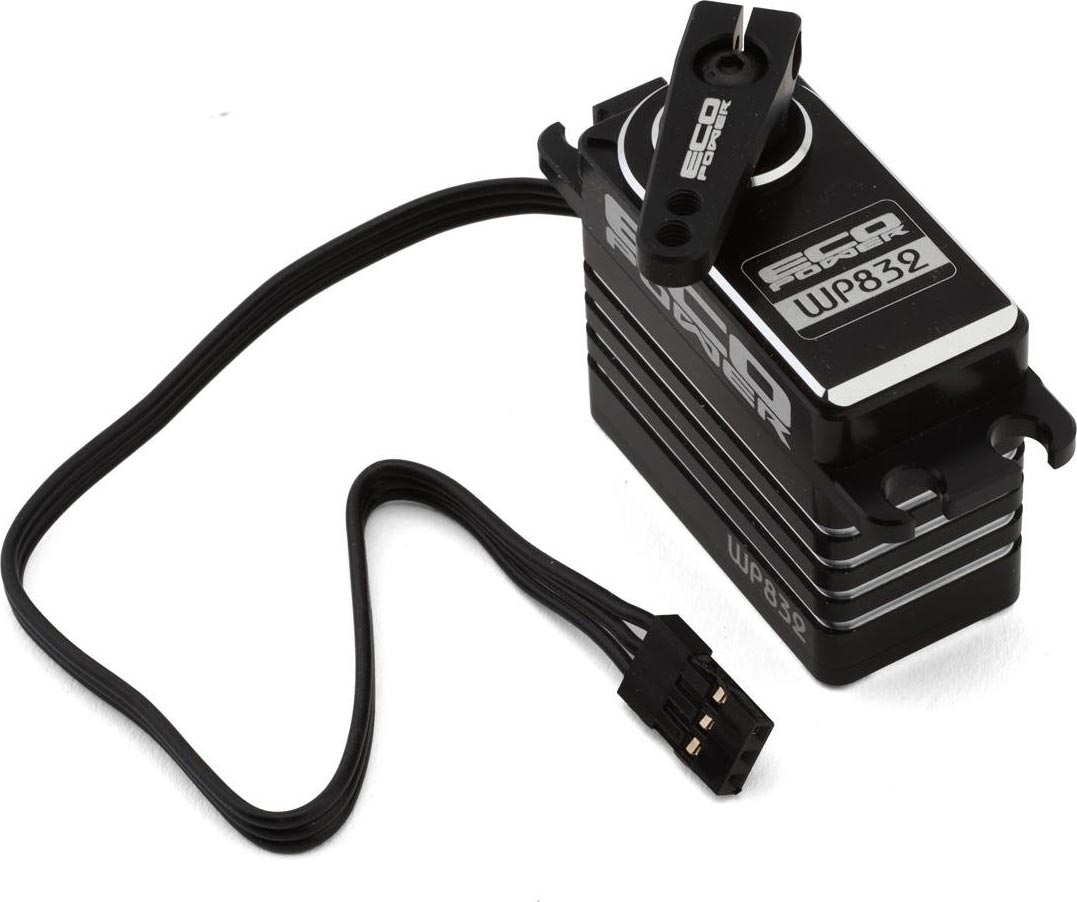

The 832 Mid Profile Servo brings together cutting-edge brushless technology and unmatched performance, delivering the holding power, speed, and precision that rival coreless servos. With the added advantages of brushless motors—greater efficiency and extended lifespan—this servo is the perfect choice for builds demanding top-tier reliability and accuracy. Housed in a sleek aluminum case the servo's design is both rugged and functional. Included is an aluminum single-arm clamping servo horn and a complete set of mounting washers for secure, long-lasting installation.
click image to enlarge
ADDITIONAL PHOTOS
|
|
PRODUCT RESOURCES
694485083056 0694485083056
ECP-832
