ECP827X24

WP827-X24 Metal Gear Micro Servo Direct Fit For AxialT SCX24 (HV)

Product Info
ECP827X24
WP827-X24 Metal Gear Micro Servo Direct Fit For AxialT SCX24 (HV)
By EcoPower
$32.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Servos Digital
But only from... EcoPower
All items from... EcoPower


 Inventory Status Legend
StockStock availability for on-line ordering
0
$32.99
Warehouse ?
StockStock availability for pick up
0
$32.99
Warehouse ?
0
$32.99
Store - Stratford ?
0
$32.99
Store - Edmonton ?
0
$32.99
Store - Mississauga ?
0
$32.99
Store - Ottawa ?
0
$32.99
Store - Oshawa ?
0
$32.99
Store - Halifax ?
0
$32.99
Store - Kitchener ?NOW OPEN!
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
1/24 & 1/18
Size Class:
25 Tooth
Output Spline:
23 mm
Length:
12 mm
Width:
31.75 mm
Height:
16 g
Weight:
6-8.4 v
Voltage Range:
48.6 oz-in
Torque @ 6.0V:
0.10 sec/60°
Speed @ 6.0V:
62.5 oz-in
Torque @ 8.4V:
0.08 sec/60°
Speed @ 8.4V:

FEATURES

*Tech Note: This servo is compatible with all SCX24 platforms and wheelbase EXCEPT the Deadbolt version!

Includes:

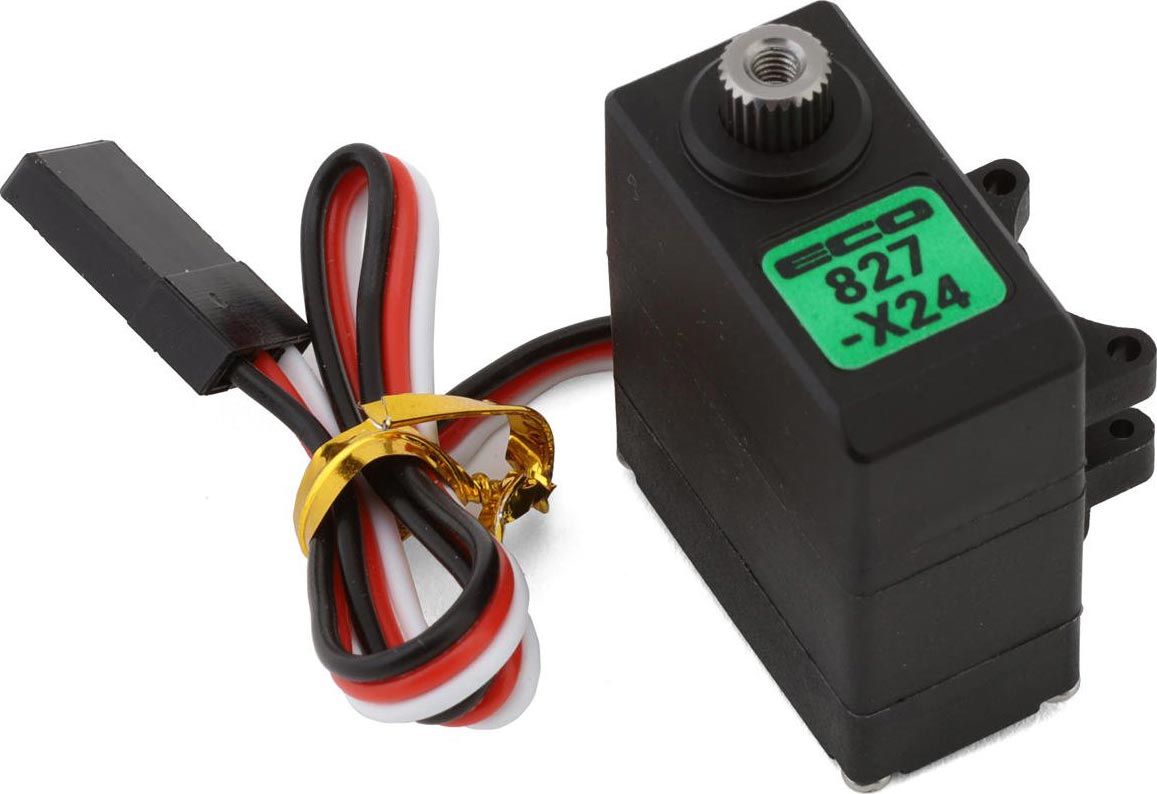

  • (1) WP827-X24 Digital Micro Servo

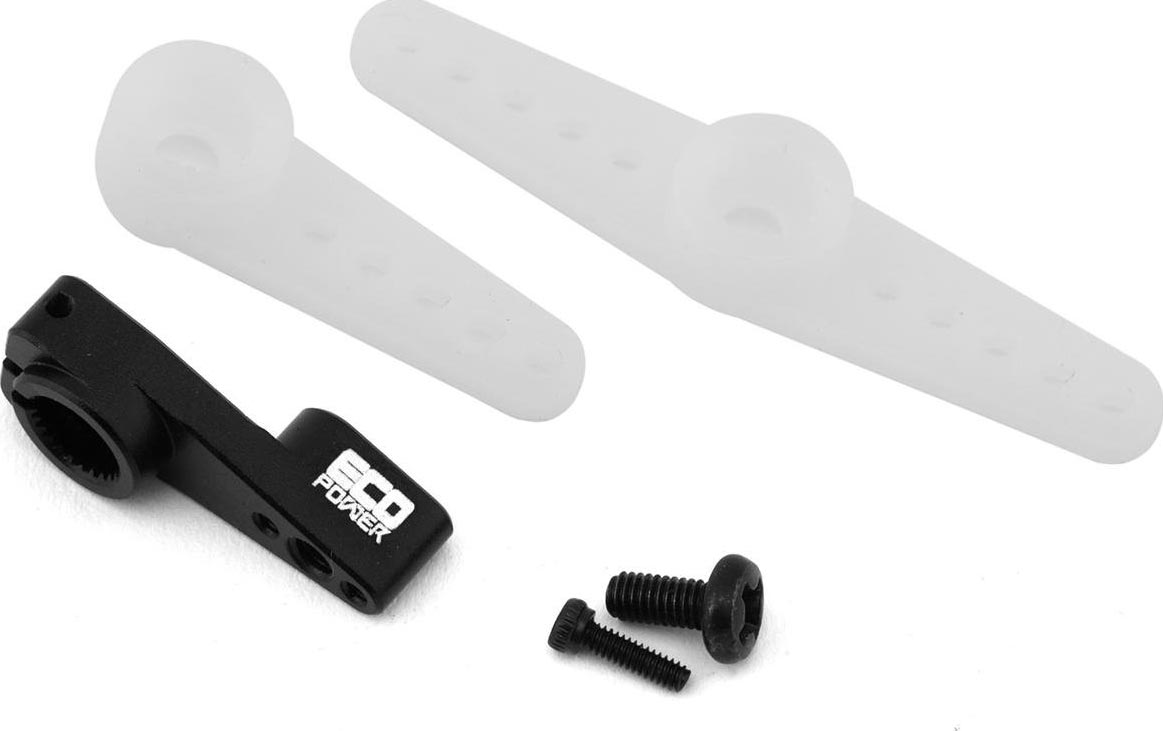

  • (1) Aluminum Servo Horn
  • (2) Composite Servo Horns

Features:

  • The ultimate budget upgrade for Axial™ SCX24
  • High torque and speed output
  • Innovative direct axle mount
  • Eliminates the need for separate servo mount
  • High voltage capable of operating on up to 8.4 Volts!
  • HD all metal gears and output shaft spline
  • Waterproof design
  • Powerful coreless motor
  • Includes a CNC-machined aluminum horn with multiple mounting holes
  • 1-year warranty

EcoPower is proud to introduce the WP827-X24 Digital Micro High-Voltage Servo! The most innovative and budget-friendly micro servo tailored specially for the Axial™ SCX24 platforms as the ultimate performance upgrade!

Design

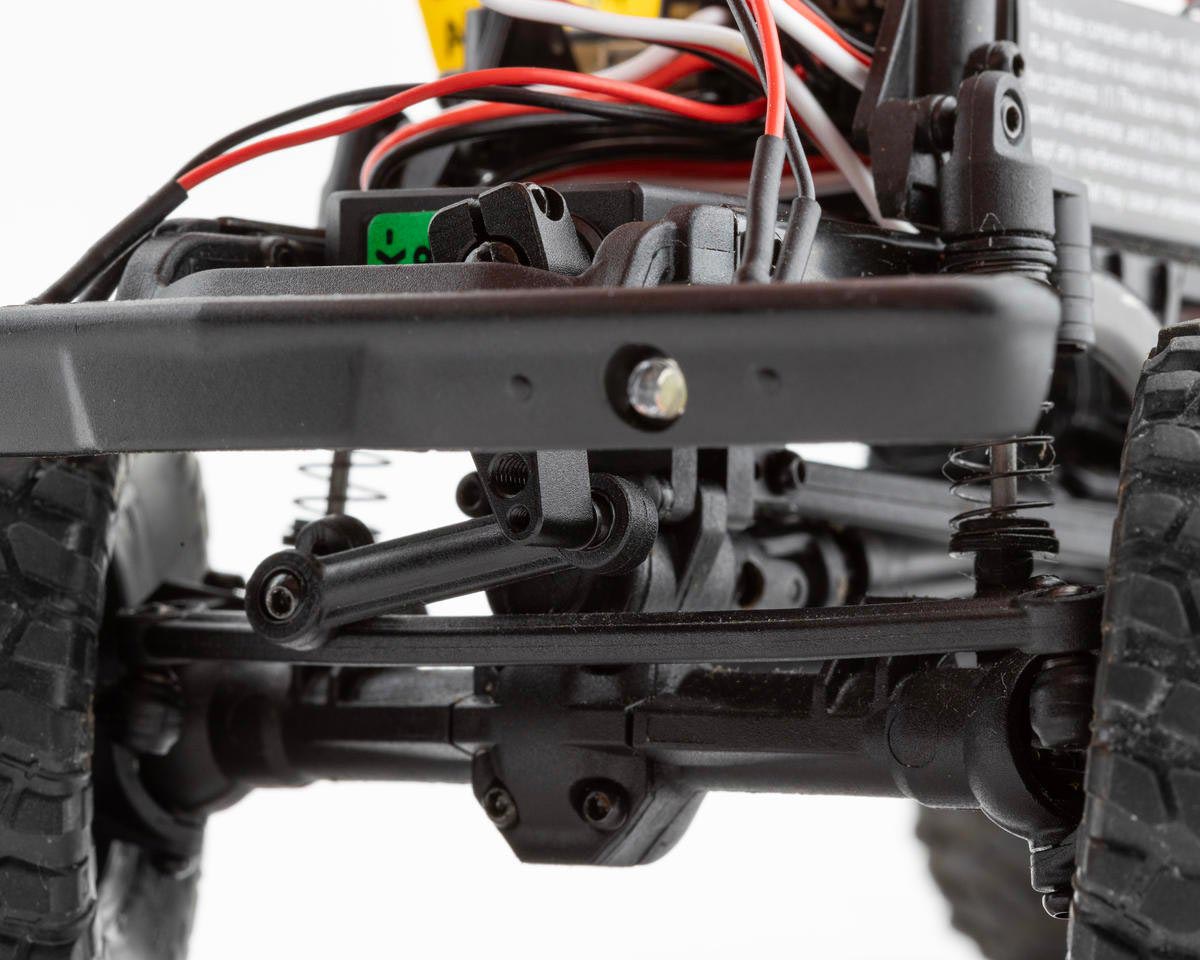

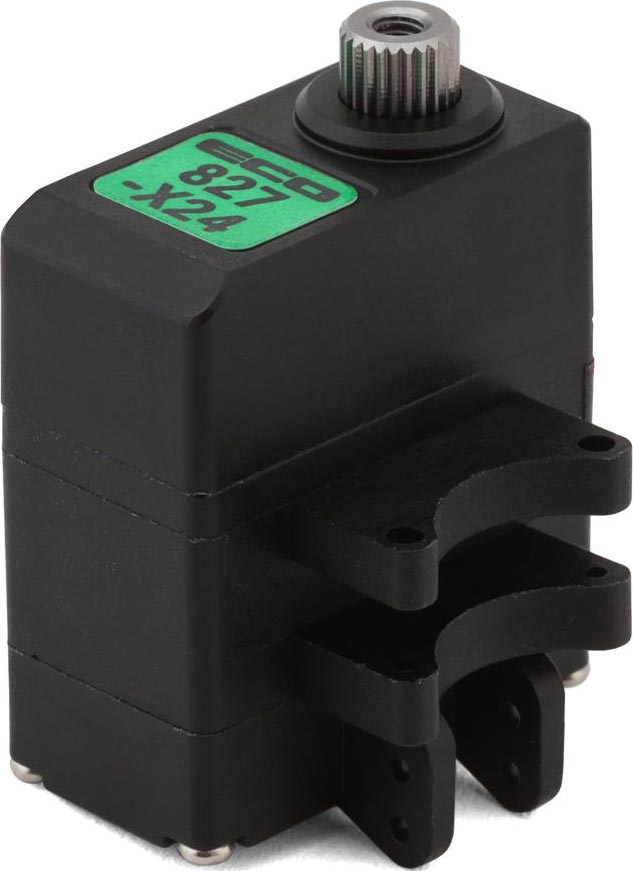

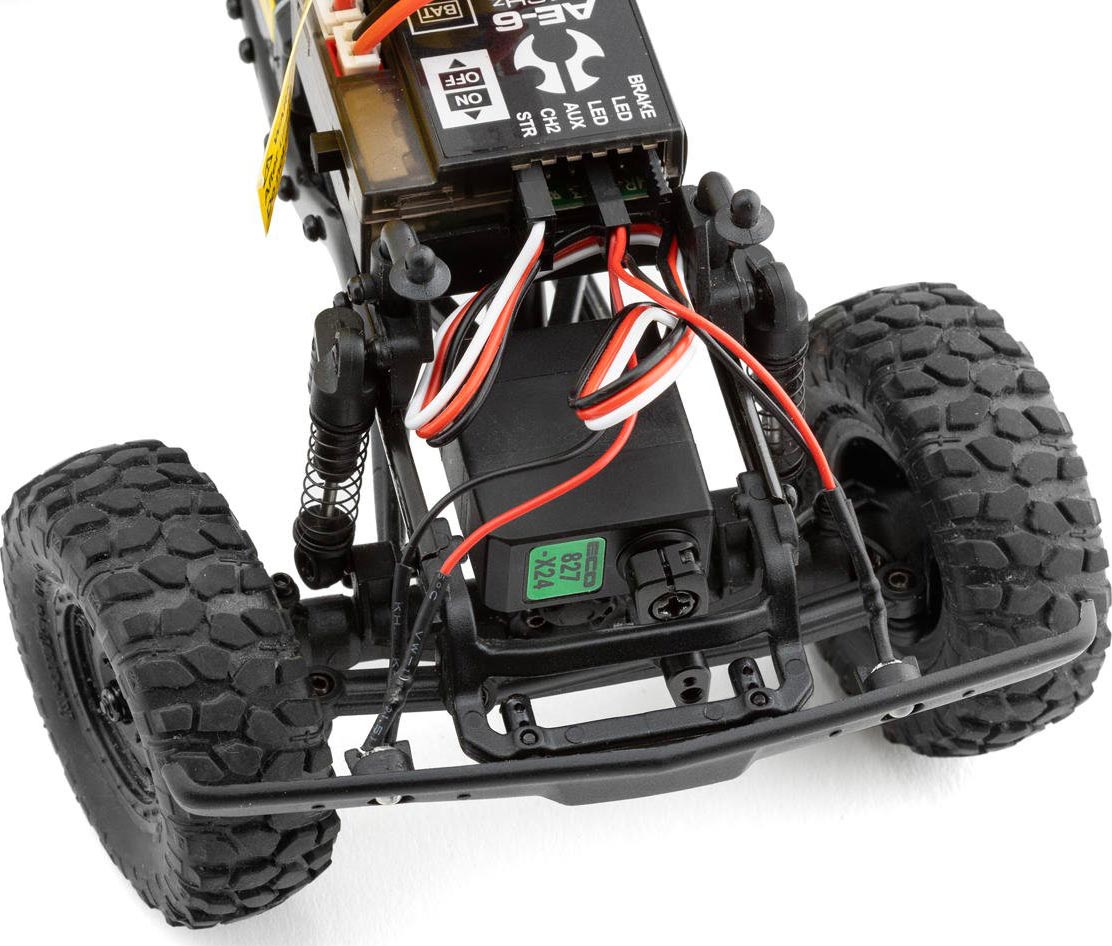

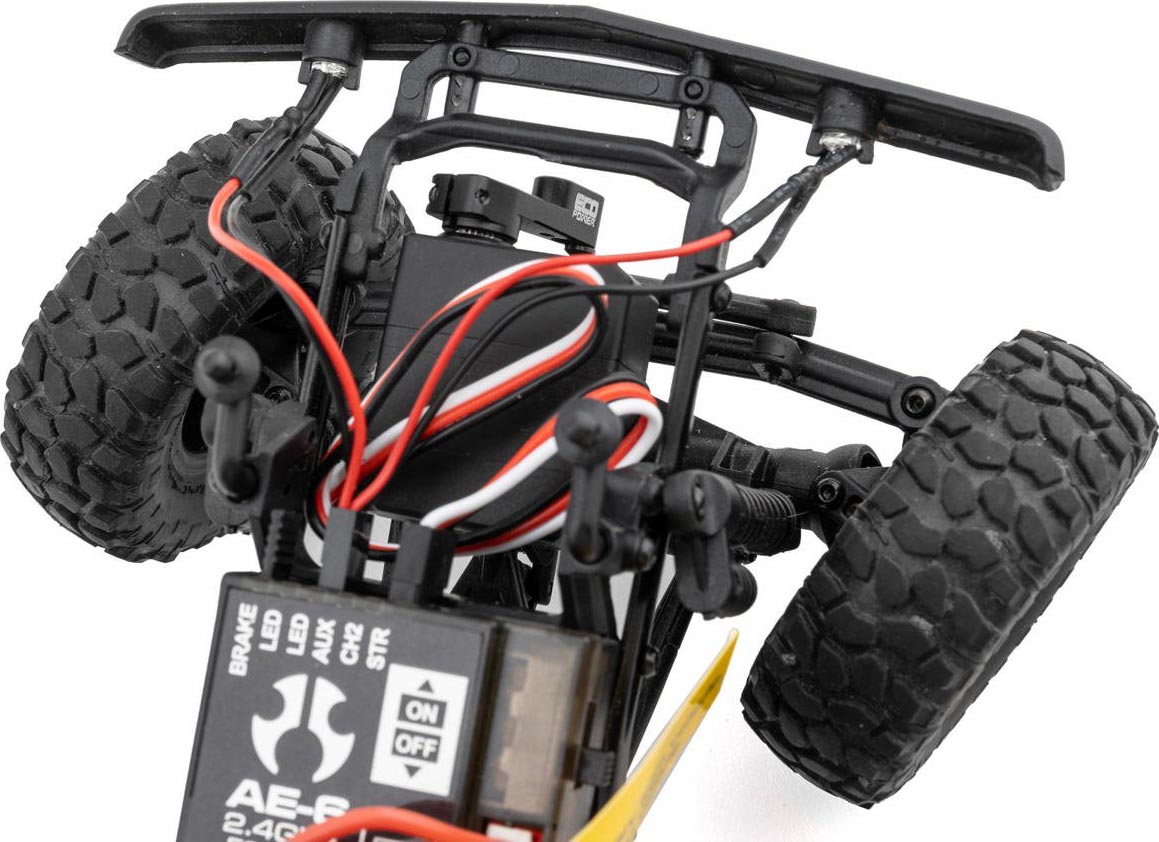

Unlike all other traditional servos on the market, the EcoPower WP827-X24 micro Servo features a first of its kind innovative built-in direct axle and links mount system that revolutionized the game by allowing the WP827-X24 to be directly mounted to the SCX24 axles with no need for a servo mount! This brilliant mounting system provides a sturdy and rigid fit with extra clearance between the chassis rails!

High Torque & Speed

Whether you are into hardcore Comp rock crawling, backyard crawling or just hitting the trails, a high-torque and speed steering servo will always be at the top of the upgrade list, especially for rigs equipped with heavier tuning weights and wheels! This EcoPower WP827-X24 micro servo is capable of outputting 62.5oz.in (4.5Kg-CM) of torque and 0.08 sec/60 of speed at 8.4 Volts that will help your SCX24 elevate steering performance and precision to take on harder lines and harsher trails!

Robust Construction & Drivetrain

When it comes to durability and reliability, the EcoPower WP827-X24 micro servo is fitted with all metal heavy-duty gears, output shaft spline and an aluminum mini 25T servo horn to ensure maximum durability and flex-free operation under the harshest conditions! In addition, the EcoPower WP827-X24 is fully elements and waterproof! Allowing you to navigate through wet and dirt-filled trails with peace of mind!

click image to enlarge
ADDITIONAL PHOTOS
694485083124 0694485083124
ECP-827-X24
