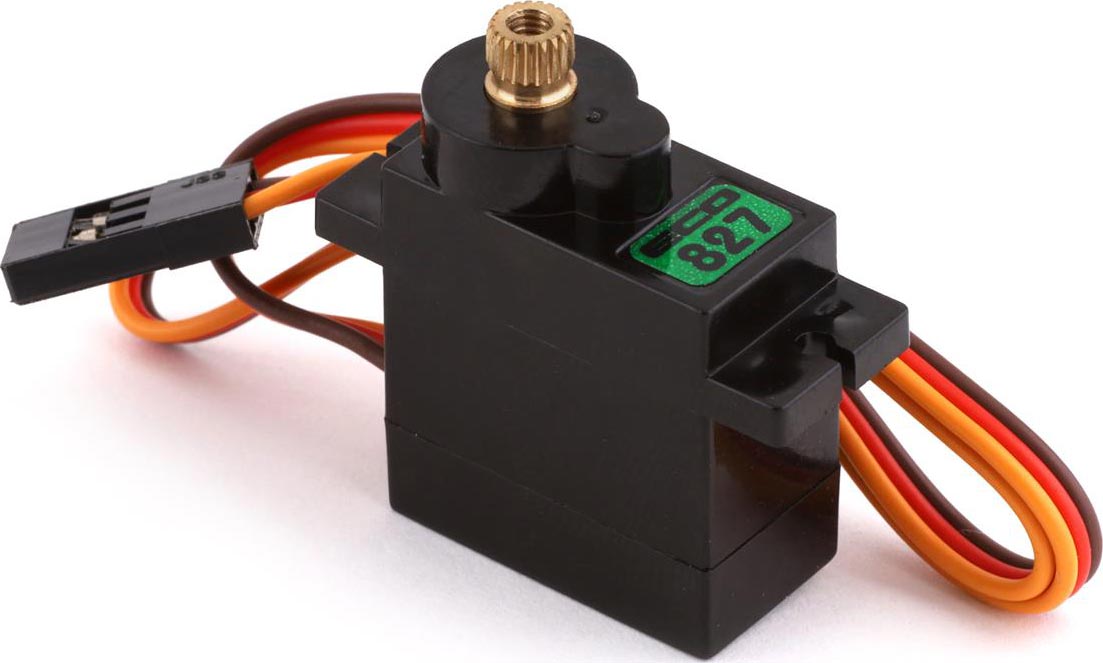

827 12g Digital Metal Gear Micro Servo (High Voltage)
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
1/24
Size Class:
20 Tooth
Output Spline:
12 g
Weight:
Cored DC
Motor Type:
6.0-8.4 v
Voltage Range:
29 oz-in
Torque @ 6.0V:
0.12 sec/60°
Speed @ 6.0V:
37.5 oz-in
Torque @ 8.4V:
0.10 sec/60°
Speed @ 8.4V:
FEATURES
Features:
- High Voltage Micro Servo
- Upgrade for SCX10 III Dig and Shift Servo (direct replacement for SX107 servo - SPMSSX107)
- Upgrade for Capra Dig Servo
- Upgrade for SCX24 Steering Servo (requires EcoPower, Hot Racing, or Samix Servo Mount)

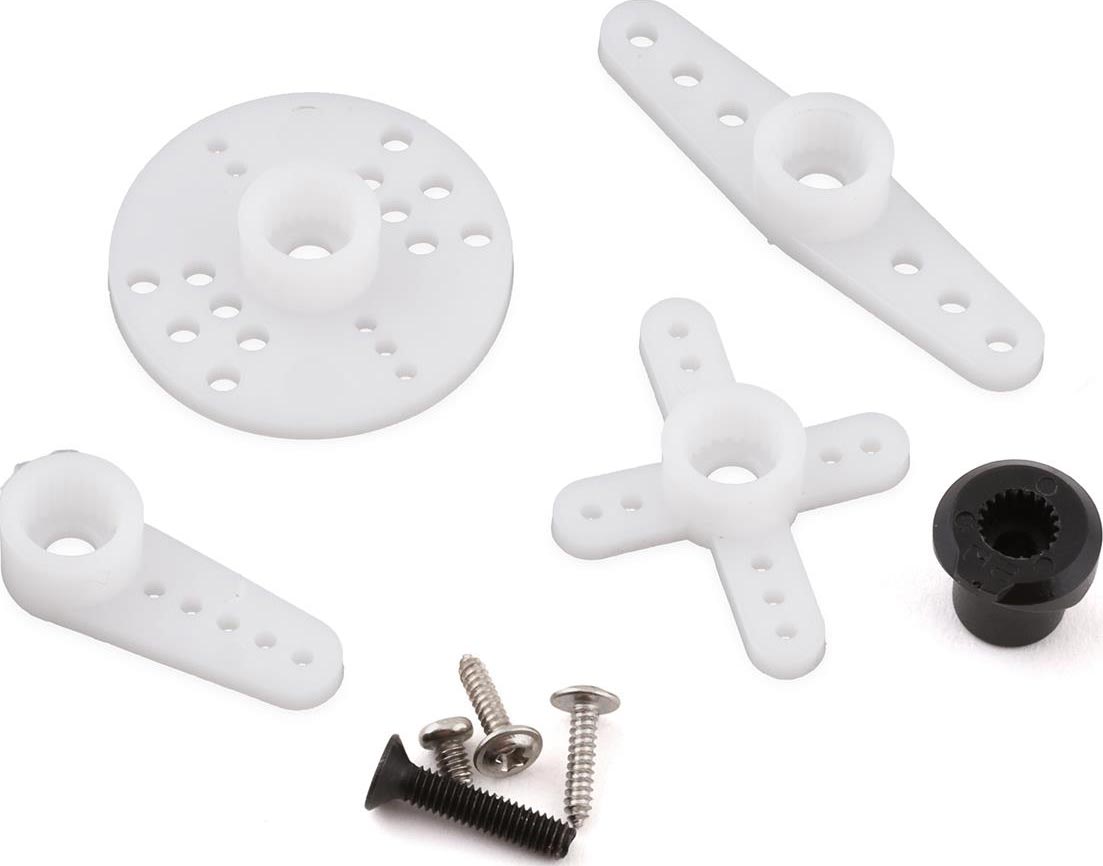

- Includes Servo Saver Output Adapter for SCX10 III and Capra
- Metal Gears
- 275mm Servo Lead

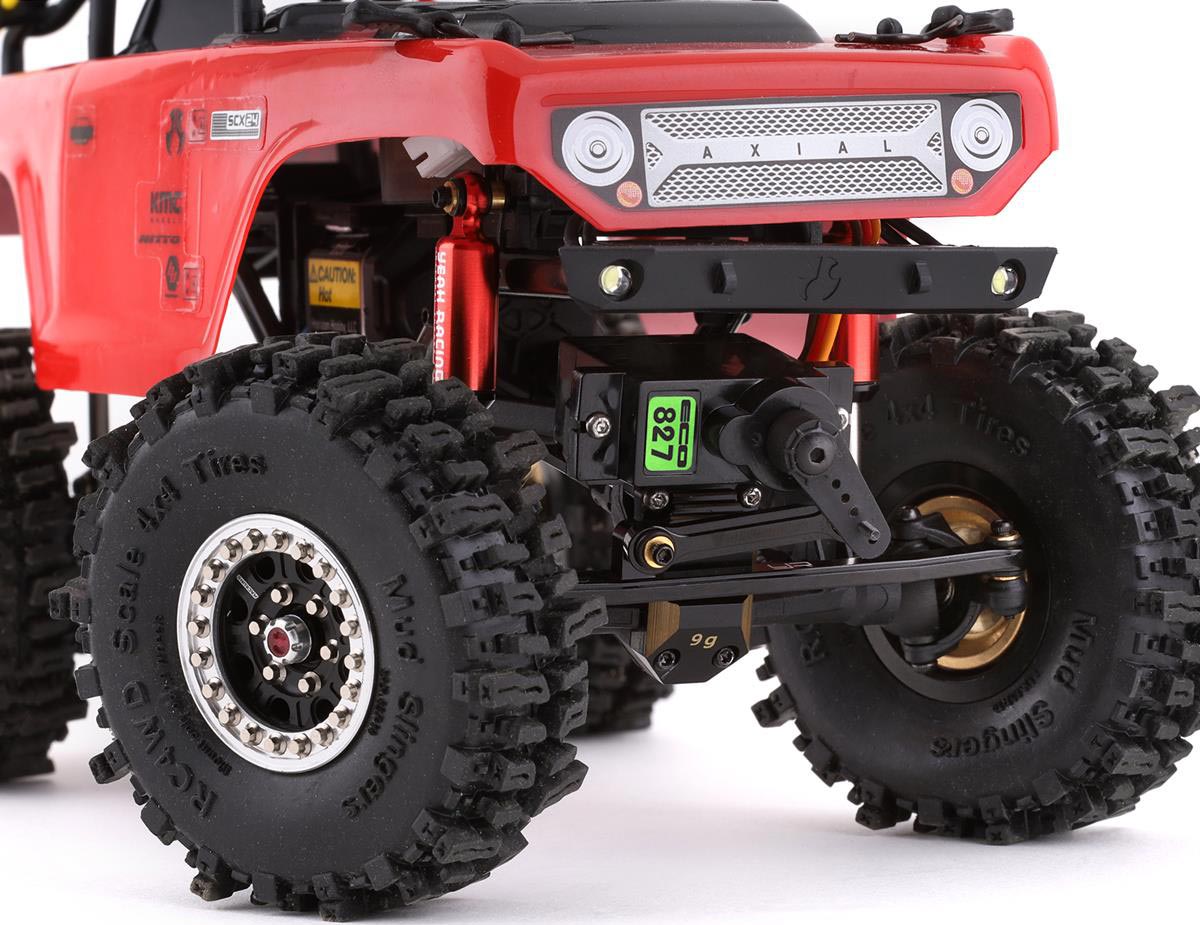

The EcoPower 827 12g Digital Metal Gear Micro Servo is an affordable, high voltage "mighty micro" upgrade. This servo is a great choice for the Dig/Shift servo in the Axial SCX10 III, as well as a Dig servo in the Axial Capra. The servo saver adapter is included! Plus, true high voltage compatibility means no more complicated wiring to protect your accessory servos when running a high voltage steering servo.
click image to enlarge
ADDITIONAL PHOTOS
|
|
|
PRODUCT RESOURCES
707470759864 0707470759864
ECP-827
