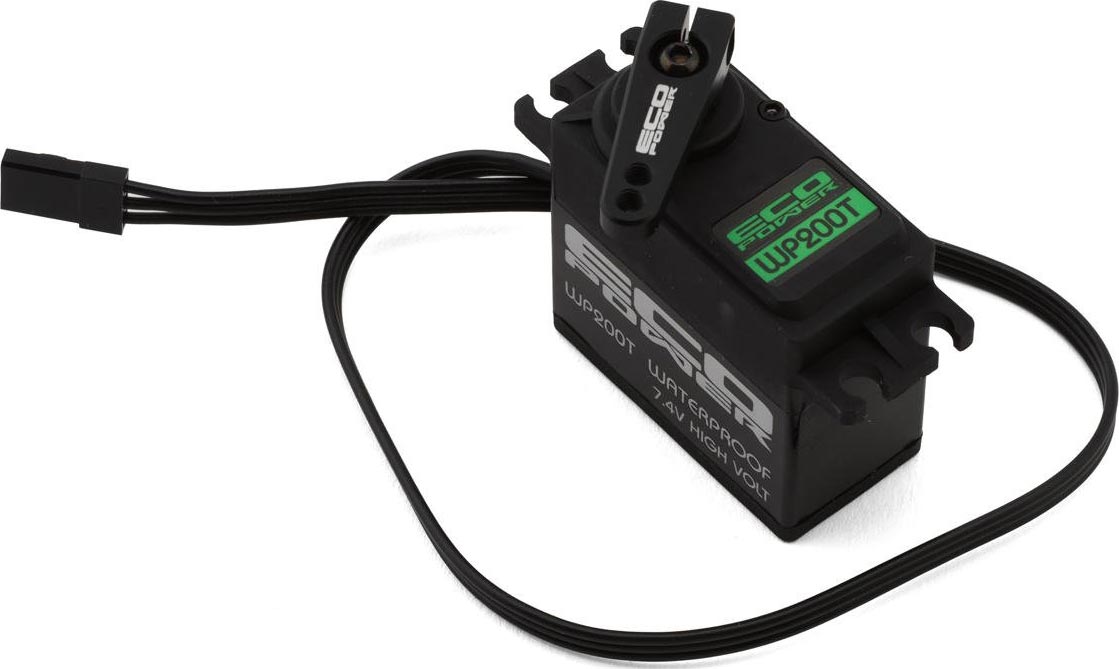

WP200T Waterproof High Torque Metal Gear Brushless Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
1/10 & 1/8
Size Class:
25 Tooth
Output Spline:
48.5 mm
Length:
20 mm
Width:
40.2 mm
Height:
63 g
Weight:
Steel
Geartrain:
Brushless Digital
Motor Type:
6.0-8.4 v
Voltage Range:
467 oz-in
Torque @ 6.0V:
0.11 sec/60°
Speed @ 6.0V:
578 oz-in
Torque @ 8.4V:
0.09 sec/60°
Speed @ 8.4V:
FEATURES
The EcoPower WP200T Brushless Waterproof "High Torque" Metal Gear Digital Servo is a great choice if you are looking for a waterproof, high voltage upgrade. The WP200T makes 467 oz-in of torque and .11 transit speed at 6.0V.
But when you crank the voltage up to 8.4V, the WP200T delivers 578 oz-in and .09 speed, making it an excellent option for scale crawlers, 1/10 monster trucks, 1/10 2WD and 4WD buggies. Plus, its a great option for boats, and other surface applications that can benefit from a high torque, high voltage, waterproof servo.
Features:
- Ideal for a 1/10 & 1/8 Bashing Platforms
- Brushless motor
- High voltage circuitry
- Full steel gears
- Aluminum middle black case
