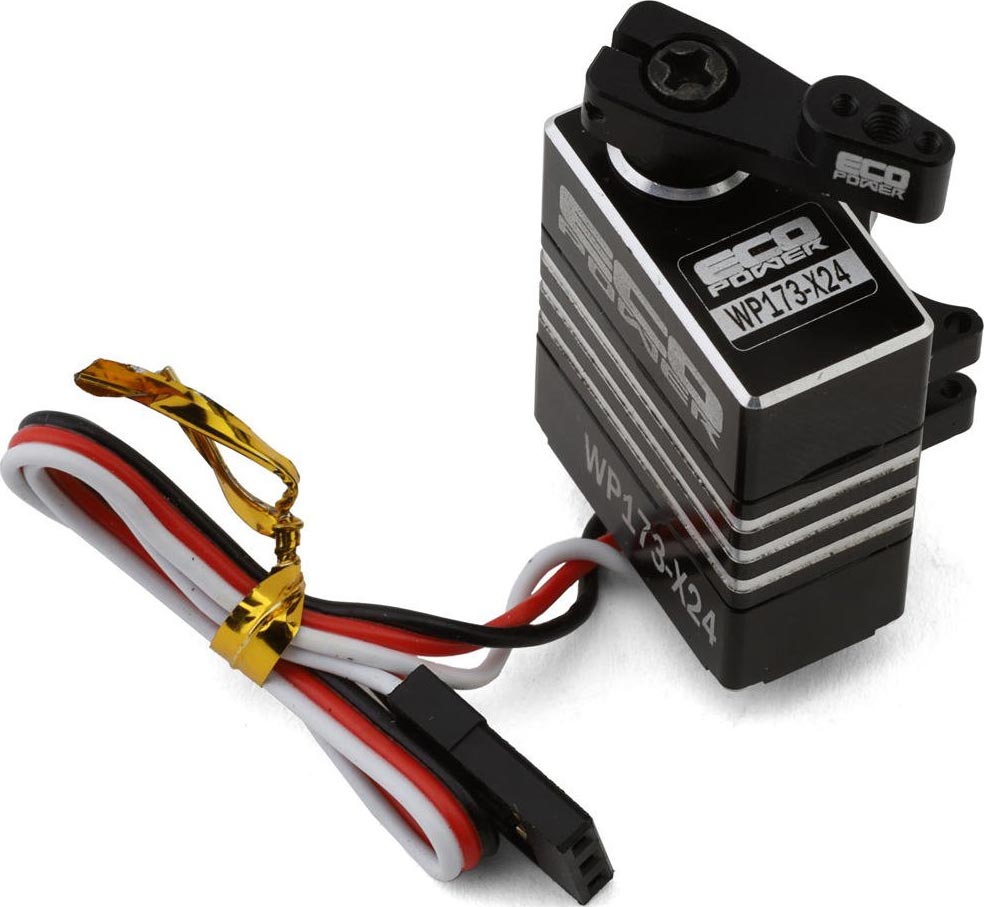

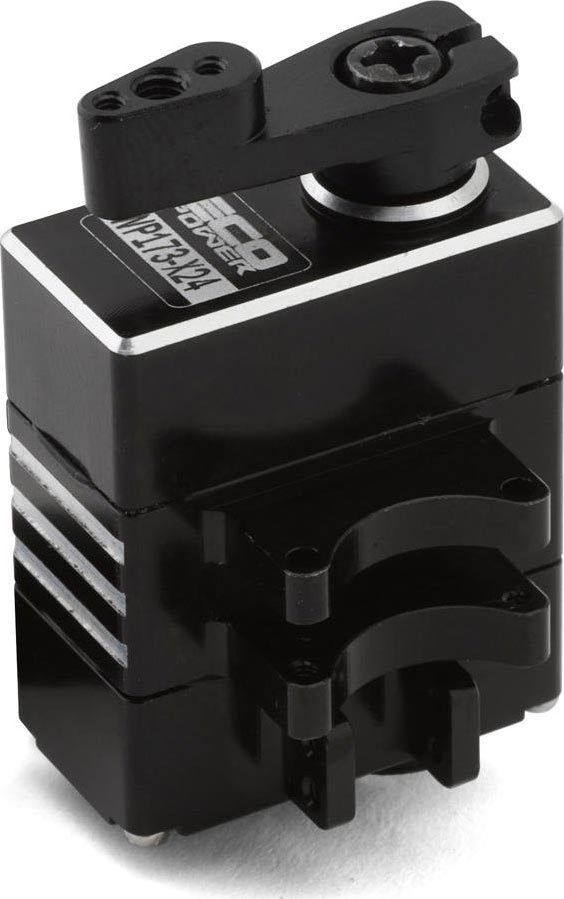

WP173-X24 Aluminum Digital Micro Servo Direct Fit Axial SCX24
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
1/24 & 1/18
Size Class:
25 Tooth
Output Spline:
23 mm
Length:
12 mm
Width:
31.75 mm
Height:
16 g
Weight:
Coreless
Motor Type:
6-8.4 v
Voltage Range:
48.6 oz-in
Torque @ 6.0V:
0.10 sec/60°
Speed @ 6.0V:
62.5 oz-in
Torque @ 8.4V:
0.08 sec/60°
Speed @ 8.4V:
FEATURES
EcoPower is proud to introduce the WP827-X24 Digital Micro High-Voltage Servo! The most innovative and budget-friendly micro servo tailored specially for the Axial™ SCX24 platforms as the ultimate performance upgrade!
Features:
- The ultimate budget upgrade for Axial™ SCX24
- High torque and speed output

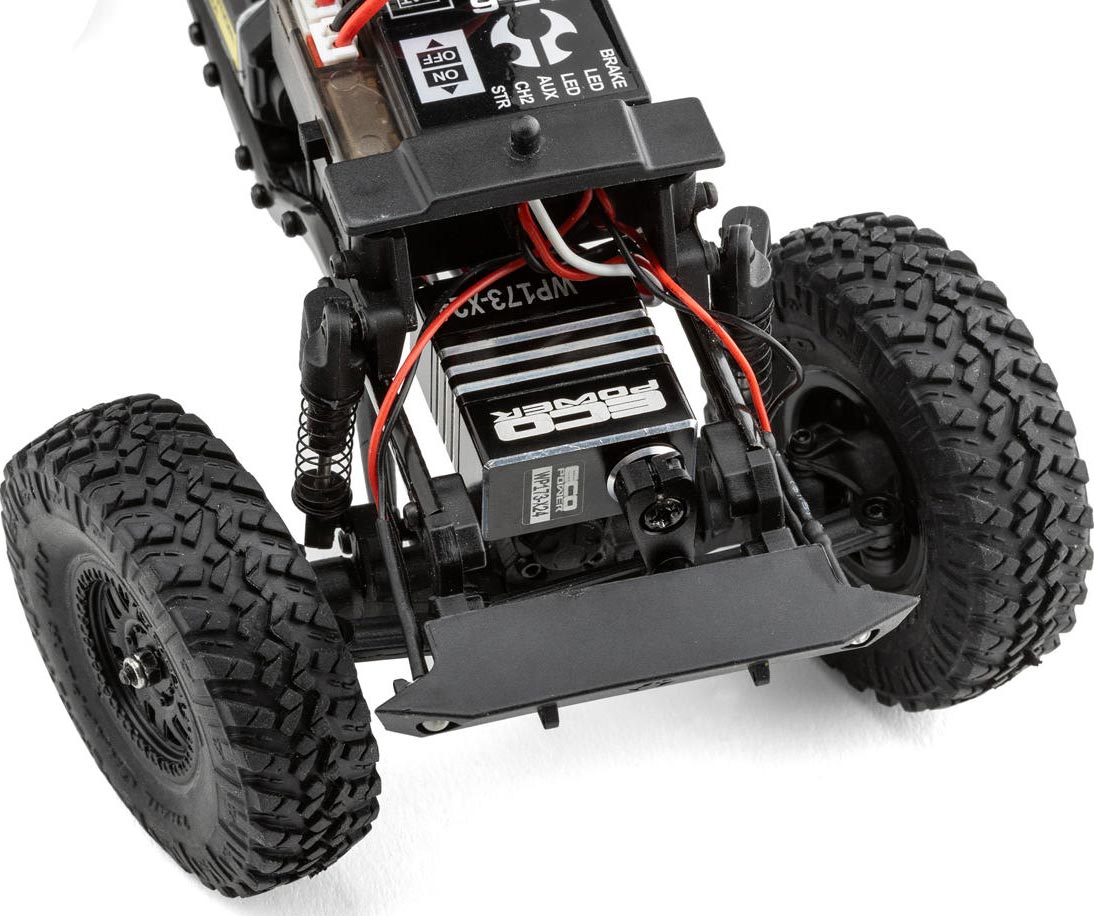

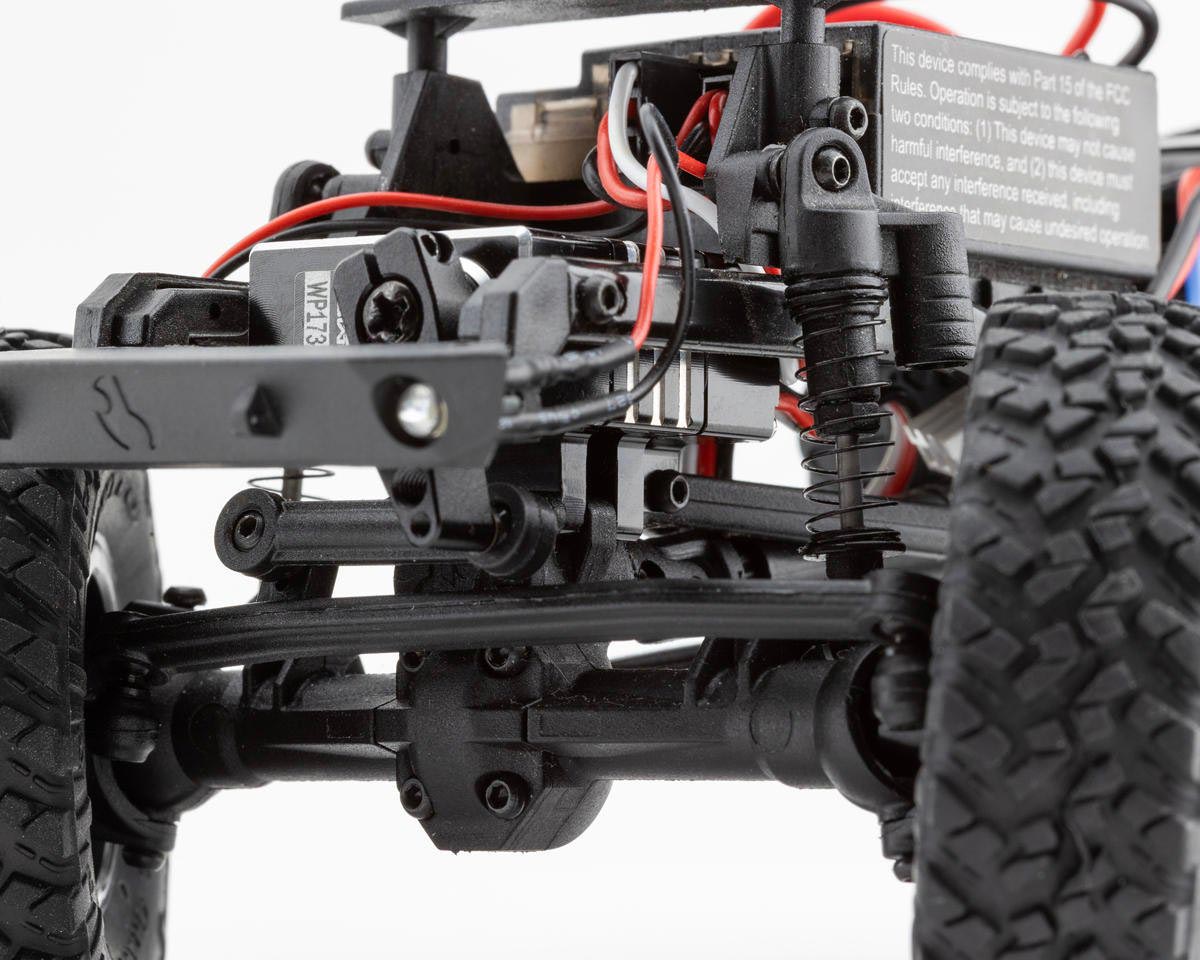

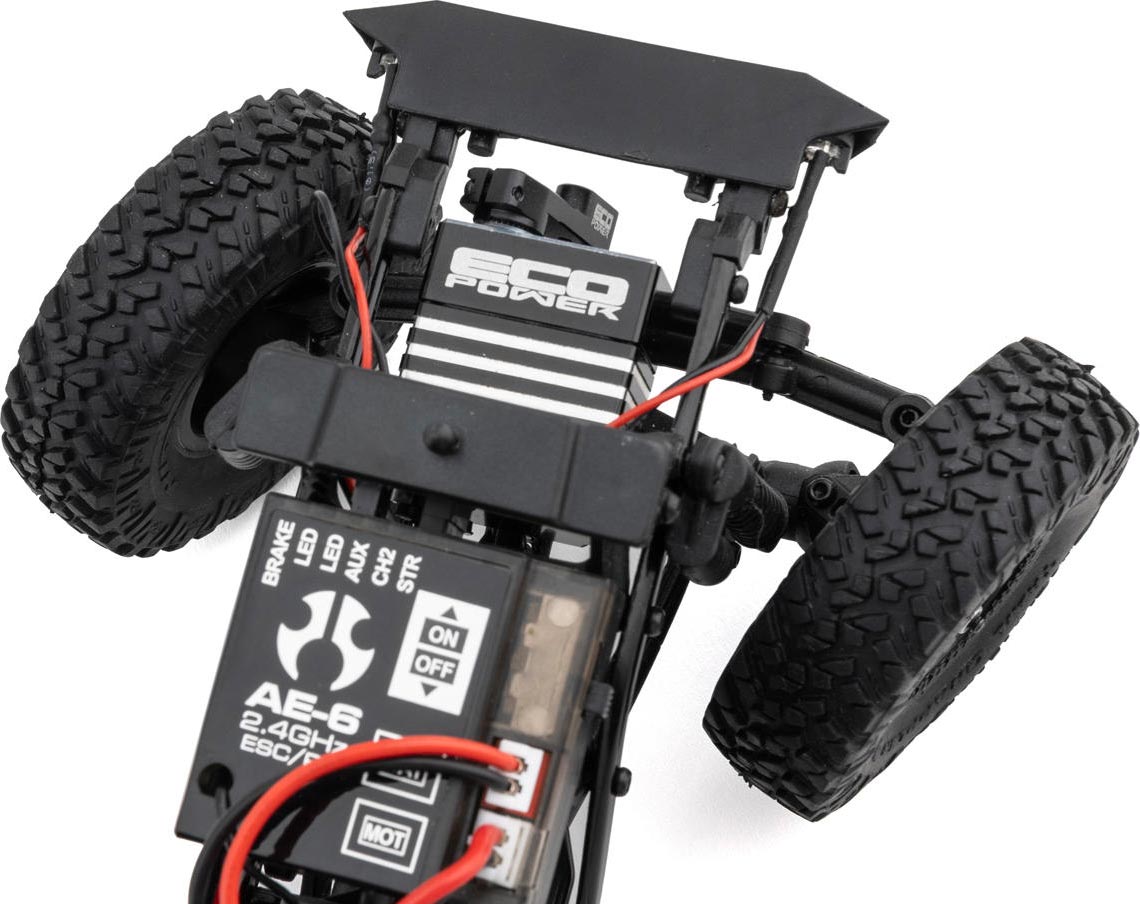

- Innovative direct axle mount
- Eliminates the need for separate servo mount
- High voltage capable of operating on up to 8.4 Volts!
- HD all metal gears and output shaft spline
- Waterproof design
- Powerful coreless motor
- Includes a CNC-machined aluminum horn with multiple mounting holes
What's in the Box:
- (1) WP827-X24 Digital Micro Servo
- (1) Aluminum Servo Horn

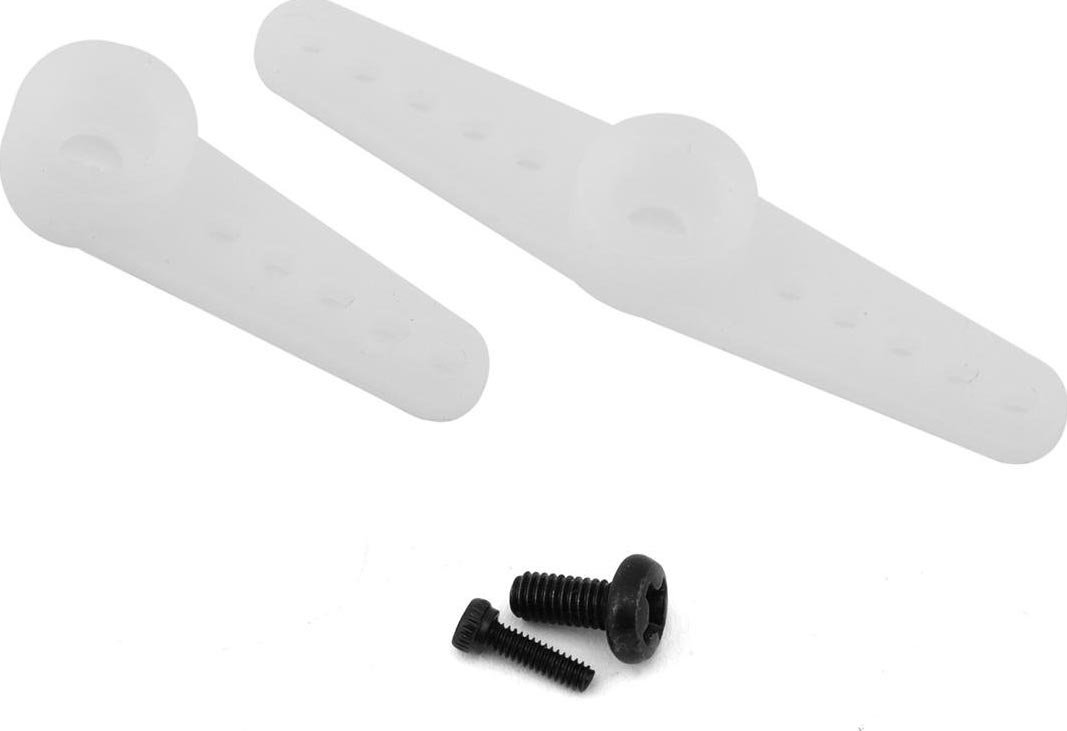

- (2) Composite Servo Horns
