ECP125T

WP125T Waterproof High Torque Metal Gear Digital Servo (HV)

Product Info
ECP125T
WP125T Waterproof High Torque Metal Gear Digital Servo (HV)
By EcoPower
$89.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Servos Digital
But only from... EcoPower
All items from... EcoPower


 Inventory Status Legend
StockStock availability for on-line ordering
0
$89.99
Warehouse ?
StockStock availability for pick up
0
$89.99
Warehouse ?
0
$89.99
Store - Stratford ?
0
$89.99
Store - Edmonton ?
0
$89.99
Store - Mississauga ?
0
$89.99
Store - Ottawa ?
0
$89.99
Store - Oshawa ?
0
$89.99
Store - Halifax ?
0
$89.99
Store - Kitchener ?NOW OPEN!
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
1/10 Surface
Size Class:
25 Tooth
Output Spline:
39.5 mm
Length:
20 mm
Width:
38.9 mm
Height:
70.9 g
Weight:
Coreless
Motor Type:
6-8.4 v
Voltage Range:
337 oz-in
Torque @ 6.0V:
0.11 sec/60°
Speed @ 6.0V:
400 oz-in
Torque @ 7.4V:
0.09 sec/60°
Speed @ 7.4V:

FEATURES

Includes:

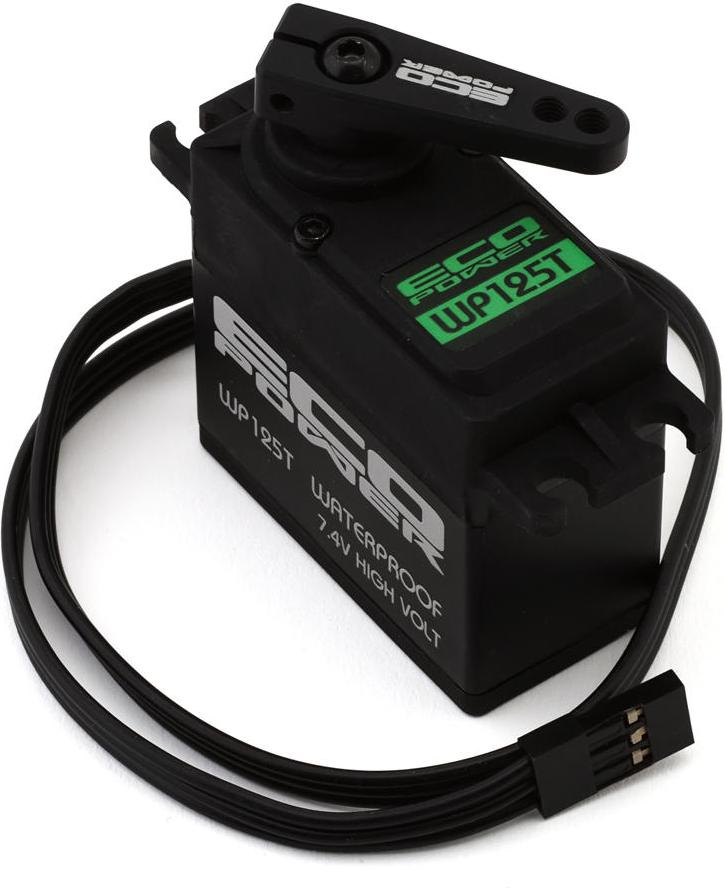

  • (1) WP125T Waterproof High Torque Metal Gear Digital Servo

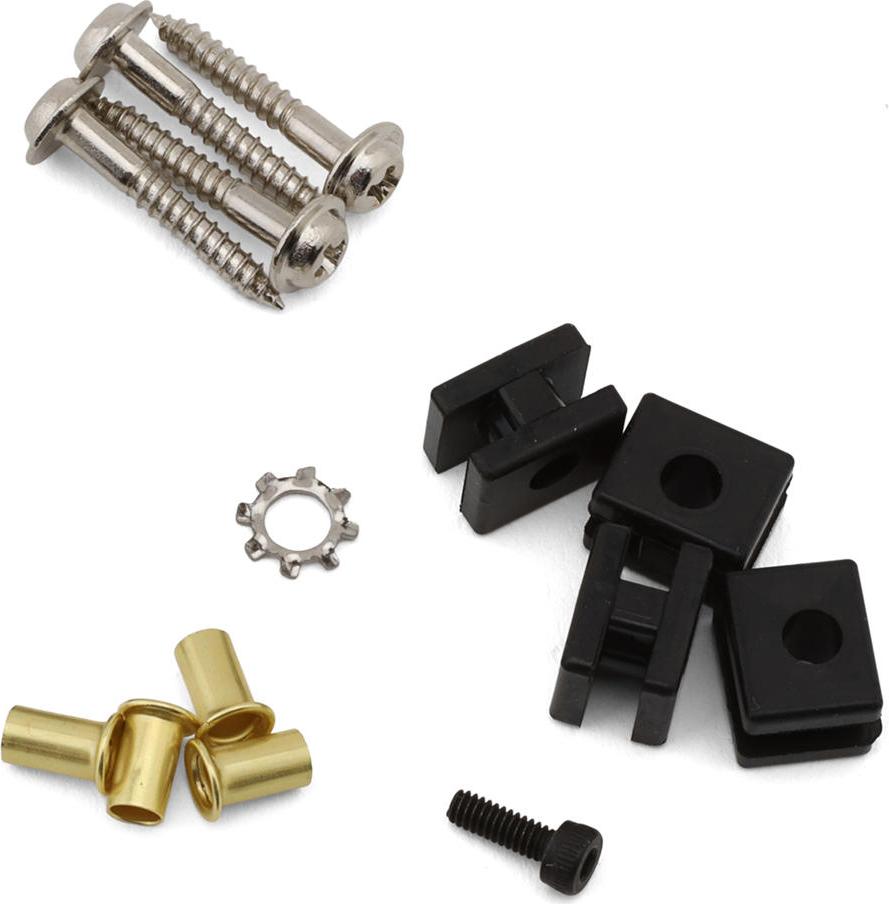

  • (1) Aluminum Clamping Servo Horn (25T)
  • Servo Hardware & Grommets

Features:

  • Full metal gear construction
  • Coreless motor for smooth response
  • Dual-bearing design
  • Waterproof up to one meter
  • Enhanced waterproof sealing
  • Strong holding power for off-road terrain
  • Compatible with major 1/10 4WD platforms

The EcoPower WP125T Waterproof High Torque Metal Gear Digital Servo is engineered to deliver dependable steering performance for 1/10 4WD RC vehicles. Designed for demanding off-road conditions, it combines waterproof protection, durable metal gears, and strong torque output to maintain smooth, consistent control. Compatible with popular platforms from Traxxas®, ARRMA®, Axial®, Losi®, and others, it serves as a reliable upgrade for drivers seeking improved handling and responsiveness. With enhanced durability and refined performance over the previous WP120T, this servo offers long-lasting value for a wide range of builds.

High-Torque Steering Control

The WP125T provides powerful steering authority thanks to its high-voltage capability, delivering up to 400 ounce-inches of torque. This strength helps vehicles maintain precise direction on rough terrain, during high-speed runs, and through tight technical sections. Whether crawling or bashing, the servo's strong holding power ensures consistent and confident control.

Metal Gear Construction

Built with a full metal geartrain, the WP125T eliminates the weaknesses associated with plastic gears, offering a longer lifespan and greater reliability. The hardened gear design resists wear and prevents stripped teeth, even under heavy loads. Additionally, dual bearings and a coreless motor contribute to smoother motion and improved responsiveness.

Waterproof Protection

Engineered to withstand rain, mud, snow, and wet environments, this servo is waterproof up to one meter. Its sealed design keeps internal components protected, allowing drivers to push their vehicles through challenging terrain without hesitation. This makes it a dependable choice for year-round outdoor use.
