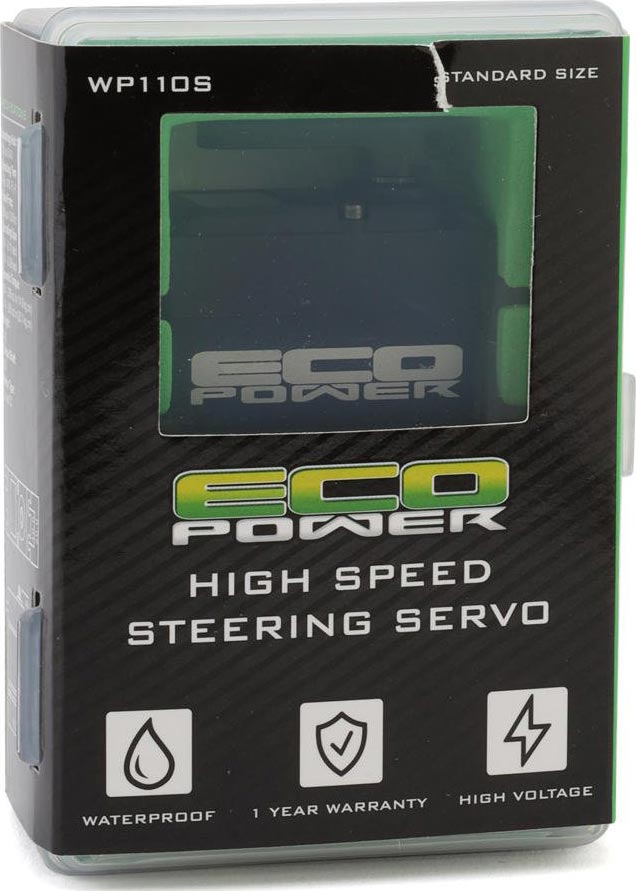

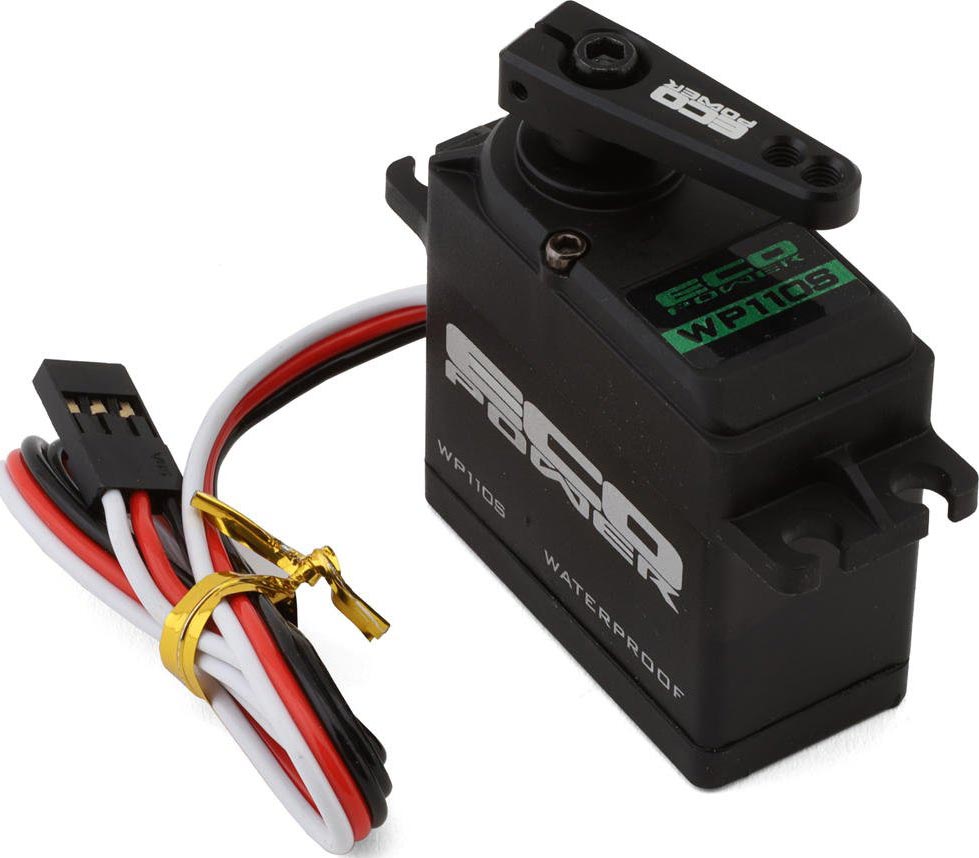

WP110S Waterproof High Speed Metal Gear Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
1/10 Surface
Size Class:
25 Tooth
Output Spline:
40.25 mm
Length:
20 mm
Width:
42.25 mm
Height:
56 g
Weight:
206 oz-in
Torque @ 6.0V:
0.11 sec/60°
Speed @ 6.0V:
280 oz-in
Torque @ 7.4V:
0.09 sec/60°
Speed @ 7.4V:
FEATURES
Features:
- Affordable option for 1/10 trucks, 2WD and 4WD 1/10 buggies, boats and more!
- Waterproof up to 1 meter
- 280 oz-in of torque @ 7.4V, and .09 transit speed
- Digital circuitry
- Cored motor
- Metal gears
- Lightweight plastic upper and lower case w/black anodized aluminum center case
- Dual ball bearings
- 220mm servo lead

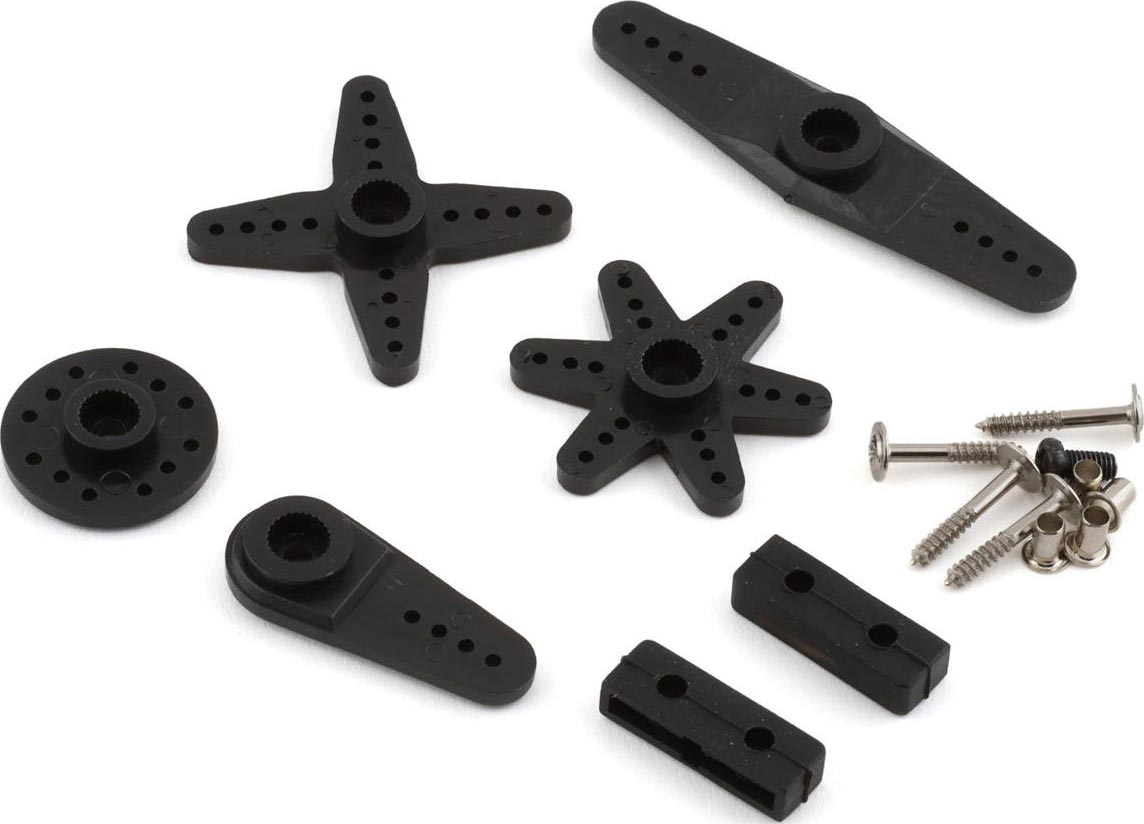

- Includes plastic star, 4 way, dual, single and round arm type servo horns and mounting hardware
click image to enlarge
ADDITIONAL PHOTOS
|
|
707470762215 0707470762215
ECP-110S
