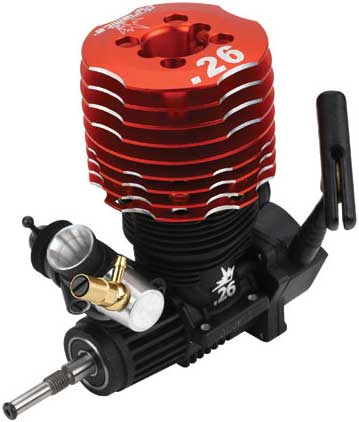

Truggy .26 Mach 2 - Spin Start
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
.26 cu in
Engine Displacement:
18 mm
Bore:
16.75 mm
Stroke:
410 g
Weight:
30,000 RPM
RPM Range:
ABC
Cylinder Type:
Pull/Spin start
Start System:
5+1
Number of Ports:
2.75
Claimed Power Output:
2-Needle Slide
Carb Type:
SG
Crank Type:
FEATURES
- 13mm turbo ported crankshaft
- 2-needle carburetor
- ABC 6-port piston and sleeve
- Knife edged connecting rod
- Pull start/Spin-start combo equipped
Please Note: The rear bearing size is incorrect in the exploded view. The correct rear bearing size is 13X24X6.
Engineered specifically for 1/8 scale Truggies, Dynamite's Mach 2 Truggy .26 engine combines superior performance with cool looks at a very affordable price. With features borrowed from the Dynamite Platinum line, this engine boasts a 13mm turbo ported crankshaft in addition to the ABC 6-port piston and sleeve to bring you an engine that blows the competition away. Whether you're a backyard basher or an occasional racer, you won't be disappointed with the performance and durability found in the Dynamite Mach 2 engine series.
