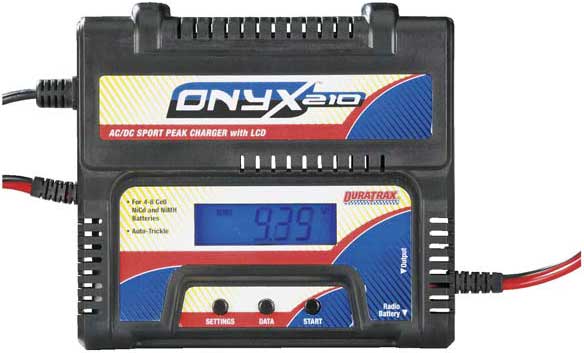

*F*Onyx 210 AC/DC Sport Chg w/LCD
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
110V AC 60Hz
AC Input:
11-15V DC
DC Input:
4-8 NiCd or NiMH cells
Battery Types:
750-7500mAh
Battery Capacity Range:
0.8A, 1.5A, 3A, 5A linear
Fast Charge Current:
Peak detection
Fast Charge Termination:
90 minutes
Fast Charge Safety Timer:
8mV for NiCd, 4mV for NiMH
Peak Sensitivity:
1/20 fast charge setting
Auto Trickle Current:
3 Pushbuttons
Input Control:
7-segment custom LCD with backlight
Display Type:
Indicate start, stop, errors
Audible Tones:
Solid-state reverse polarity and current overload
Protective Devices:
5.75 x 5.25 x 1.81 in
Dimensions:
19.2 oz
Weight:
FEATURES
- Charges 4-8 cell NiCd or NiMH (4.8 - 9.6V) cells with a capacity range of 750-7500mAh
- NiCd and NiMH compatibility with custom peak detection
- Pushbutton controls
- audible tones and a custom LED with backlight for easy setup and use
- Selectable charge currents of 800mA, 1.5A, 3A and 5A
- Automatic trickle charge fills pack completely after peak charge for optimum battery performance
- Precise peak detection algorithm with automatic TRICKLE charge fills packs completely for optimum voltage and run time
- Built-in jack included for charging 4 or 5 cell NiCd or NiMH receiver batteries for nitro models and even transmitter batteries
- LCD shows battery voltage, charge current, time, capacity, battery type and more
- Small, lightweight switching AC power supply delivers up to 5 amps of charge current
- Five year warranty
- Comes equipped with standard Tamiya connector
Charges anywhere from 4 to 8 NiCd and NiMH batteries, with output current selections of 800mA, 1.5A, 3A, and 5 amps. Great for charging batteries for 1/18th to 1/8th scale electrics, nitro receiver packs, and even transmitter batteries! A tiny, lightweight built-in switching AC power supply plus DC input capability is perfect for use at home or the track. A custom LCD with backlight is great for use indoors or outdoors, daytime or night. The Onyx 210 has more applications (and convenience) than nearly any charger in its price range!
