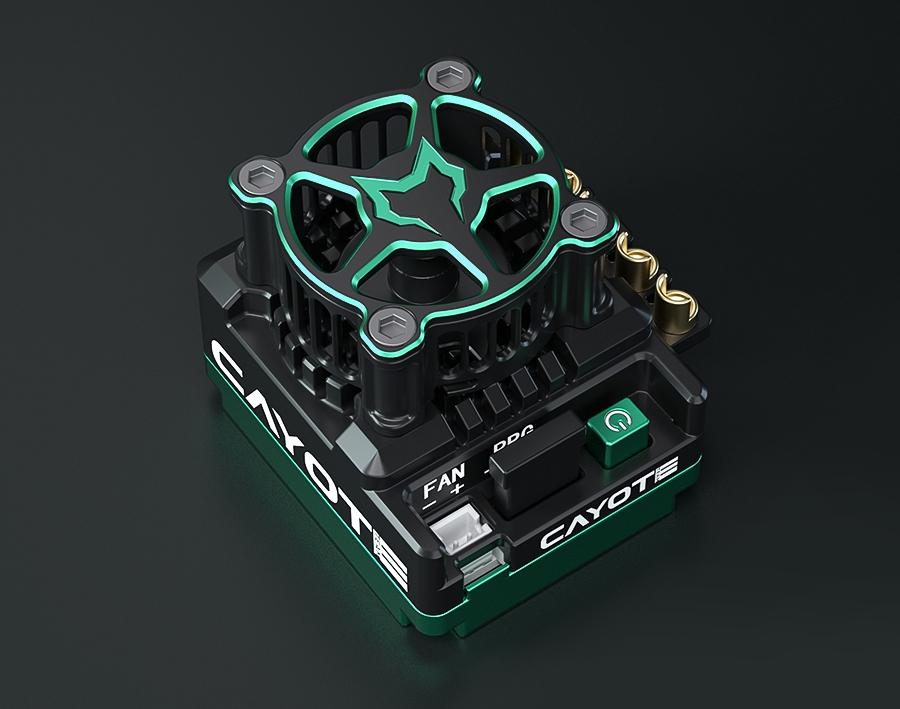

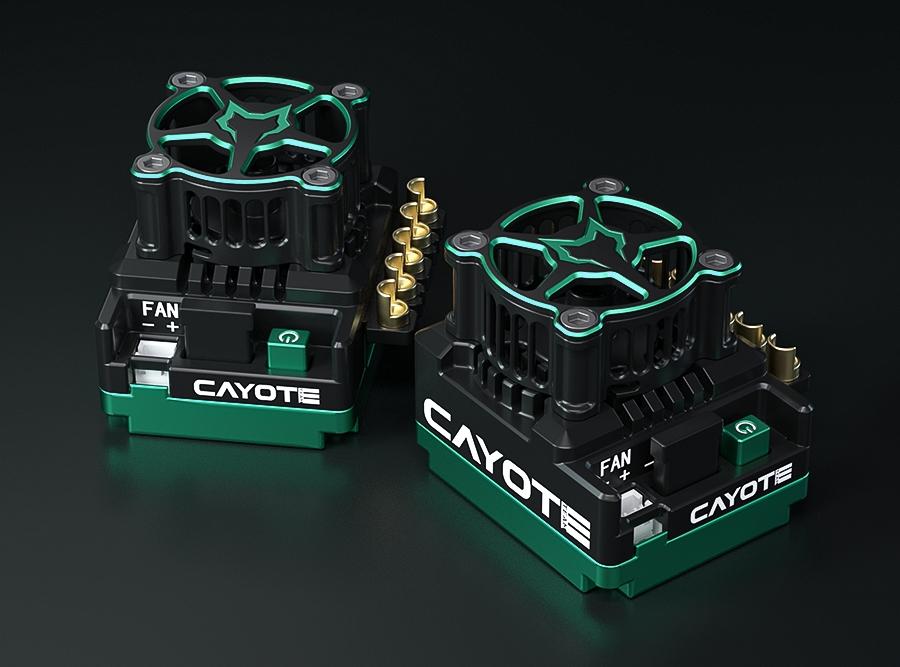

ESC Crest X 1/10 160A Sensored Brushless Mod Competition

Cayote Crest X ESC delivers high performance and reliable current transmission, ensuring your RC vehicles run smoothly and efficiently. This ESC features an advanced cooling system and a variety of functions, combining smart technology with user-friendly operation. Pair it with Cayote motor and battery for best performance.

Built-in Super Switching Mode BEC

Support of 6V/7.4V adjustable BEC to adapt to various high power BEC.

Built-in Professional Reversing Shutdown

Only enabled in forward with brake and forward and reverse with brake modes.

Multiple Protection Functions

Low voltage protection, ESC and motor overheat protection.

Specifications:

• Scale: 1/10
• Mode:Sensor/Sensorless
• Cont. Current: 160A
• Peak Current: 1100A
• Battery: 2S Lipo
• BEC Output Voltage: 6.0/7.4V
• BEC Output Current: 5A Cont. / 8A Peak
• Firmware Upgrade: Supported
• Data Recording: Extreme value, Real-time Data
• Size: 37.9x31.4x30mm
• Weight: 55g

Compatibility:

• Motor: 1/10th TC≥4.5T?1/10th Off Road≥5.5T
• Vehicle: 1/10th TC; 1/10th Off Road/Etc.

Wiring and Cooling:

• Output Wires: Black-13AWG-180MM*3
• Input Wires: Red-13AWG-180MM*1
• Black-13AWG-180MM*1
• Cooling Fan: 25x25x10mm, 5-8.4V BEC

ESC Programming Via:

• Xlink Program Box Compatible
• B-Tune Connect (Optional)
• Internal Program (Port)(APP Control)
