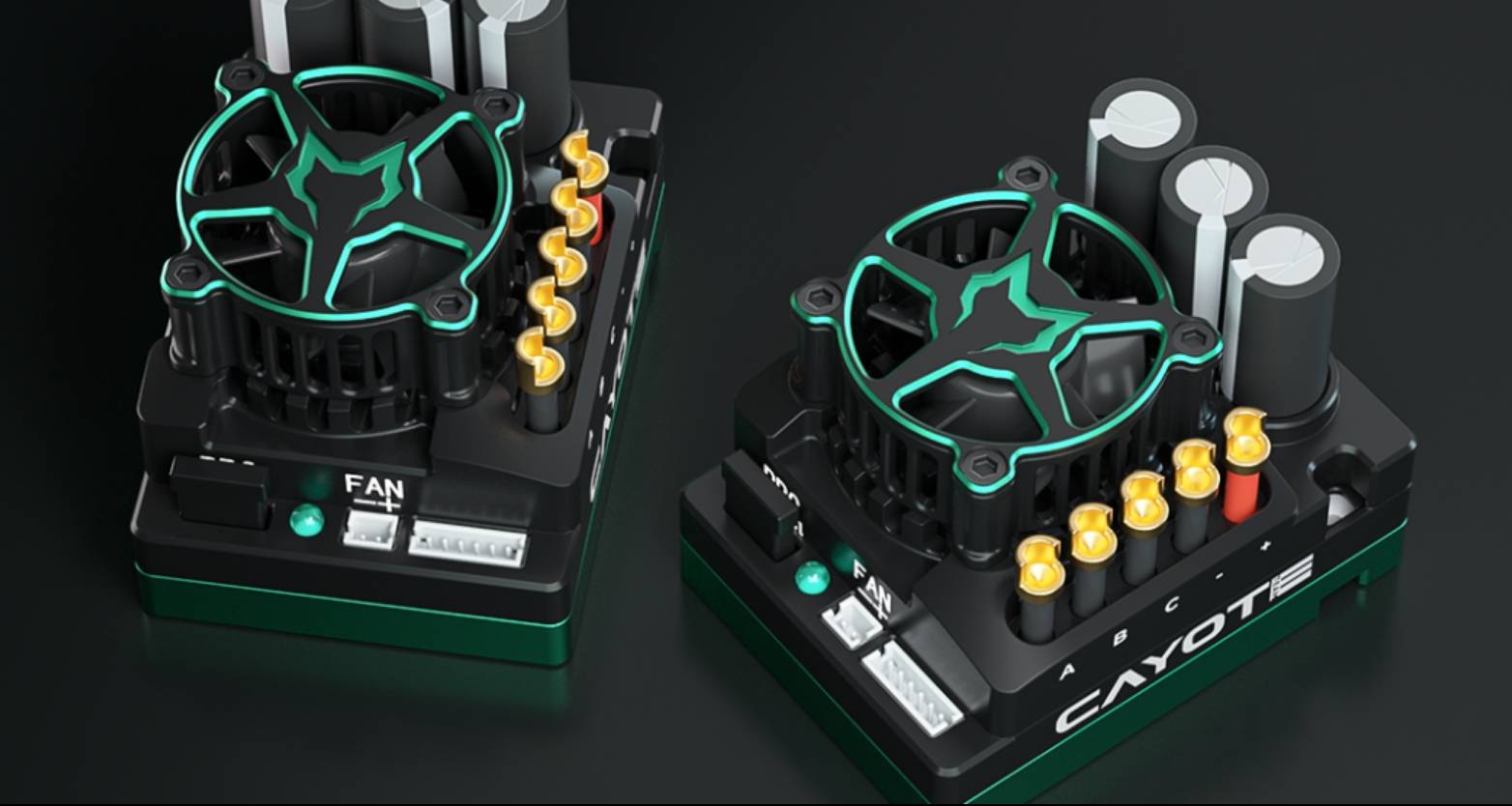

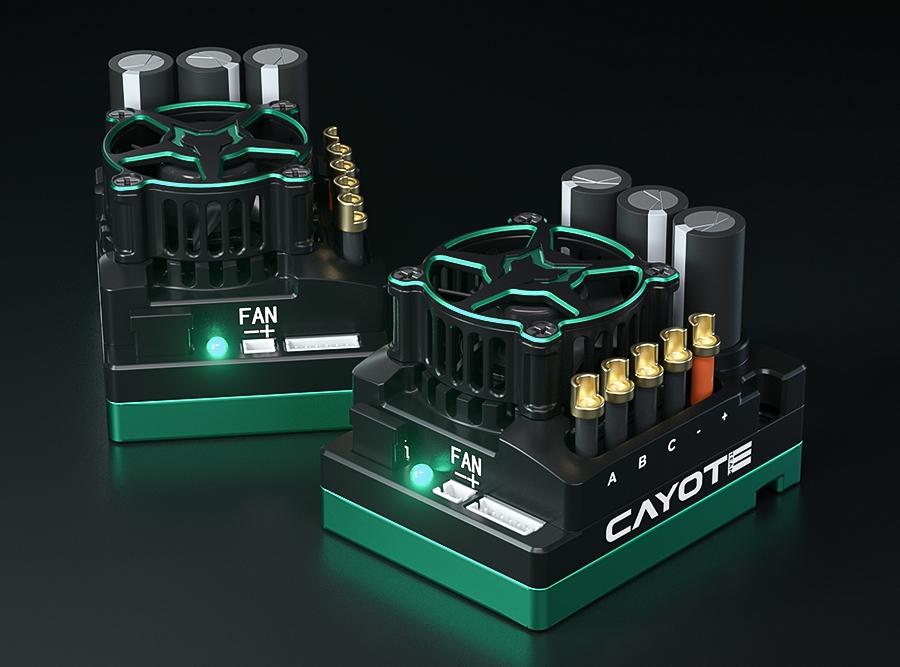

ESC Crest 8 1/8 200A Sensored Brushless w/Bluetooth

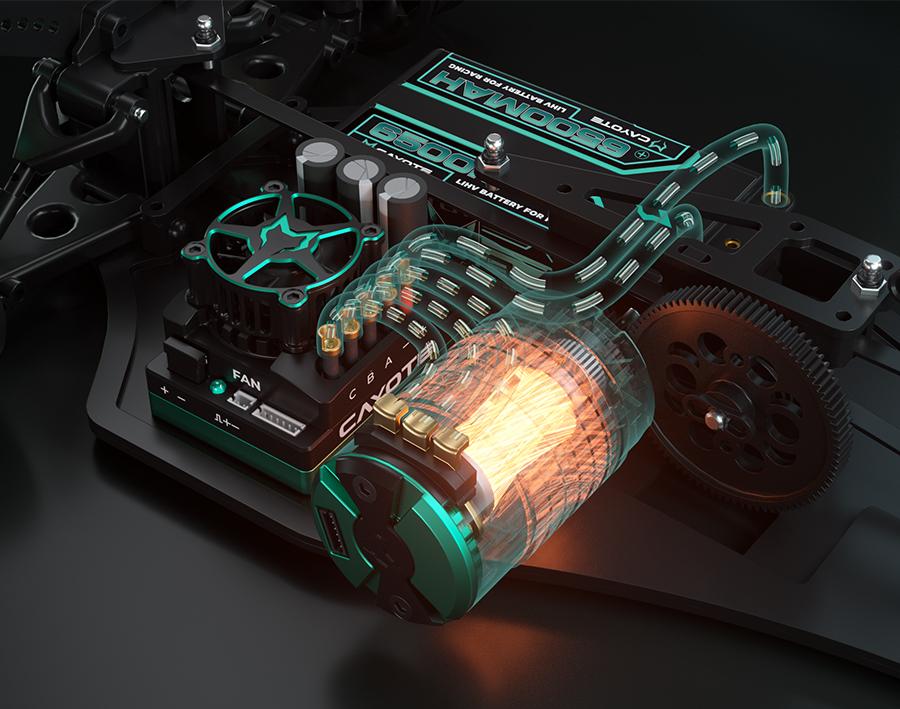

Cayote Crest 8 ESC delivers high performance and reliable current transmission, ensuring your RC vehicles run smoothly and efficiently. This ESC features an advanced cooling system and a variety of functions, combining smart technology with user-friendly operation. Pair it with Cayote motor and battery for best performance.

Built-in Super Switching Mode BEC

Support of 6V/7.4V adjustable BEC to adapt to various high power BEC.

Built-in Professional Reversing Shutdown

Only enabled in forward with brake and forward and reverse with brake modes.

Multiple Protection Functions

Low voltage protection, ESC and motor overheat protection.

Specifications:

• Scale: 1/8
• Mode: Sensor/Sensorless
• Continuous Current: 200A
• Peak Current: 1080A
• Battery: 2-4S Lipo
• BEC Output Voltage: 6.0/7.4V
• BEC Output Current: 8A Cont. / 12A Peak
• Firmware Upgrade: Supported
• Data Recording: Extreme value, Real-time Data
• Size: 56.8x41.6x40mm
• Weight: 122g

Compatibility:

• Motor: 4268/4274≤3000KV with 4S Lipo
• 1/8th Vehicle: Buggy/Truck(Truggy)/Etc.
• 1/8th Vehicle: Short Truck/Big Foot/Etc.

Wiring and Cooling:

• Output Wires: Black-10AWG-180MMx3
• Input Wires: Red-13AWG-180MMx1, Black:-13AWG-180MM
• Cooling Fan: 30 x 30 x 10 mm, 5-8.4V BEC

ESC Programming Via:

• Xlink Program Box Compatible
• B-Tune Connect (Optional)
• Internal Program (Port)(APP Control)
