CSCM42742250

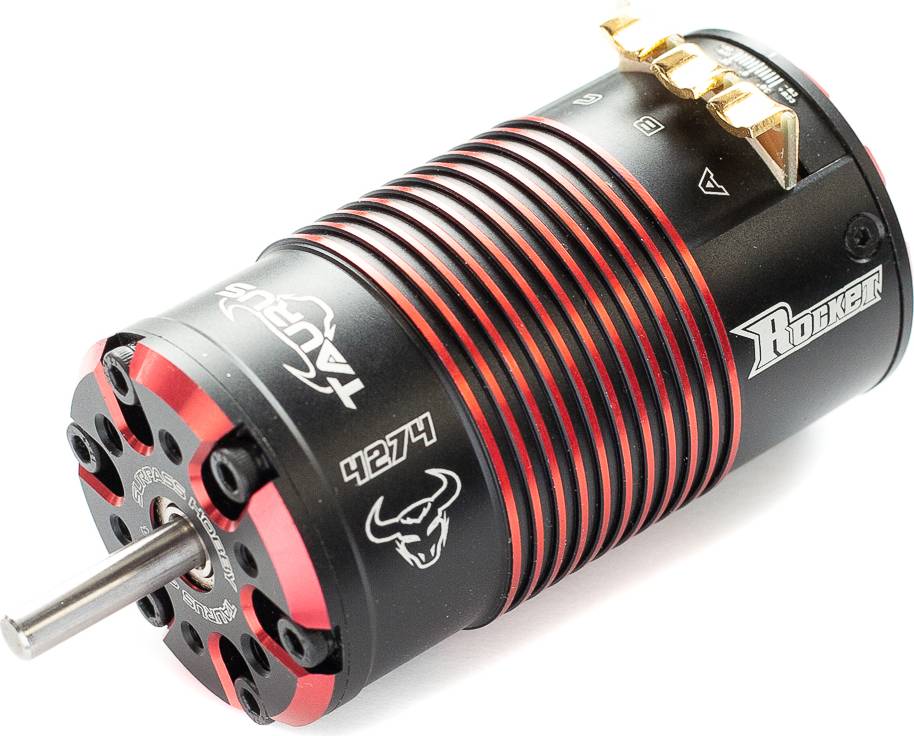

Surpass Taurus 4274 2250kv Sensored 1/8 Brushless Motor 5mm Shaft

Product Info
CSCM42742250
Surpass Taurus 4274 2250kv Sensored 1/8 Brushless Motor 5mm Shaft
By CSC DIRECT
$99.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Electric Car Motors Brushless 1/8
But only from... CSC DIRECT
All items from... CSC DIRECT


 Inventory Status Legend
StockStock availability for on-line ordering
1
$99.99
Warehouse ?
StockStock availability for pick up
1
$99.99
Warehouse ?
1
$99.99
Store - Charlottetown ?
0
$99.99
Store - Edmonton ?
1
$99.99
Store - Mississauga ?
1
$99.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
Brushless
Brushed/Brushless:
Sensored
Sensored/Sensorless:
2250 KV RPM/Volt
Motor Kv:
4
Poles:
42 mm
Can Diameter:
74 mm
Can Length:
5 mm
Shaft Diameter:
18 mm
Shaft Length:
380 g
Weight:
130 A
Max Surge Current:
2800 W
Watts:
22.0 V
Max Voltage:

FEATURES
  • Sensored brushless motor for 1/8 off road
  • 4 Pole 12 slot high-torque motor design
  • CNC machined 6061 T6 billet aluminum heatsink can
  • High purity copper winding maximize efficiency
  • High RPM ABEC5 oversized bearing
  • Universal fitment, M3 and M4 screws can be used
  • Precision balanced rotor for smooth operation and max RPM
  • Super thin 0.2mm stator laminations
  • Removable/replaceable rotor
  • IFMAR, ROAR, BRCA, EFRA Compliant
click image to enlarge

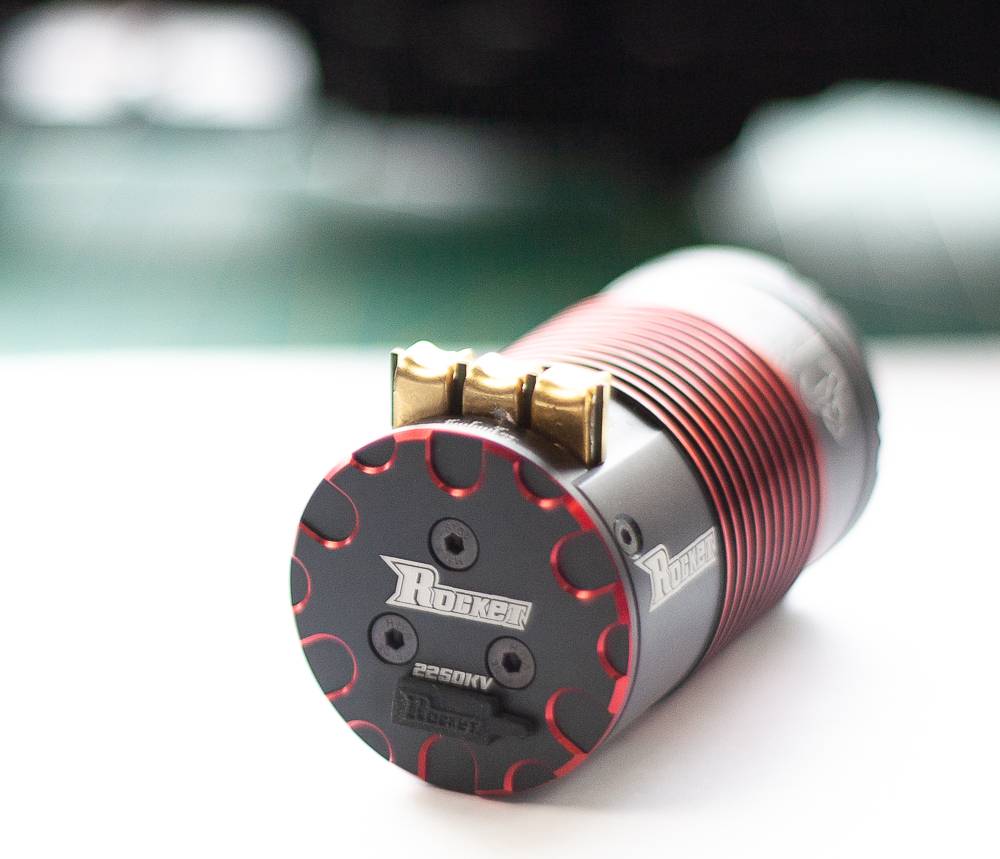

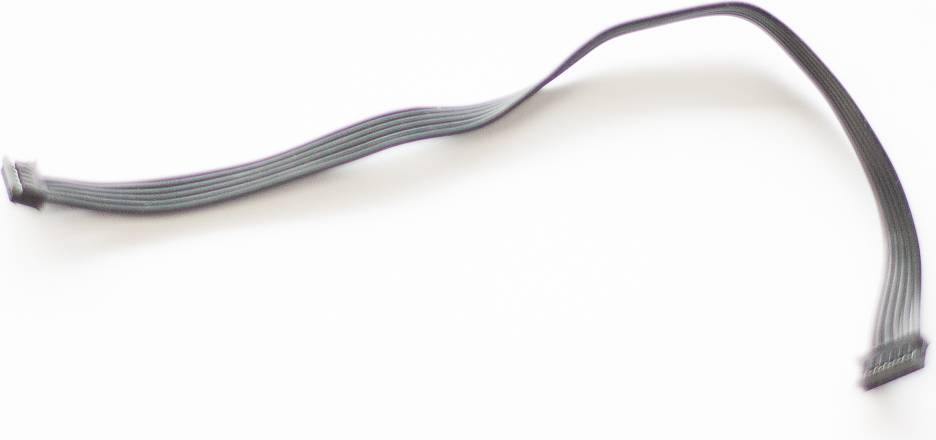

ADDITIONAL PHOTOS

6971750795338 6971750795338
