SPECIFICATIONS
38000 KV RPM/Volt
Motor Kv:
68.7 mm
Can Diameter:
147.5 mm
Can Length:
8 mm
Shaft Diameter:
30 mm
Shaft Length:
12 cells
LiPo Cells:
50.4 V
Max Voltage:
FEATURES
Features:
Running modes include Sensored and an ULTRA-EFFICIENT sensorless mode.
High-strength, high-temperature grade neodymium sintered magnets combined with High-strength stainless steel sleeve wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
Oversized front and rear NMB bearings and vibration dampening system ensure the longest bearing life possible.
Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
Updated modern and sleek design; looks as cool as it performs.

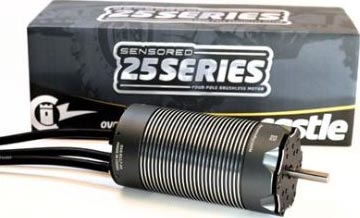

The Castle 2535 520KV is the largest and most powerful motor ever produced by Castle in our 28+ year history. Designed to produce the torque and power for vehicles weighing up to 50lbs and up to 12s LiPo. When paired with the Castle Cobra 5 HV, the 2535 - 520kv can easily push 1/5th and 1/4th vehicles like the Losi 5IVE-T, 5IVE-B, or DBXL-E. It is the perfect upgrade for any 1:5 and 1:4 scale RC hobby vehicles (including gas to electric conversions) weighing up to 50 lbs. It also boasts features in our new V3 motor design, including a larger rear bearing, direct to bullet winding connections, smooth can exterior making water cooling a breeze, and a stainless steel sleeve rotor.
Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of our motor required careful component selection; each verified through internal testing to ensure the HIGHEST EFFICIENCY possible. In the end, the result is a motor with unmatched quality,performance, and reliability. We wouldn’t put our name on anything less.
