This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
FEATURES
Specifications:
Suggested Application: 1/6-1/8 (Up to 18lbs)
Size: 1520 (1650Kv)
Type: Brushless
Voltage: 3-8S LiPo
Connector: 6.5mm Male Bullet
Dimensions: 3.50x1.64in (88.8x41.6mm)
Shaft Diameter: 0.20in (5mm)
Weight: 17.92oz (508g)
Features:
Redesigned rotor and stator assemblies for enhanced magnetic flux
Reduced magnetic cogging for smoother startups and less drag
Kevlar-wrapped rotor and high-purity copper windings for durability
High-temperature neodymium sintered magnets
Backed by Castle Creations' one-year warranty
What's in the Box:
1520 V2 Sensored Brushless Motor
Sensor Cable
Mounting Hardware

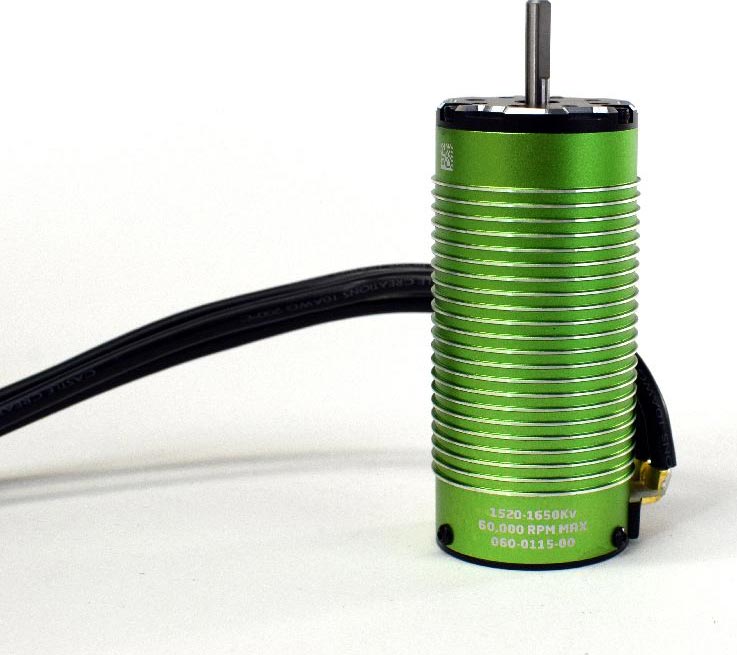

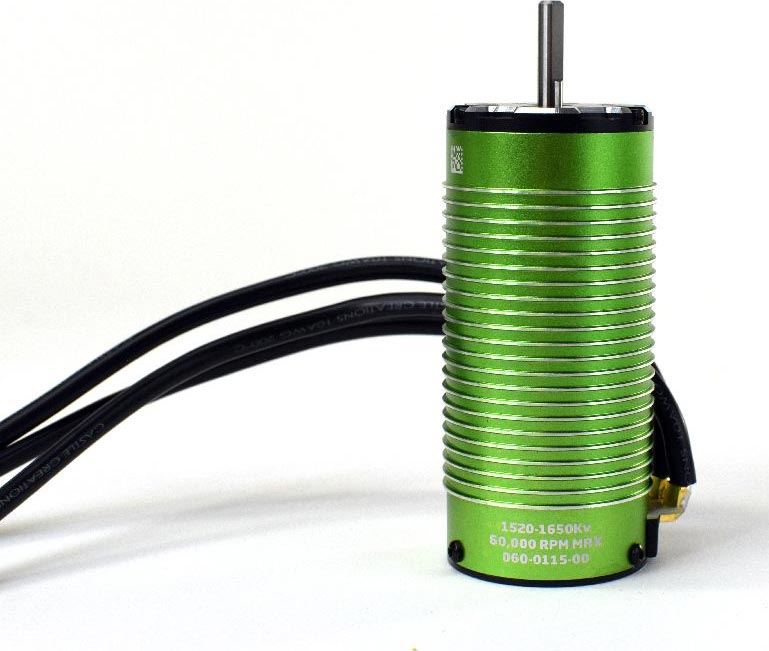

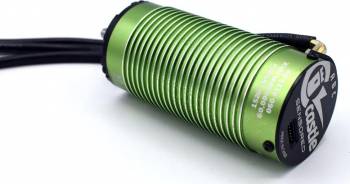

This is the 1520 V2 Sensored 4-Pole Brushless Sensored Motor from Castle Creations. Designed for powerful performance and superior efficiency, this motor features a redesigned rotor and stator for smoother startups, reduced temperatures, and extended run times. Ideal for one-sixth, one-seventh, and one-eighth scale vehicles, it is built to meet the demands of high-performance RC enthusiasts.
