Hydra Cobra 5 HV 12S 50.4V ESC 20A PEAK BEC
![]() |
|
|
|
![]() |
More like this... Boat Electronic Speed Controls (ESC)
But only from... CASTLE CREATIONS
All items from... CASTLE CREATIONS
But only from... CASTLE CREATIONS
All items from... CASTLE CREATIONS
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
No
Sensored:
180 A
Max Continuous Current:
Yes
Water Resistant:
6-12 cells
LiPo Cells:
33.6 V
Max Voltage:
513 g
Weight:
4.72 in
Length:
1.46 in
Width:
2.64 in
Height:
FEATURES
Includes:
- Hydra Cobra 5 HV ESC
- Cobra decals
- Castle Link V4 USB Adapter
- Cobra Quick Start Guide
Features:
- 32-Bit processing power for smoother motor control and improved response time.
- Enhanced Data Logging includes:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- ESC electrical motor timing data.
- Acceleration data via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.
- Additional tuning features include:
- Limp Mode makes return to shore easier when low voltage cutoff is activated.
- Highly adjustable internal BEC (5.0V - 8.5V adjustable in 0.1V increments)
- Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase or the Castle Link 2 App and a B-Link 2 Bluetooth Interface.
- Upgraded current-sensing and thermal protection system actively mitigates the risk of failure in aggressive or high-load setups.

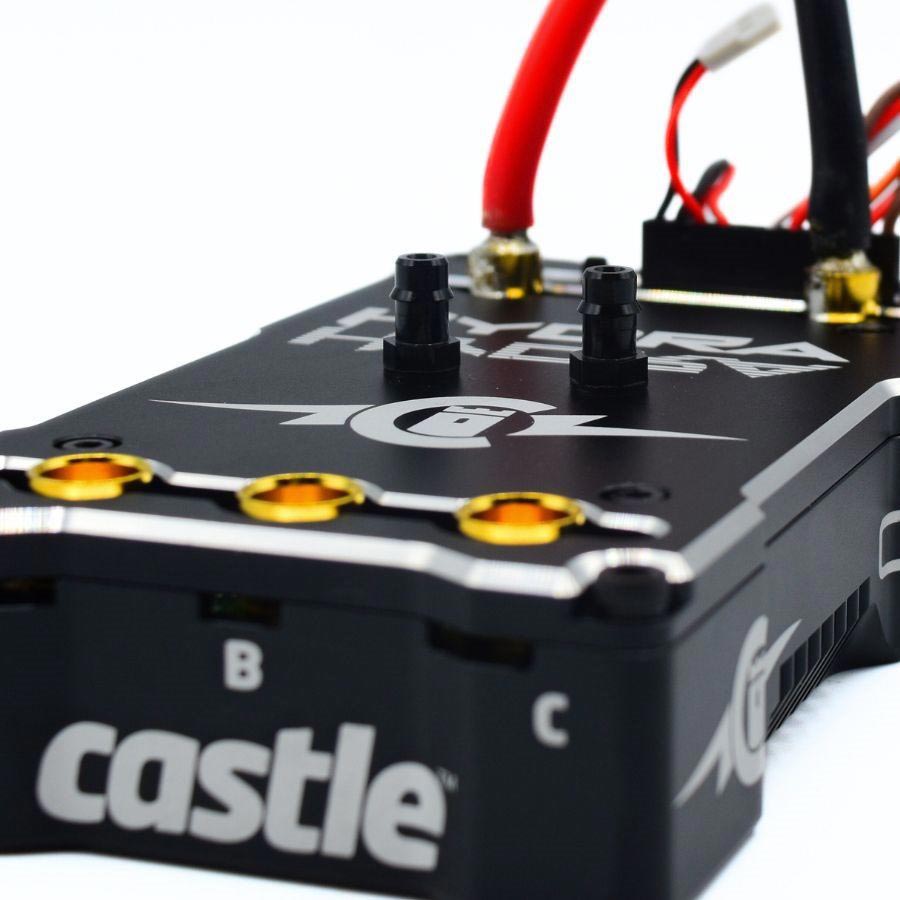

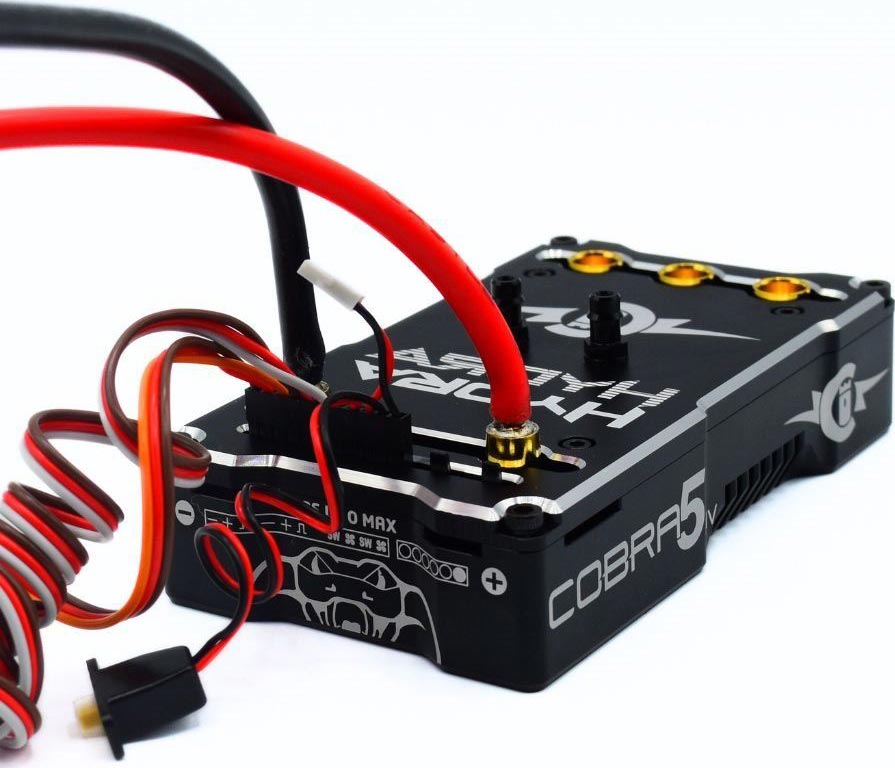

Push your boat to its limits. The Castle Hydra Cobra 5 HV is a next-generation marine ESC designed for RC hobby boats up to 50 inches. Built on the same proven technology as the Cobra 5 HV surface ESC and re-engineered for water, it delivers uncompromising 12S / 50.4 V power, data-rich performance monitoring, and bulletproof protection.
click image to enlarge
ADDITIONAL PHOTOS
|
819326013430 0819326013430
CAS010-0183-00
