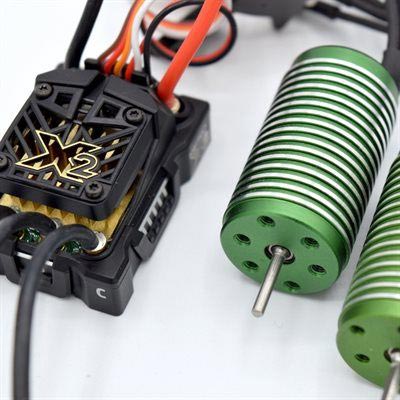

Mamba Micro X2 16.8V WP ESC with 0808-5300KV C
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
More like this... Electric Car Motor Systems
But only from... CASTLE CREATIONS
All items from... CASTLE CREATIONS
But only from... CASTLE CREATIONS
All items from... CASTLE CREATIONS
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
5300 KV RPM/Volt
Motor Kv:
20 mm
Can Diameter:
38 mm
Can Length:
2 mm
Shaft Diameter:
12 mm
Shaft Length:
50 g
Weight:
2 - 3 cells
LiPo Cells:
3.5mm Bullet
Connectors:
FEATURES
The Mamba Micro X2 is a refresh of our popular 1:18 scale Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof and has SENSORED MOTOR SUPPORT (included 0808 motor is sensorless).
The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing).
Application: This is the perfect upgrade for 1:18 scale RC vehicles, up to 3S LiPo and weighing in at up to 2lbs. Vehicles include: Losi Mini-T 2.0, Traxxas LaTrax Rally, Traxxas LaTrax Teton, Axial Yeti Jr.
819326012587 0819326012587
CAS010-0169-02
