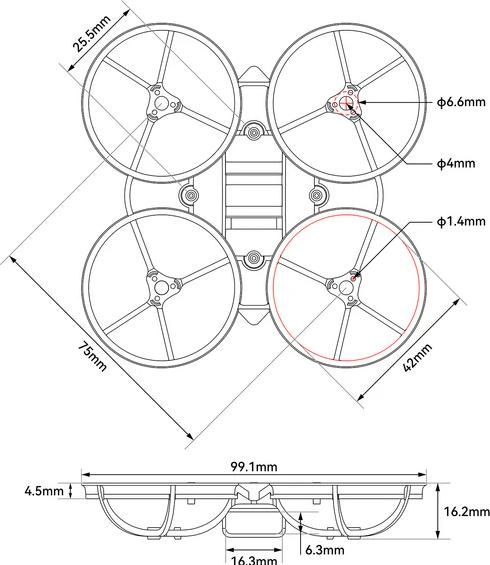

Specifications
- Item: Air75 II Brushless Whoop Frame
- Material: PP
- Weight: 4.00g
- Wheelbase: 75mm
- Motor Mounting: 3-M1.4-6.6mm
- Flight Controller Mounting Hole: 25.5×25.5mm
- Battery Slot Size: 16.3×6.3mm
- Maximum Size: 99.1*99.1*16.2mm

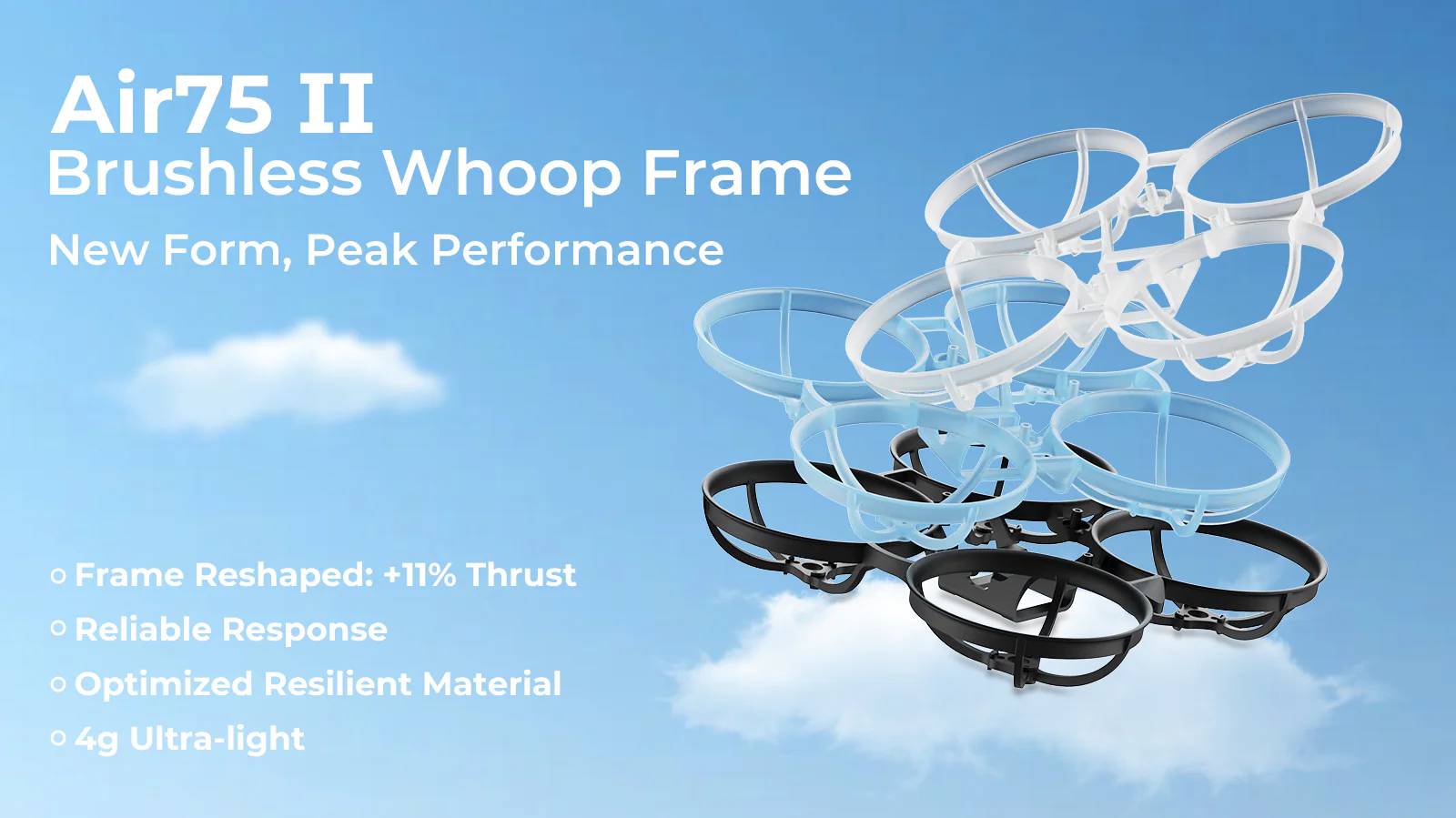

For more than one year, the Air75 Frame defined lightweight agility. Now, forged alongside our global pilot community, the lighter Air75 II Frame (4g) reimagines the form. Our R&D team deconstructed every arm brace, duct geometry, and crash point. The result? A radical yet refined frame: 4 arm braces replace 6, paired with optimized ducts and connecting structure. This shaves frame amplitude while adding 11% thrust and delivering near-perfect PID response. Beneath the form lies resilience. An optimized PP matrix absorbs brutal impacts from crashes. Refined details – screw protection structure, enlarged FC holes, and a lowered duct profile – ensure dominance. All engineered for relentless, worry-free flying.

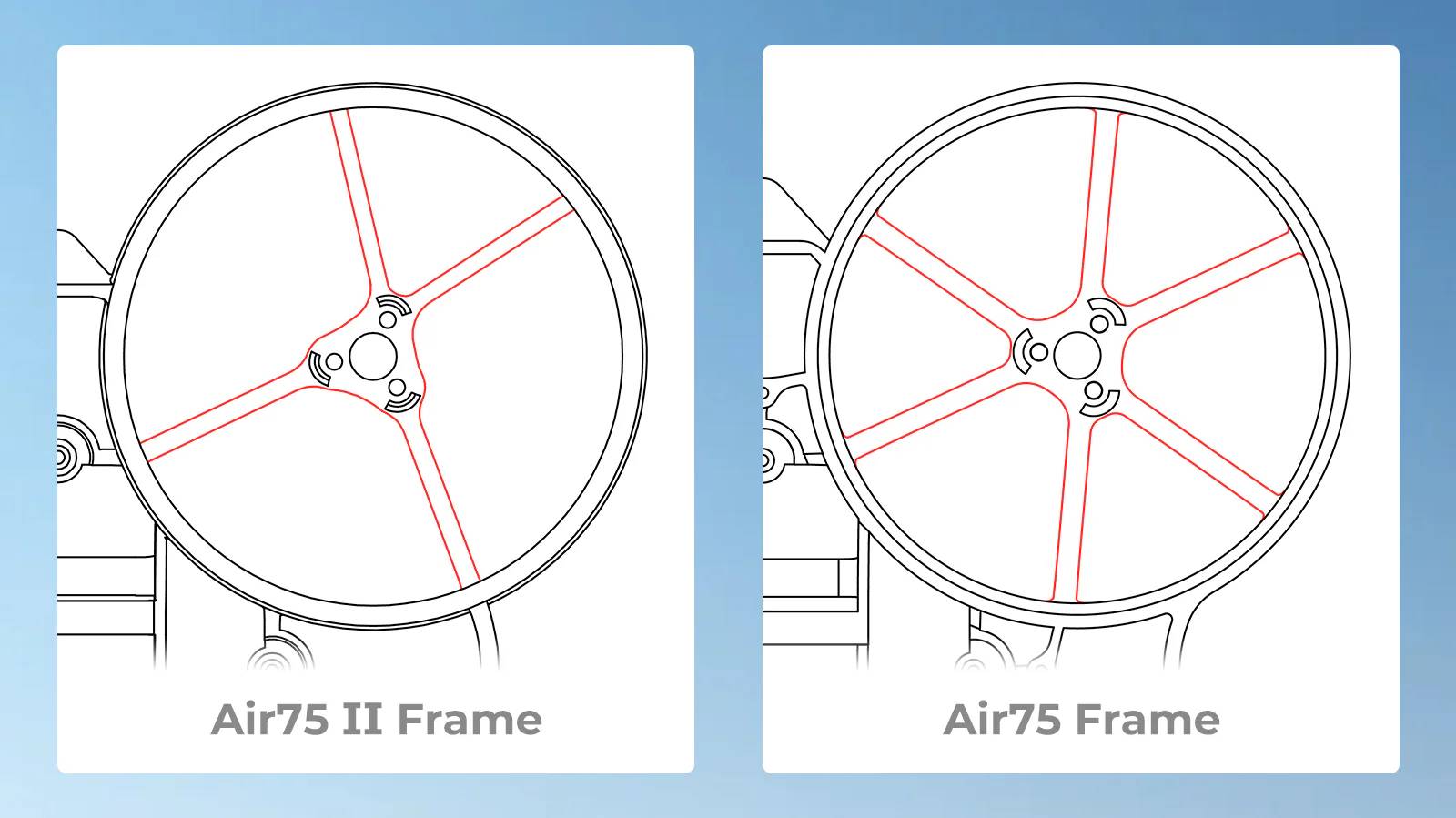

- Arm braces reduced from 6 to 4 + optimized duct geometry increase 11% thrust—while maintaining uncompromising durability.
- Optimized connecting braces reduce frame amplitude and achieve ideal PID step response.
- Optimized PP blend makes it crash ready.
- Pilot-Focused Details: Motor fixed slots, motor screw protection structure, enlarged FC mounting holes (25.5 × 25.5mm), and lowered duct profile.
- At just 4g, the Air75 II achieves a 10% weight reduction compared to Gen 1.
Reliable Flight
After dozens of structural refinements, our final connecting arms design effectively reduce frame vibration. Paired with Feedforward tuning, this achieves a near-perfect PID step response – translating to crisp maneuvers and buttery-smooth freestyle flow.

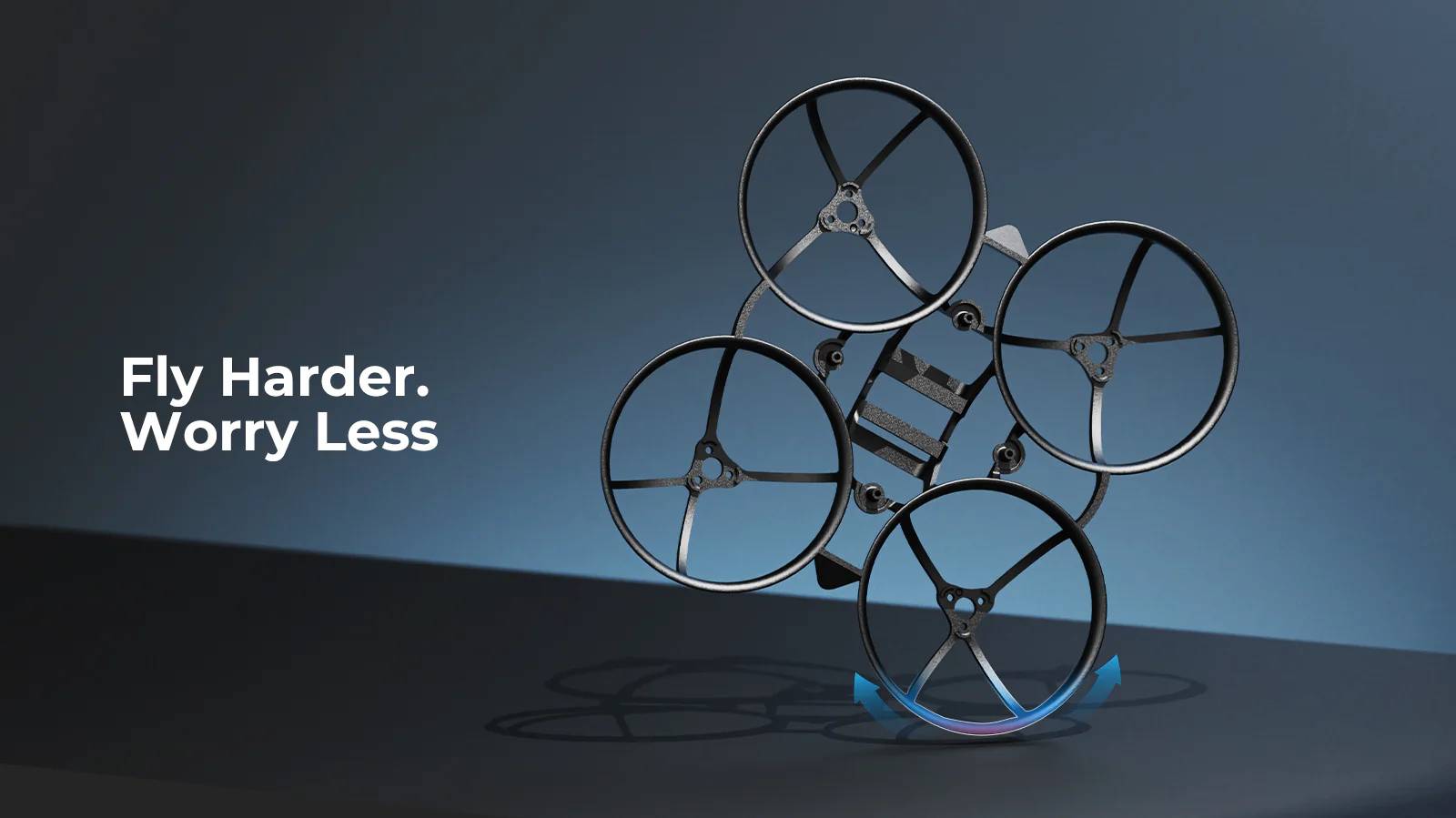

Optimized Resilient Material
Our battle-tested PP blend laughs off concrete kisses and tree bites. Survive your most violent freestyle crashes – and fly home.
Details Matter
Every gram perfected: Retained motor fixed slots ensure precise alignment, new motor screw protection structures deflect crash impacts, and enlarged 1.2mm FC holes fit 1.4mm screws effortlessly. Where pilot priorities meet engineering obsession.
