Effortless HD VTX Mounting: The integrated injection-molded HD VTX mounting bracket eliminates the need for adjusting screw tightness, ensuring a hassle-free installation experience. The original transmission antenna can be directly mounted on the frame kit.
Durable Construction with Crash-Proof PA12 Duct: Constructed with a crash-proof PA12 thickened whoop duct, this frame kit's reinforced cross-section design enhances strength and blast resistance. It aligns seamlessly with an enhanced power system, utilizing aerodynamics principles.
Lens Protection and Filter Compatibility: The camera side panel and 4-point fixation design effectively safeguard the lens while allowing easy installation of ND filters. This eliminates concerns about angle deviation after intense flights.
Versatile Battery Placement: The open-ended battery strap slot, along with side-limitation slots, ensures secure and stable battery placement. This accommodates a wide range of batteries, including the option for DIY enthusiasts to utilize 2~4S batteries.

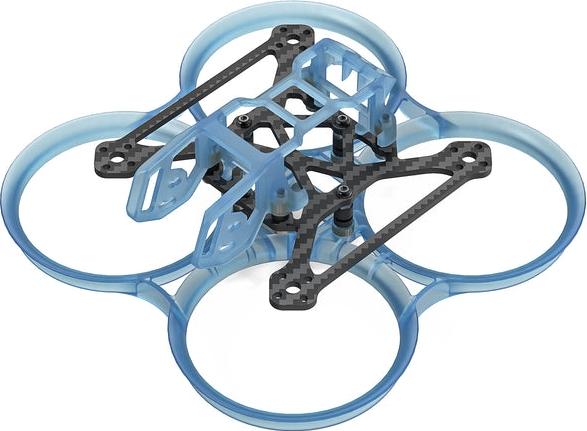

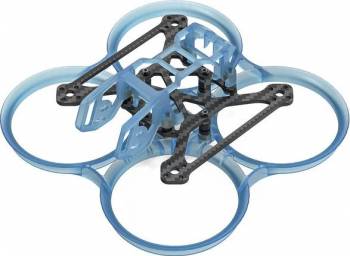

The Pavo20 Brushless Whoop Frame is specifically crafted for a 2-inch DJI O3 cinewhoop weighing under 150g. It is compatible with Caddx Vista and RunCam Link and has undergone a comprehensive redesign for precise protection. Constructed from crash-proof PA12 material, the frame incorporates a reinforced cross-section whoop duct designed in line with aerodynamics principles, seamlessly complementing an upgraded 3S power system. This combination ensures exceptional thrust, surpassing all expectations. It stands out as the top choice for pilots seeking to elevate their DJI O3 cinewhoop experience to unprecedented heights.
Pavo20 supports various types of HD VTX. DJI O3 Air Unit supports up to 1080P using dual-band transmission technology for better signal stability. The Caddx Vista supports up to 720P with low latency and superior image quality performance. The RunCam Link is compatible with popular FPV systems like formers, providing versatile solutions for pilots. The customized HD VTX mounting bracket has a split design, making it effortless to install for pilots DIY, and explore more possibilities while ensuring HD image quality.
Specification
Item: Pavo20 Brushless Whoop Frame
Wheelbase: 90mm
Material: PA12/PP
Weight: 26.7g(With HD VTX Bracket), 13.8g(Whoop Duct), 4.1g(Only HD VTX Bracket)
Color: Black/Blue/Transparent Grey
Top Plate Thickness: 2mm
Camera: 19mm/20mm
Camera Filter: Support
FC Mount: 26×26mm, suitable for conventional whoop FC
Motor Mount: 4-M2-φ9mm
Battery Slot Width: 20mm
