P1 Air Unit HD VTX
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|

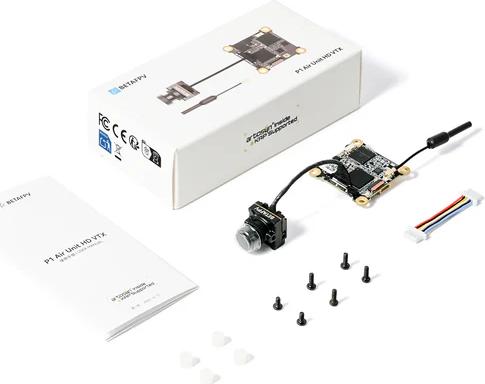

Includes
- 1 * P1 Air Unit HD VTX
- 1 * 6Pin Cable
- 1 * Accessories Package (4*Shock-absorbing Balls, 2*M2-4 Screws, 4*M2-6 Screws)
- 1 * User Manual
The P1 Air Unit HD VTX, part of the ArtLynk protocol ecosystem, delivers a stunning 1080p@60fps live feed with approximately 60ms latency and an impressive transmission range of over 5km. Its 1/2.9” CMOS sensor and wide 170° field of view provide an incredibly immersive and detailed perspective, making every flight intuitive and responsive. Designed for reliability in diverse conditions, the system maintains a stable, interference-resistant connection—whether weaving through dense forests or navigating complex urban environments.
Bullet Points
- ArtLynk Protocol: A low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX.
- Lightweight & Affordable HD: Weighs just 6.8g, offering a compact and affordable HD VTX solution.
- Reliable Video Transmission: Delivers smooth video with ~60ms latency and over 5km range.
- Wide?Angle 1080p Clarity: 1/2.9” CMOS sensor and 170° FOV for a crisp, immersive live view.
- Plug?and?Play Compatibility: Standard 6?pin port works seamlessly with Betaflight and BETAFPV flight controllers.
Reliable Video Transmission
The P1 Air Unit delivers reliable, clear video transmission with a max power output of 200mW and over 5km range*. With approximately 60ms low latency, enjoy stable, static-free video that lets you fly farther and explore with confidence. Standby Mode automatically adjusts power based on the distance between your goggles and the drone, keeping your live view connected even in a crash.
Wide?Angle 1080p Clarity
Equipped with a 1/2.9” CMOS sensor and a wide 170° field of view, the camera captures vibrant, detailed footage even in varied lighting. See more of your surroundings with clarity that matches the high?definition transmission—making every flight more immersive and responsive.
Lightweight & Affordable HD

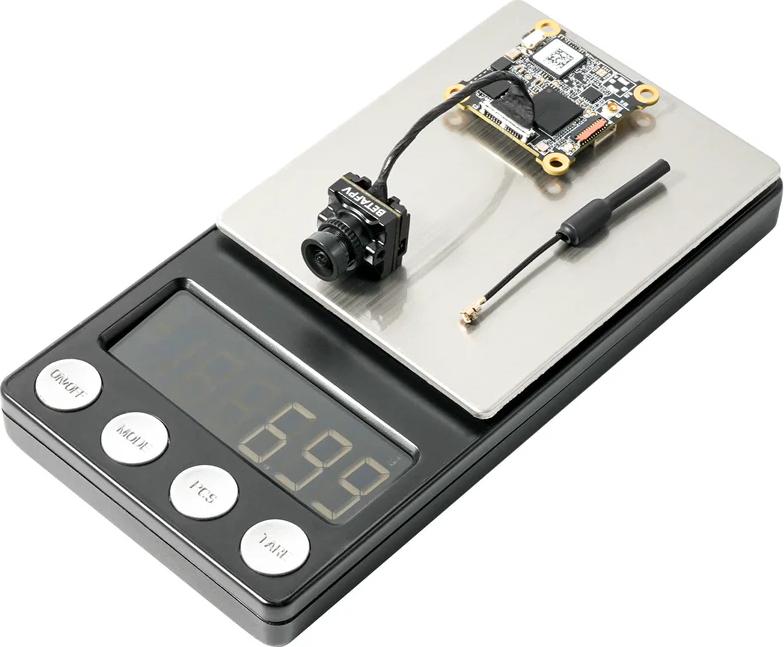

At just 6.5g (antenna excluded), the P1 Air Unit delivers a compact and budget?friendly HD video solution—so you can build your perfect HD whoop without compromise.
Wide Compatibility

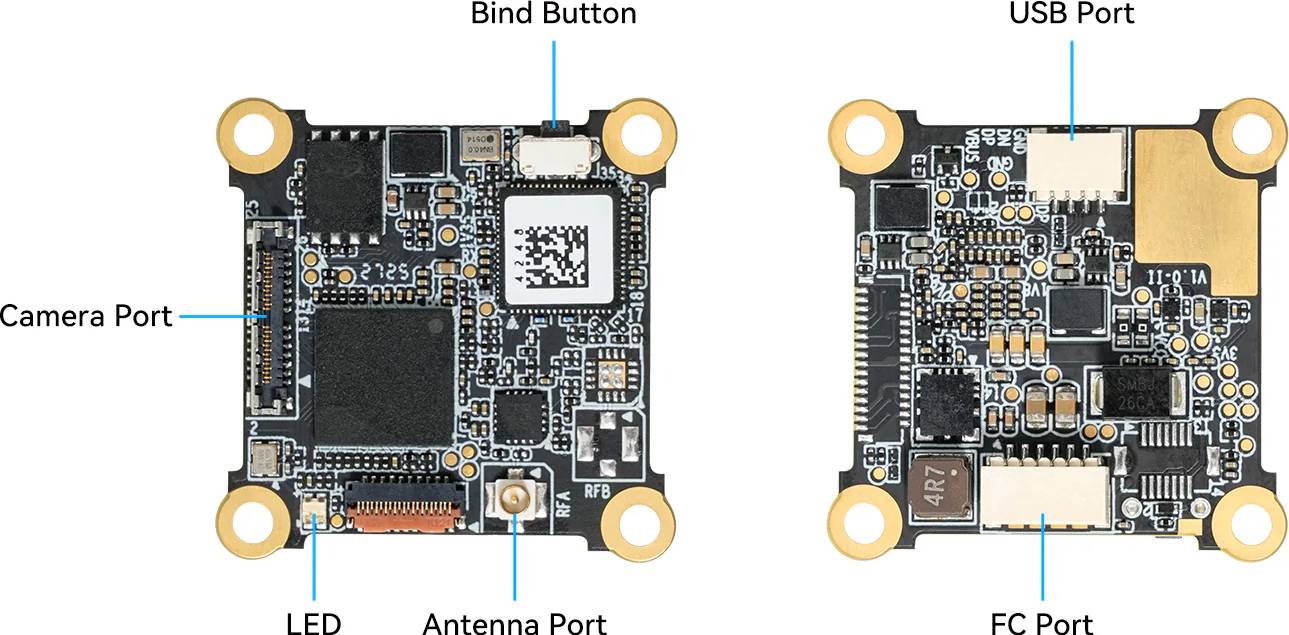

Featuring a standard SH1.0 6-pin port and MSP communication protocol for OSD, the P1 Air Unit seamlessly supports Betaflight and BETAFPV flight controllers.
Know More About ArtLynk Protocol
P1 Air Unit HD VTX is a part of the ArtLynk protocol, which is a low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX. ArtLynk protocol enables real-time HD video at about 60ms latency from glass to glass, which is crucial for smooth flight control and high-quality FPV (First Person View). Here are the key features you may want to know.
- Artosyn Inside & KAP Supported: ArtLynk protocol uses the Artosyn's latest AR803X chipset, with core technology support provided by KAP (KAP company provides core technology support or product solution to all FPV companies and ensures compatibility for various FPV products using Artosyn chipsets).
- Collaborative and Open Community: ArtLynk protocol is a collaborative FPV ecosystem not belonging to ONLY one company. Many FPV enterprises and teams would design and produce their own products based on the ArtLynk protocol, ensuring broad compatibility and fostering community.
The ArtLynk protocol supports VR04 HD goggles, Aquila20 HD, Meteor75 Pro P1 whoops, and more—letting you customize your own build or simply bind and fly.
|
|
|
|
|
|
